Produktbeskrivning

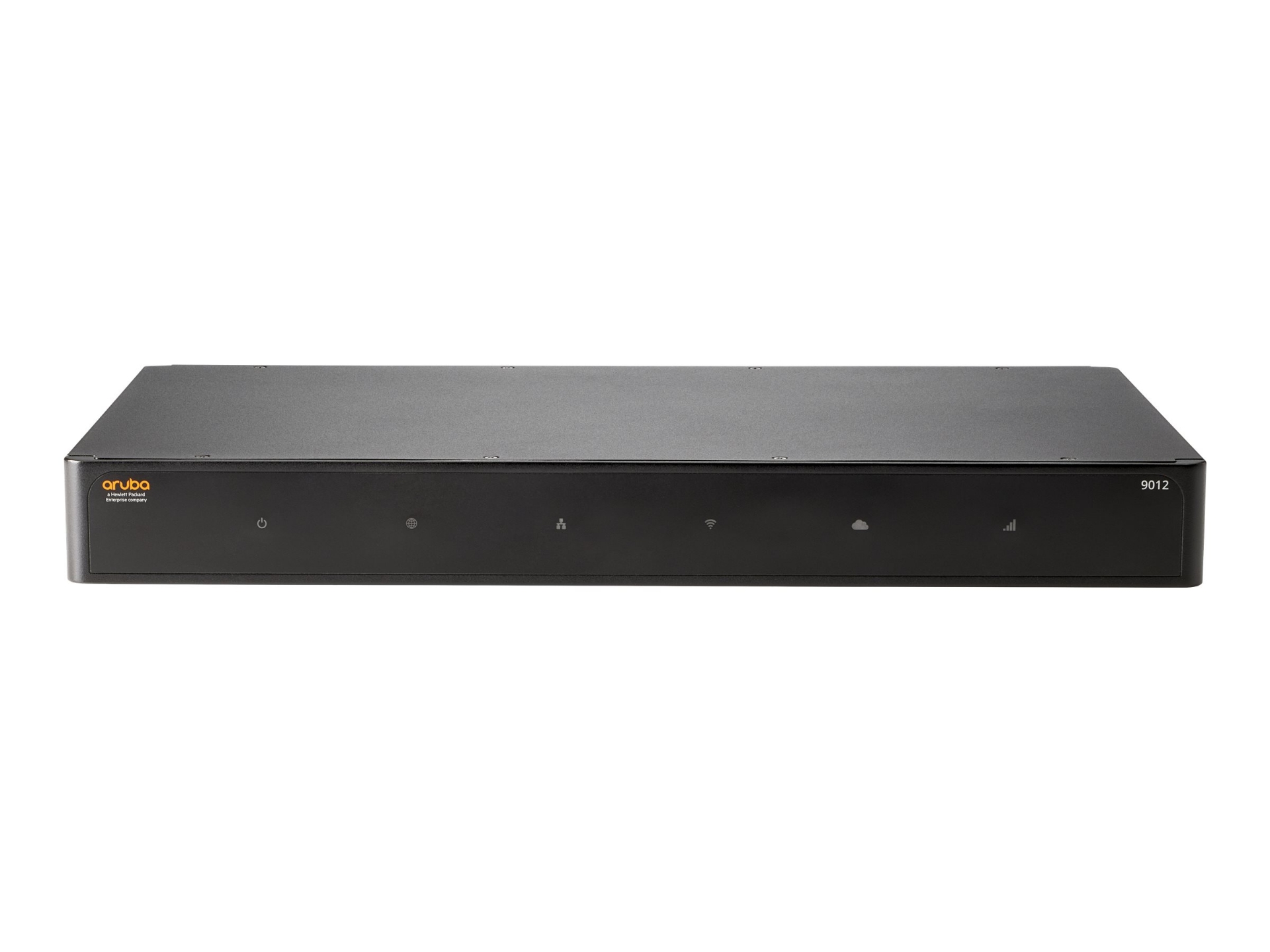

Aruba 9012 gateway provides high-performance networking, SD-WAN and security functionality in compact and cost-effective form factors. Ideally suited for branch and small campus networks, the Aruba 9012 gateway serves a key role within Aruba's SD-Branch solution, which unifies WLAN, LAN, SD-WAN and security for distributed enterprises.

The Aruba 9012 gateway can be easily configured and managed using Aruba Central, a cloud-based network operations, assurance and security platform. Onsite deployment is accomplished with a simple mobile installer application.



Egenskaper

High performance and reliability
For distributed enterprises with increasing performance and bandwidth needs, the Aruba 9012 gateway is designed with scale and flexibility, and equipped with plenty of horsepower at a competitive price-point. The 9000 Series provides connectivity for many users or client devices. For enhanced resiliency and high availability, multiple 9000 Series can be clustered together at each branch.

IoT and integration ready
The Aruba 9012 includes flexible connectivity options, with many Ethernet ports that can be used as access/WAN uplinks, a USB 3.0 port for cellular connectivity, and an IoT radio that supports Bluetooth 5, Zigbee, and Near Field Communication (NFC) wireless protocols. The gateway also uses integrated device profiling to improve client visibility, and works with Aruba Central, Aruba ClearPass Policy Manager or ClearPass Device Insight to provide advanced user, device and IoT policy management and insights.

SD-WAN deployment
For organizations that are now managing multiple WAN connections, 9000 Series Gateways can be connected to the Aruba SD-WAN fabric right out of the box. SD-WAN is a rich WAN management solution that is used to simplify management of traffic entering and exiting branch sites. Role-based intrusion detection and prevention (IDS/IPS), Dynamic Segmentation, and stateful firewall deliver integrated security requirements.

Branch and campus deployment
9000 Series Gateways can also be re-purposed as Mobility Controllers starting with ArubaOS 8.5 software to provide WLAN and LAN services such as Dynamic Segmentation, stateful firewall and llve upgrades.

Policy enforcement firewall
The Aruba 9012 includes a Layer 4-7 stateful firewall with PEF to deliver a consistent user, device, and application awareness across WLAN, LAN, and WAN. When deployed alongside Aruba ClearPass Policy Manager, policies are automatically enforced to simplify SSID, VLAN and policy management. This is the foundation of Dynamic Segmentation, and is included within the Foundation, Foundation Base Capacity, and PEF licenses.

Threat defense with IDS/IPS
To improve security against a growing attack surface, gateways deployed in SD-WAN mode add role and identity-based intrusion detection and prevention capabilities (IDS/IPS) on top of existing security features. The threat defense function is further augmented with one-click integration with third-party cloud-based security solutions.

Application visibility and control
Deep Packet Inspection (DPI) technology, which is a component of PEF, consistently evaluates and optimizes performance and usage policies for many applications. This ensures high Quality of Service (QoS) - even for encrypted traffic.

Simple to use, mobile provisioning
Allows on-site personnel to use a mobile app to onboard gateways. A central IT team can verify device location, licenses, and status with no additional steps required.

Office365, teams and Skype for business
The Aruba integration with Microsoft enables unique application insight that detects Office365, Teams and Skype for Business traffic and then prioritizes them over less critical applications. Aruba Central also includes specific call quality heuristics for additional visibility.



Teknisk specifikation

Typ av enhet	Gateway
Bredd	39.5 cm
Djup	26 cm
Höjd	4.37 cm
Vikt	3.42 kg

Formfaktor	Kan monteras i rack
Antal portar	12
Anslutningsteknik	Trådlös, kabelansluten
Datalänkprotokoll	Gigabit Ethernet, ZigBee, NFC, Bluetooth 5.0
Molnhanterad	Ja
Prestanda	Brandväggens genomströmningshastighet: 4 Gbit/s
Kapacitet	Antal enheter som stöds: 2048 Aktiva sessioner genom brandväggen: 64000 Maximalt antal åtkomstpunkter: 32
Statusindikatorer	Status, WAN, LAN
Funktioner	Brandväggsskydd, ingående paketinspektion (DPI), Quality of Service (QoS), fläktlös, gatewayläge, support för SD-WAN

Kompatibel med Internet of Things (IoT)	Ja
Kommunikationsteknologi	Bluetooth, NFC, Zigbee

Gränssnitt	6 x Ethernet 1000 - RJ-45 2 x USB 3.0 1 x konsol - RJ-45/micro-USB 6 x 1000Base-T (PoE+)

Standarder som följs	EN 61000-3-2, NOM, EN 61000-3-3, EN55024, ICES-003 Class B, CCC, FCC Part 15, UL 60950-1, ANATEL, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, VCCI Class B, NCC, EN 301 489-1, CAN/CSA C22.2 No. 60950-1 Second Edition, EN 55032 Class B, CNS 13438 Class B, KN32 Class B, EN 60950:2005, CISPR 32 Class B, EN 301 489-17, RED 2014/53/EU
Typ av prissättning	BTO

Stöd för PoE (Power Over Ethernet)	PoE+
Nätspänning	AC 120/230 V

Service och support	Begränsad garanti - material och tillverkning - 1 år

Min temperatur vid drift	0 °C
Max temperatur vid drift	40 °C
Luftfuktighet vid drift	10 - 90 % (icke-kondenserade)
