With an increasing number of mobile and Internet of Things (IoT) devices reliant on wireless access, networks must be capable of accommodating a diverse mixture of device types, applications and services.

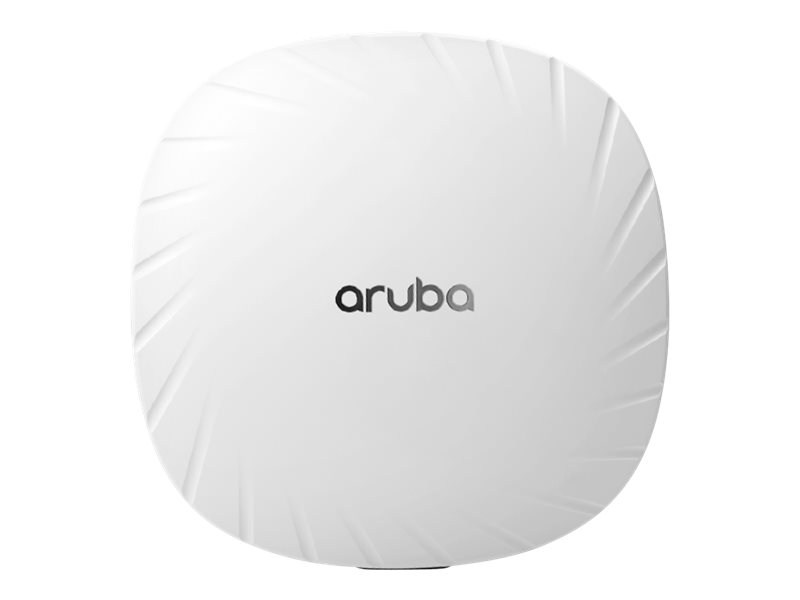

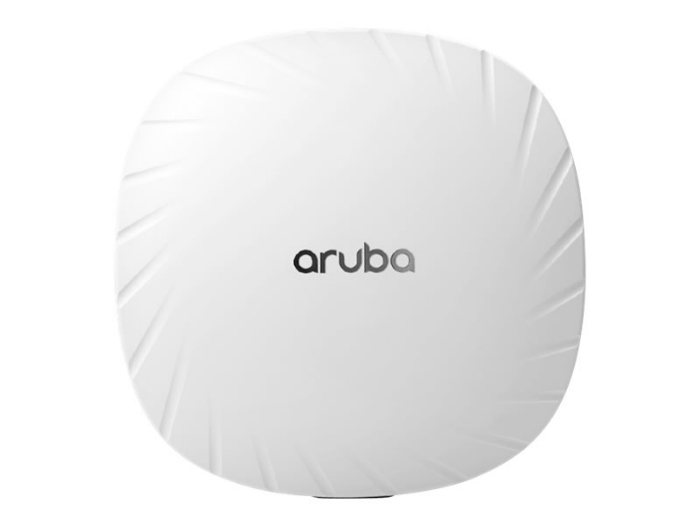

The Aruba 510 series campus access points with 802.11ax technology are designed to deliver high-performance access for mobile and (IOT) devices in environments where density is an issue. The 510 series uses 802.11ax features to efficiently and simultaneously serve multiple clients and traffic types in dense environments, increasing data rates for both individual device and overall system.
Nätverksfunktioner
| Formfaktor | I taket |
|---|
| Anslutningsteknik | Trådlös |
|---|
| Dataöverföringshastighet | 4.8 Gbps |
|---|
| Linjekodningsformat | CCK, 64 QAM, 256 QAM, BPSK, QPSK, 16 QAM, OFDM, 1024 QAM, OFDMA |
|---|
| Datalänkprotokoll | IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, Bluetooth 5.0, IEEE 802.11ax (Wi-Fi 6) |
|---|
| Metod för spridningsspektrum | OFDM, DSSS |
|---|
| Frekvensband | 2.4 GHz, 5 GHz |
|---|
| Prestanda | Maximal datahastighet (2,4 GHz): 575 Mbps
Maximal datahastighet (5 GHz): 4,8 Gbit/s
Aggregerad bandbredd: 5,4 Gbps |
|---|
| Kapacitet | Trådlösa klienter per trådlös radio: 256
OFDMA-enheter: 16
BSSID:er per radio: 16 |
|---|
| Statusindikatorer | System, status |
|---|
| Funktioner | Trusted Platform Module (TPM), LACP-support, Adaptive Radio Management (ARM), Maximum Ratio Combining (MRC), Low Density Parity Check (LDPC), redo för strålformssändning (TxBF), Direct Sequence Spread Spectrum (DSSS), Cyclic Delay Diversity (CDD), Space Time Blocking Code (STBC), Advanced Cellular Coexistence (ACC), ClientMatch, cyklisk växlingsmångfald (CSD), AppRF-teknik, MU-MIMO-teknik, paketaggregering A-MPDU, paketaggregering A-MSDU, Air Monitor (AM), Intelligent Power Monitoring (IPM), Dynamic Frequency Selection (DFS), Secure Core Technology (SCT), stöd för hög genomströmning (HT), 4x4 MU-MIMO-teknologi, LED av-läge, Orthogonal Frequency Division Multiplexing (OFDM), Aruba AirMatch, spektrumanalysator, stöd för mycket hög genomströmning (VHT) support, Orthogonal Frequency Division Multiple Access (OFDMA), enhetligt AP-stöd, anpassat djupsömnläge, högeffektiv support (HE), målväntetid (TWT) |
|---|
| Krypteringsalgoritm | WPA, WPA2, WPA3 |
|---|
| Standarder som följs | IEEE 802.11b, IEEE 802.11a, IEEE 802.3af, IEEE 802.11g, IEEE 802.11n, IEEE 802.3at, IEEE 802.11ac, IEEE 802.3bz, IEEE 802.3bt, IEEE 802.11ax |
|---|
