Produktbeskrivning

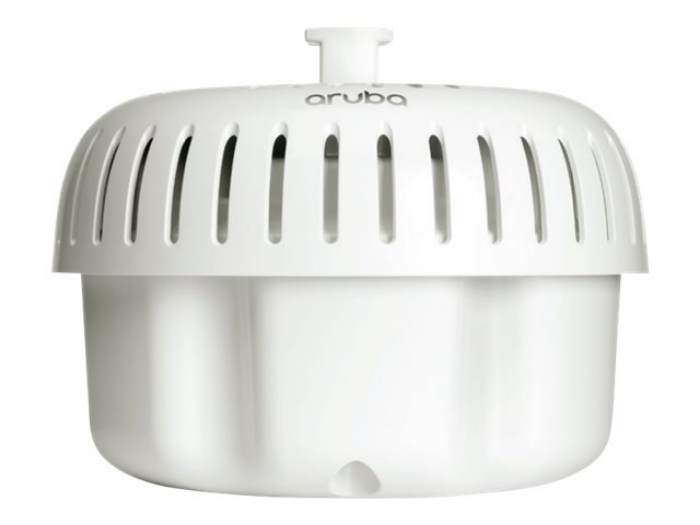

The 570EX delivers advanced MU-MIMO capability, Aruba ClientMatch and integrated Bluetooth to enable Aruba location services. Purpose-built to survive in the harsh industrial outdoor environments, 570EX Series APs withstand exposure to extreme high and low temperatures, persistent moisture and precipitation, and are fully sealed to keep out airborne contaminants. All electrical interfaces include outstanding surge protection. Aruba Wi-Fi 6 access points provide high-performance connectivity in dense mobile and IoT environments. The 570EX Series APs deliver the speed and reliability needed for demanding environments.



Egenskaper

Incredible efficiency
The 570EX Series APs are designed to optimize user experience by maximizing Wi-Fi efficiency and dramatically reducing airtime contention between clients.

Advantages of OFDMA
This capability allows Aruba Wi-Fi 6 APs to handle multiple Wi-Fi 6 enabled clients simultaneously on a single radio. Channel utilization is optimized per transaction by matching allocated bandwidth in a channel to the offered user load. These subdivisions of the channel are referred to as Resource Units (RUs).

Multi-User MIMO
The 570EX Series APs support downlink MU-MIMO similar to Wi-Fi 5 (802.11ac Wave 2) APs. With the introduction OFDMA in Wi-Fi 6, the overhead for this capability is reduced and MU-MIMO effectiveness is substantially improved for large client counts.

Wi-Fi 6 and MU-MIMO aware client optimization
Aruba's AI-powered ClientMatch technology ensures that all clients are attached to their serving Access Point. Session metrics, network metrics, applications and client type are used to identify and maintain great connection.

Advanced Cellular Coexistence (ACC)
The ACC feature uses built-in filtering to automatically minimize the impact of interference of high-power cellular base stations, in building distributed antenna systems as well as small cell and femtocell equipment.

Intelligent Power Monitoring (IPM)
Aruba APs continuously monitor and report hardware energy consumption. APs can be configured to enable or disable capabilities based on the available PoE power - ideal when wired switches have exhausted their power budget.



Teknisk specifikation

Typ av enhet	Trådlös åtkomstpunkt
Robust design	Utomhus
Bredd	24 cm
Djup	24 cm
Höjd	27 cm
Vikt	2.5 kg

Formfaktor	Extern
Anslutningsteknik	Trådlös
Linjekodningsformat	CCK, 64 QAM, 256 QAM, BPSK, QPSK, 16 QAM, 1024 QAM, OFDMA
Datalänkprotokoll	IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, ZigBee, IEEE 802.11ac Wave 2, Bluetooth 5.0, IEEE 802.11ax (Wi-Fi 6)
Metod för spridningsspektrum	DSSS, OFDMA
Frekvensband	2.4 GHz, 5 GHz
Kapacitet	Trådlösa klienter per trådlös radio: 512
Statusindikatorer	System, status
Funktioner	Trusted Platform Module (TPM), Maximum Ratio Combining (MRC), Low Density Parity Check (LDPC), TxBF-förberedd (Transmit Beam-forming), Direct Sequence Spread Spectrum (DSSS), Cyclic Delay Diversity (CDD), Space Time Blocking Code (STBC), Advanced Cellular Coexistence (ACC), ClientMatch, CSD (Cyclic Shift Diversity), MU-MIMO-teknik, fjärranvänt VPN-tunnelläge, Intelligent Power Monitoring (IPM), 4x4 MU-MIMO-teknologi, Orthogonal Frequency Division Multiple Access (OFDMA), Target Wait Time (TWT)
Krypteringsalgoritm	WPA3-Enhanced Open, WPA2-MPSK
Standarder som följs	IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac Wave 2, IEEE 802.3bz, IEEE 802.11ax, Wi-Fi CERTIFIED 6

Antenn	Inbyggd
Antal antenner	2
Riktning	Rundstrålande

Kompatibel med Internet of Things (IoT)	Ja
Kommunikationsteknologi	Bluetooth, Zigbee

Gränssnitt	1 x HPE Smart Rate - RJ-45 1 x 1000Base-T - RJ-45 1 x konsol - USB-C

Standarder som följs	FCC, EN 60601-1-2, IP67, IP66, EN 60601-1-1, HAZLOC, EMC 2014/30/EU, CE/EMC, ISED, IEC/EN/UL 60950, ETSI 300 019-2-4, RED 2014/53/EU

Service och support	Begränsad garanti - livstid

Min temperatur vid drift	-40 °C
Max temperatur vid drift	65 °C
Luftfuktighet vid drift	5 - 93 % (icke-kondenserande)
