Produktbeskrivning

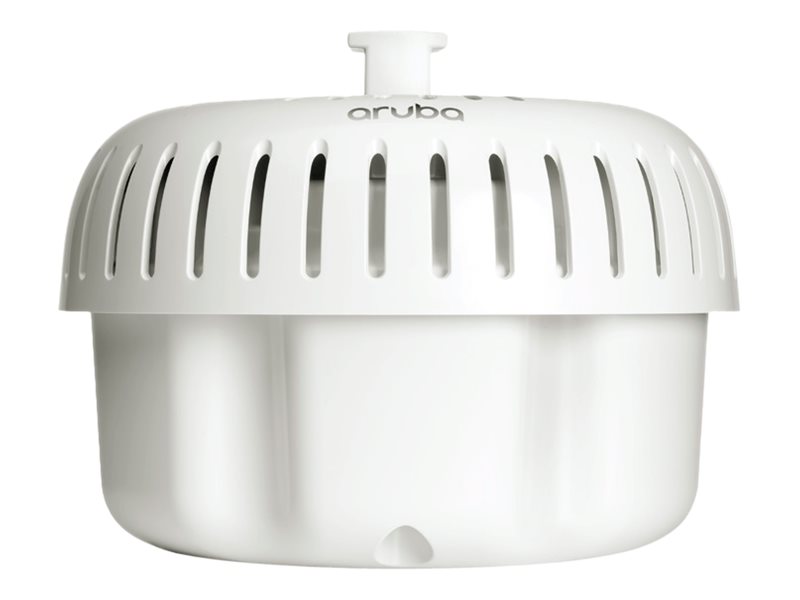

In outdoor and environment-challenging locations such as oil rigs, mining facilities, and industrial plants, networks need to be protected from extreme temperatures, flammable gases or vapors, and dust concentrations. The 570EX series access point delivers reliable Wi-Fi 6 performance to the extreme environments. The 570EX delivers 4x4:4SS MU-MIMO capability, Aruba ClientMatch and integrated Bluetooth to enable Aruba location services. Purpose-built to survive in the harsher industrial outdoor environments, 570EX series AP withstands exposure to extreme high and low temperatures, persistent moisture and precipitation, and is fully sealed to keep out airborne contaminants. The electrical interface includes advanced surge protection. Aruba Wi-Fi 6 access point provides high-performance connectivity in dense mobile and IoT environments. The 570EX series AP delivers the speed and reliability needed for demanding environments.



Egenskaper

Incredible efficiency
The 570EX series AP is designed to optimize user experience by maximizing Wi-Fi efficiency and dramatically reducing airtime contention between clients.

Advantages of OFDMA
This capability allows Aruba Wi-Fi 6 AP to handle multiple Wi-Fi 6 enabled clients simultaneously on a single radio. Channel utilization is optimized per transaction by matching allocated bandwidth in a channel to the offered user load. These sub divisions of the channel are referred to as resource units (RUs).

Multi-user MIMO (MU-MIMO)
The 570EX series AP supports downlink MU-MIMO. With the introduction OFDMA in Wi-Fi 6, the overhead for this capability is reduced and MU-MIMO effectiveness is substantially improved for large client counts.

Wi-Fi 6 and MU-MIMO aware client optimization
Aruba's patented AI-powered ClientMatch technology ensures that all clients are attached to better access point. Session metrics, network metrics, applications and client type are used to identify and maintain better connection.

Advanced Cellular Coexistence (ACC)
The ACC feature uses built-in filtering to automatically minimize the impact of interference of high-power cellular base stations, in building distributed antenna systems as well as small-cell and femtocell equipment.

Intelligent Power Monitoring (IPM)
Aruba AP continuously monitors and reports hardware energy consumption. AP can be configured to enable or disable capabilities based on the available PoE power.

Target Wake Time (TWT)
Ideal for IoT solutions that communicate infrequently, this Wi-Fi 6 capability allows IoT devices to use 802.11ax protocol. TWT coordinates with client devices to allow them to sleep for extended periods and use shorter wake times to communicate before returning to sleep. This substantially extends the useful operating life of Wi-Fi 6 based battery-powered sensors.

WPA3 and Enhanced Open
With the introduction of WPA3 and Enhanced Open, a Wi-Fi 6 client will never send unencrypted traffic over the air. Even with an open authenticated network, Enhanced Open still provides strong encryption over the air. In all Wi-Fi 6 user sessions, each user is uniquely encrypted and if they disconnect and reconnect, the encryption changes from session to session.

VPN tunnels
In remote AP (RAP) and IAP-VPN deployments, the Aruba 570EX series can be used to establish a secure SSL / IPSec VPN tunnel to a gateway or mobility controller that is configured as a VPN concentrator.

Trusted Platform Module (TPM)
For enhanced device assurance, Aruba AP has an installed TPM for secure storage of credentials, keys and boot code.



Teknisk specifikation

Typ av enhet	Trådlös åtkomstpunkt
Robust design	Utomhus
Bredd	23 cm
Djup	22 cm
Höjd	14 cm
Vikt	2.1 kg

Formfaktor	Extern
Anslutningsteknik	Trådlös
Linjekodningsformat	CCK, 64 QAM, 256 QAM, BPSK, QPSK, 16 QAM, OFDM
Datalänkprotokoll	IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, Bluetooth 5.0, IEEE 802.11ax (Wi-Fi 6)
Metod för spridningsspektrum	OFDM, DSSS
Frekvensband	2.4 GHz, 5 GHz
Prestanda	Maximal datahastighet (2,4 GHz): 575 Mbps Maximal datahastighet (5 GHz): 4,8 Gbit/s
Kapacitet	Trådlösa klienter per trådlös radio: 512 BSSID:er per radio: 16
Statusindikatorer	System, status
Funktioner	Auto-uplink (auto MDI/MDI-X), Trusted Platform Module (TPM), Low Density Parity Check (LDPC), Cyclic Delay Diversity (CDD), Space Time Blocking Code (STBC), Advanced Cellular Coexistence (ACC), ClientMatch, CSD (Cyclic Shift Diversity), paketaggregering A-MPDU, paketaggregering A-MSDU, Maximal Ratio Combining, Intelligent Power Monitoring (IPM), stöd för IP Security (IPSec), Energieffektiv ethernet (EEE), Fjärr-AP (RAP)-läge, HPE SmartRate, Transmit Beamforming, 4x4:4 SS MU-MIMO-teknik, Policy Enforcement Firewall (PEF), Layer 7 Deep Packet Inspection (DPI), Passpoint Release 2
Krypteringsalgoritm	SSL
Standarder som följs	IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, WiFi-CERTIFIERAD, IEEE 802.11n, IEEE 802.3at, IEEE 802.11ac, IEEE 802.3bz, IEEE 802.3bt, Bluetooth 5.0, IEEE 802.11ax, Wi-Fi CERTIFIED 6

Antenn	Inbyggd
Riktning	Riktnings-

Kompatibel med Internet of Things (IoT)	Ja
Kommunikationsteknologi	Bluetooth Low Energy (LE), Zigbee

Gränssnitt	1 x 2500Base-T (PoE) - RJ-45 1 x 1000Base-T - RJ-45 1 x konsol - USB-C

Standarder som följs	CB, UL 2043, FCC, EN 60601-1-2, cTUVus, IP67, IP66, EN 60601-1-1, EMC 2014/30/EU, LVD 2014/35/EU, ISED, IEC/EN/UL 60950, RED 2014/53/EU

Stöd för PoE (Power Over Ethernet)	PoE+
Energiförbrukning vid drift	32 Watt

Service och support	Begränsad garanti - livstid

Min temperatur vid drift	-40 °C
Max temperatur vid drift	65 °C
Luftfuktighet vid drift	5 - 93 % (icke-kondenserande)
