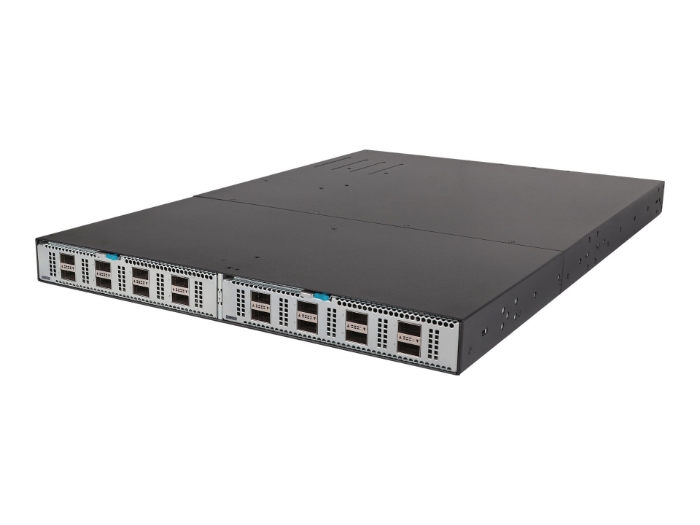

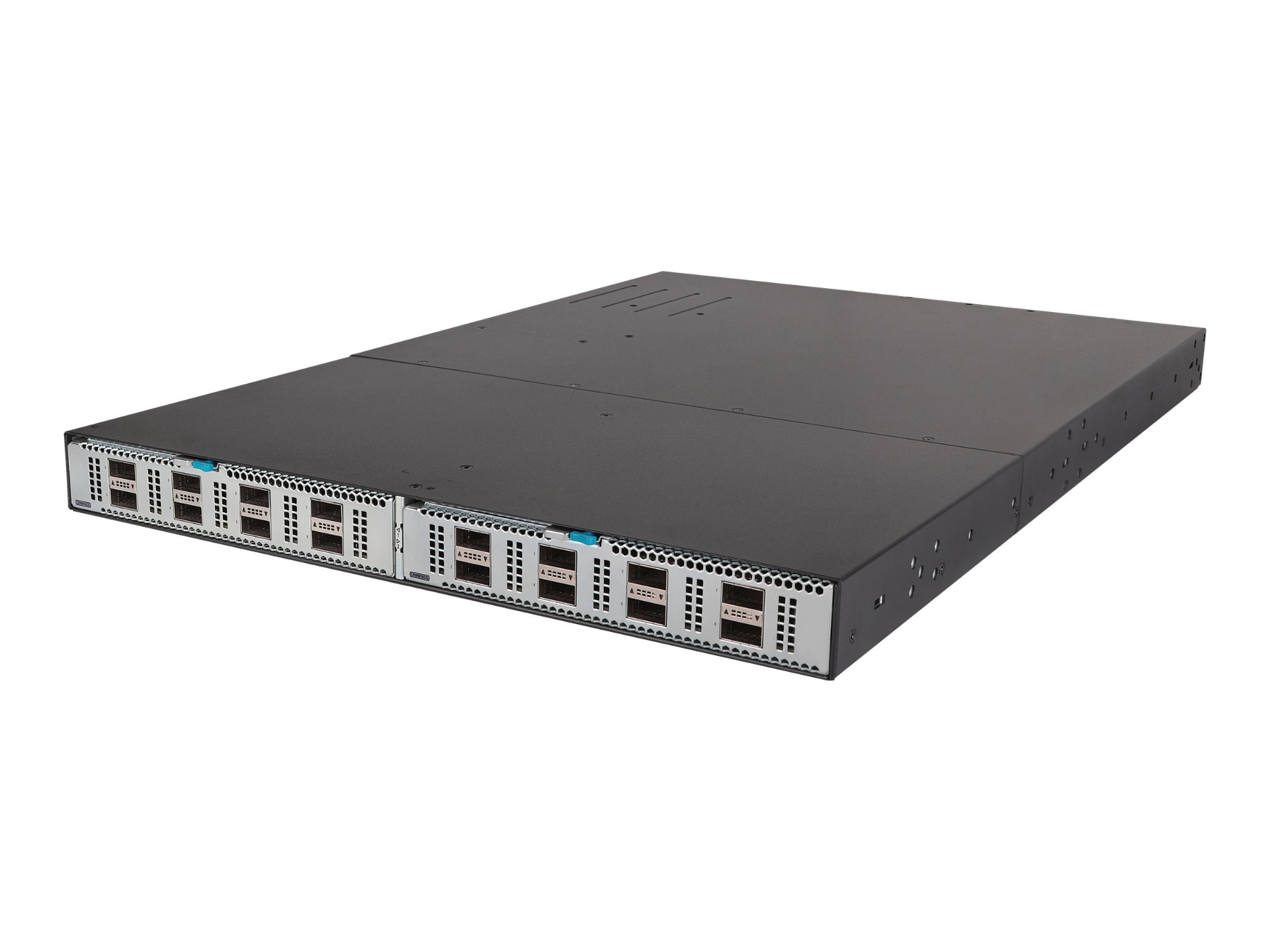

The HPE FlexFabric 5945 Switch Series are high-density, ultra-low-latency, and top-of-rack (ToR) switches ideally suited for deployment at the aggregation or server access layer of large enterprise data centers. The HPE 5945 is also powerful enough for deployment at the core layer of medium-sized enterprises. With the increase in virtualized applications and server-to-server traffic, customers require spine and ToR switches that can meet their throughput requirements. With the HPE 5945, data centers can now support up to 100GbE per port, allowing high performance server connectivity and the capabilities to handle virtual environments.
● HPE FlexFabric Network Analytics solution supporting real time microburst detection
Allmänt
| Typ av enhet | Switch - 16 portar - L3 - Administrerad - staplingsbar |
|---|
| Modell | Rackmonterbar 1U |
|---|
| Undertyp | 100 Gigabit Ethernet |
|---|
| Portar | 2 x 100 Gigabit QSFP28 |
|---|
| Prestanda | Latens (64-bytepaket): 1 µs
Kapacitet: 2024 Mpps
Routing/omkopplingskapacitet: 3,6 Tbps |
|---|
| Kapacitet | IPv4-routingtabellposter: 324000
IPv6-routingtabellposter: 162000
MAC-adresser: 288000 |
|---|
| MAC Address Table Size | 288K poster |
|---|
| Jumbo Frame-support | 9416 byte |
|---|
| Max antal enheter i en stapel | 9 |
|---|
| Nätverksprotokoll | OSPF, BGP-4, IS-IS, RIP-1, RIP-2, BGP, IGMP, VRRP, OSPFv2, IGMPv3, OSPFv3, statisk IPv6-routing, ECMP, RIPng, IS-ISv6, MPLS, Bidirectional Forwarding Detection (BFD), BGP+ |
|---|
| Protokoll för administration på distans | SNMP 1, SNMP 2, RMON, Telnet, SNMP 3, SNMP 2c, TFTP, SSH, CLI |
|---|
| Verifieringsmetod | Secure Shell (SSH), RADIUS, TACACS, TACACS+, Secure Shell v.2 (SSH2) |
|---|
| Funktioner | Flödeskontroll, DHCP-stöd, BOOTP-stöd, ARP-stöd, VLAN-stöd, IGMP snooping, Syslog-stöd, paketfiltrering, portspegling, Stöd för DiffServ, WRR-köer (Weighted Round Robin), stöd för IPv6, SNTP-support, Weighted Fair Queuing (WFQ), sFlow, PIM-snooping, stöd för STP (Spanning Tree Protocol), stöd för snabbt trädspanningsprotokoll (RSTP), stöd för redundansprotokoll för virtuell rutt (VRRP), stöd för MSTP (Multiple Spanning Tree Protocol), tunnelering, stöd för byte av datacenterbrygga (DCBX), DHCP-snooping, Quality of Service (QoS), Committed Access Rate (CAR), Jumbo Frames-support, stöd för detekteringsprotokoll för enhetslänkar (DLDP), Equal-Cost Multipath (ECMP), IPv4-support, LLDP-support, DHCP-relä, LACP (Link Aggregation Control Protocol), Port Security, Data Center Bridging (DCB), Management Information Base (MIB), NTP-tidssynkronisering, FCoE-vidarebefordring, Ingress Layer 2 MAC åtkomstkontrollslistor (ACL), Class of Service (CoS), Strict Priority (SP), Intelligent Resilient Framework Technology (IRF), FCoE-support, In-Service Software Upgrade (ISSU), 32 MB paketbuffert, UDP-styrning, Network Timing Protocol (NTP), Weighted Deficit Round Robin (WDRR), Top-of-Rack (ToR), 2 fläktplåtsfack |
|---|
| Standarder som följs | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1ad, IEEE 802.3ah, IEEE 802.1ag, IEEE 802.1ab (LLDP), IEEE 802.1AX, IEEE 802.1Qaz, IEEE 802.3ag |
|---|
| RAM | 8 GB SDRAM |
|---|
| Flash-minne | 1 GB |
|---|
Diverse
| Standarder som följs | CISPR 22 klass A, GOST, EN 61000-3-2, IEC 61000-3-2, IEC 61000-3-3, IEC 61000-4-11, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, NOM, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, ICES-003 klass A, EN 61000-4-5, EN 61000-4-11, RoHS, EN 61000-4-8, UL 60950-1, IEC 60950-1, ANATEL, UL-AR, EN 60825-1, ANSI C63.4-2003, EN 60825-2, EN 61000-3-2:2006, VCCI Class A, EN 61000-3-3:1995+A1:2001+A2:2005, EMC 2004/108/EC, EN 300 386 V1.3.3, EN 55022 Class A, FCC CFR47 Part 15 A, EN 60950-1/A11, FDA 21 CFR, CAN/CSA-C22.2 No. 60950-1, EN 55024:1998+A1:2001+A2:2003 |
|---|
