Produktbeskrivning

The HPE FlexFabric 5945 Switch Series are high-density, ultra-low-latency, and top-of-rack (ToR) switches ideally suited for deployment at the aggregation or server access layer of large enterprise data centers. The HPE 5945 is also powerful enough for deployment at the core layer of medium-sized enterprises. With the increase in virtualized applications and server-to-server traffic, customers require spine and ToR switches that can meet their throughput requirements. With the HPE 5945, data centers can now support up to 100GbE per port, allowing high performance server connectivity and the capabilities to handle virtual environments. The HPE FlexFabric 5945 Switch Series provides choices that fit your budget and IT environment by cut-through with ultra-low-latency and wire speed, offering different port density and speeds of 100GbE/40GbE/25GbE/10GbE spine/ToR connectivity.



Egenskaper

High-density, advanced, data center switches with HPE FlexFabric network analytics
The HPE FlexFabric 5945 Switch Series enables customers to scale their server-edge 1/10/25/40/100GbE top-of-rack (ToR) deployments with high-density 48 x 10GbE (SFP or BASE-T) with 6 x 40GbE ports, 48 x 10GbE (SFP or BASE-T) with 6 x 100GbE ports, 32 x 40GbE ports, and 32 x 100 GbE ports.

High-performance data center switching
The HPE FlexFabric 5945 Switch Series delivers up to 2.56 Tbps switching capacity for demanding data center applications. Supports up to 1904 MPPS throughput for data-intensive environments. Low latency, under 1µs for 40GbE, delivering increased network throughput. VXLAN support for network virtualization and overlay solutions for improved flexibility.

Business agility and resilience with Hewlett Packard Enterprise Comware 7
The HPE FlexFabric 5945 Switch Series delivers Hewlett Packard Enterprise Intelligent Resilient Fabric (IRF) with <50 msec convergence time enabling faster application response time. The In-Service Software Update (ISSU) enables high availability with modular updates accomplished without a reboot or power cycle, in the background.

Simplicity and lower TCO
HPE FlexFabric 5945 Switch Series simplifies switch management by up to 88% with 9-unit Hewlett Packard Enterprise Intelligent Resilient Fabric (IRF).



Teknisk specifikation

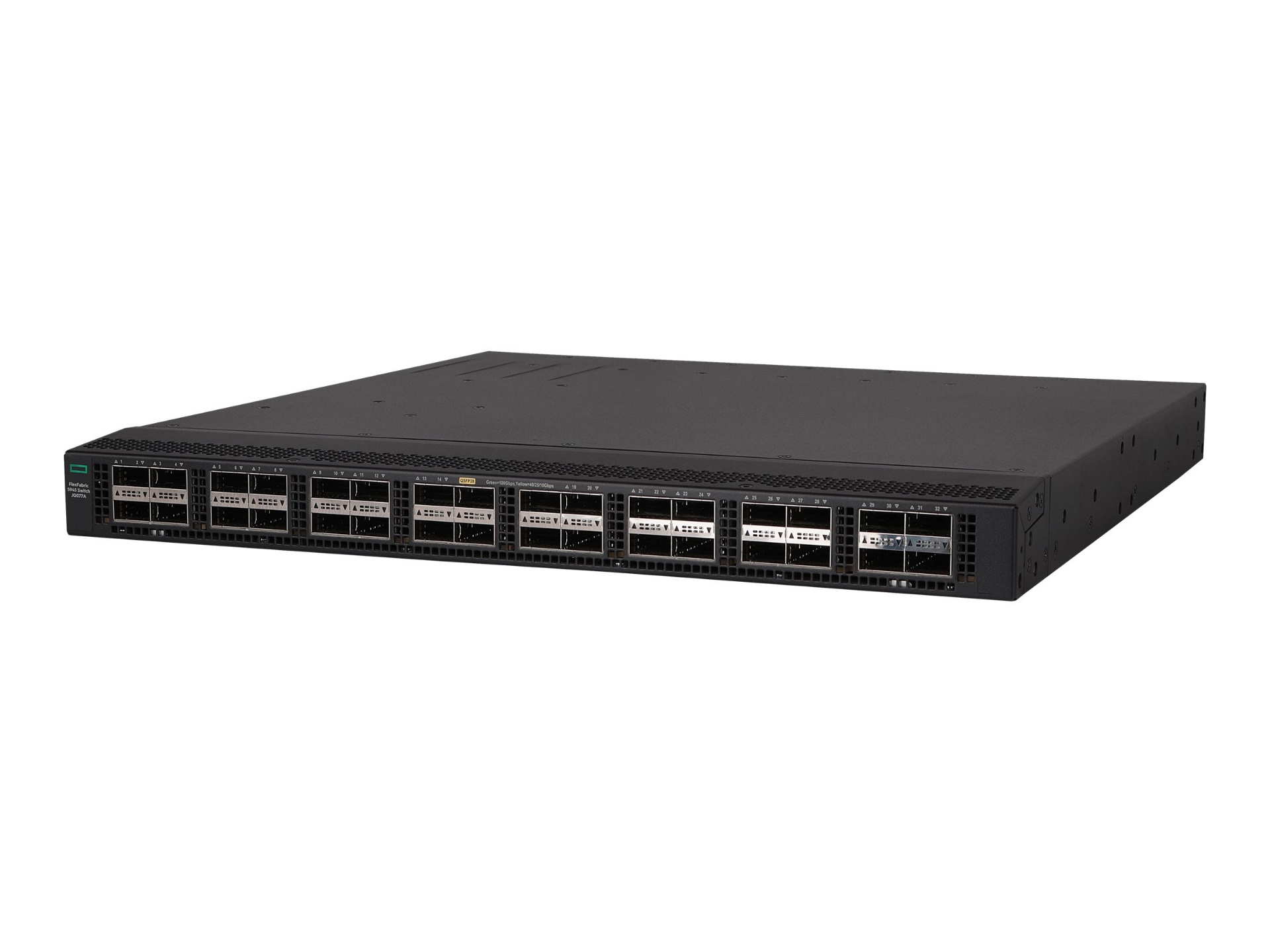

Typ av enhet	Switch - 32 portar - L3 - Administrerad
Modell	Rackmonterbar 1U
Undertyp	100 Gigabit Ethernet
Portar	32 x 100 Gigabit QSFP28 + 2 x Gigabit SFP
Prestanda	Latens (64-bytepaket): 1 µs Kapacitet: 2024 Mpps Routing/omkopplingskapacitet: 6,6 Tbps
Kapacitet	Routingposter: 288000 VLAN-stöd: 4096
Jumbo Frame-support	9416 byte
Nätverksprotokoll	OSPF, RIP, BGP-4, IS-IS, RIP-2, IGMP, VRRP, VRRPE, statisk IPv6-routing, BGP+
Protokoll för administration på distans	SNMP 1, Telnet, SNMP 3, SNMP 2c, SSH, CLI
Verifieringsmetod	Secure Shell (SSH), RADIUS, TACACS+
Funktioner	Flödeskontroll, ARP-stöd, IGMP snooping, paketfiltrering, portspegling, MAC-adressfiltrering, Weighted Fair Queuing (WFQ), sFlow, stöd för redundansprotokoll för virtuell rutt (VRRP), stöd för MSTP (Multiple Spanning Tree Protocol), stöd för byte av datacenterbrygga (DCBX), stöd för ACL (Access Control List), Quality of Service (QoS), stöd för detekteringsprotokoll för enhetslänkar (DLDP), Equal-Cost Multipath (ECMP), Bidirectional Forwarding Detection (BFD), LLDP-support, dubbel bild med fast programvara, NTP-tidssynkronisering, In-Service Software Upgrade (ISSU), Explicit Congestion Notification (ECN), Priority-Based Flow Control (PFC), Virtual Extensible LAN (VXLAN), Role-Based Access Control (RBAC), Ethernet Virtual Private Network (EVPN), policybaserad routing, LLDP-MED, WRR (Weighted Round Robin), Support Operations, Administration, and Maintenance (OAM) mechanism, utökat överföringsval (ETS), Intelligent Resilient Fabric Technology (IRF), Rapid Convergence Spanning Tree Protocol
Standarder som följs	IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3ah, IEEE 802.1ag, IEEE 802.1ab (LLDP), IEEE 802.1Qbb, IEEE 802.1Qaz
RAM	8 GB SDRAM
Flash-minne	1 GB

Gränssnitt	32 x 100Gbit LAN QSFP28 2 x Gigabit LAN SFP 1 x hantering

Nätdel	Intern strömförsörjning (ej installerad) - hot-plug
Max antal som stöds	2
Redundant ström	Tillval
Schema för redundant ström	1+1 (med valfritt nätaggregat)

Standarder som följs	FCC klass A-certifierad, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, AS/NZS 60950-1, ICES-003 klass A, FCC CFR47 Part 15, UL 60950-1, IEC 60950-1, EN 60950-1, VCCI Class A, FDA 21 CFR, EN 55032 Class A, CISPR 32 Class A, CAN/CSA-C22.2 No. 60950-1, ETSI EN 300 386

Bredd	44 cm
Djup	46 cm
Höjd	4.36 cm

Emballagets vikt	10.4 kg

Service och support	Begränsad garanti - 1 år

Min temperatur vid drift	0 °C
Max temperatur vid drift	45 °C
Luftfuktighet vid drift	5 - 95 % (icke-kondenserande)
