Produktbeskrivning

HPE Standard Series G2 Basic PDUs are designed to work precisely with HPE Infrastructure and Compute solutions. Built with high-temperature grade premium components, the G2 Basic PDUs can operate reliably in operating temperatures up to 60°C over extended periods of time. A major concern for IT administrators and facility managers is their ability to quickly diagnose and service power related problems in their IT racks. HPE addresses this problem by, first, offering a wide range of PDU models and mounting options that promote flexible power configuration in your racks. Vertical, Horizontal, and True 0U mounting, an exclusive feature only offered by HPE, give you the flexibility to efficiently utilize rack space while placing access to power where you need it most in the rack. Serviceability is further enhanced with features such as color-coded outlets and low-profile form factors which allow for simple and quick access to IT equipment and power cables in the rear of the rack.



Teknisk specifikation

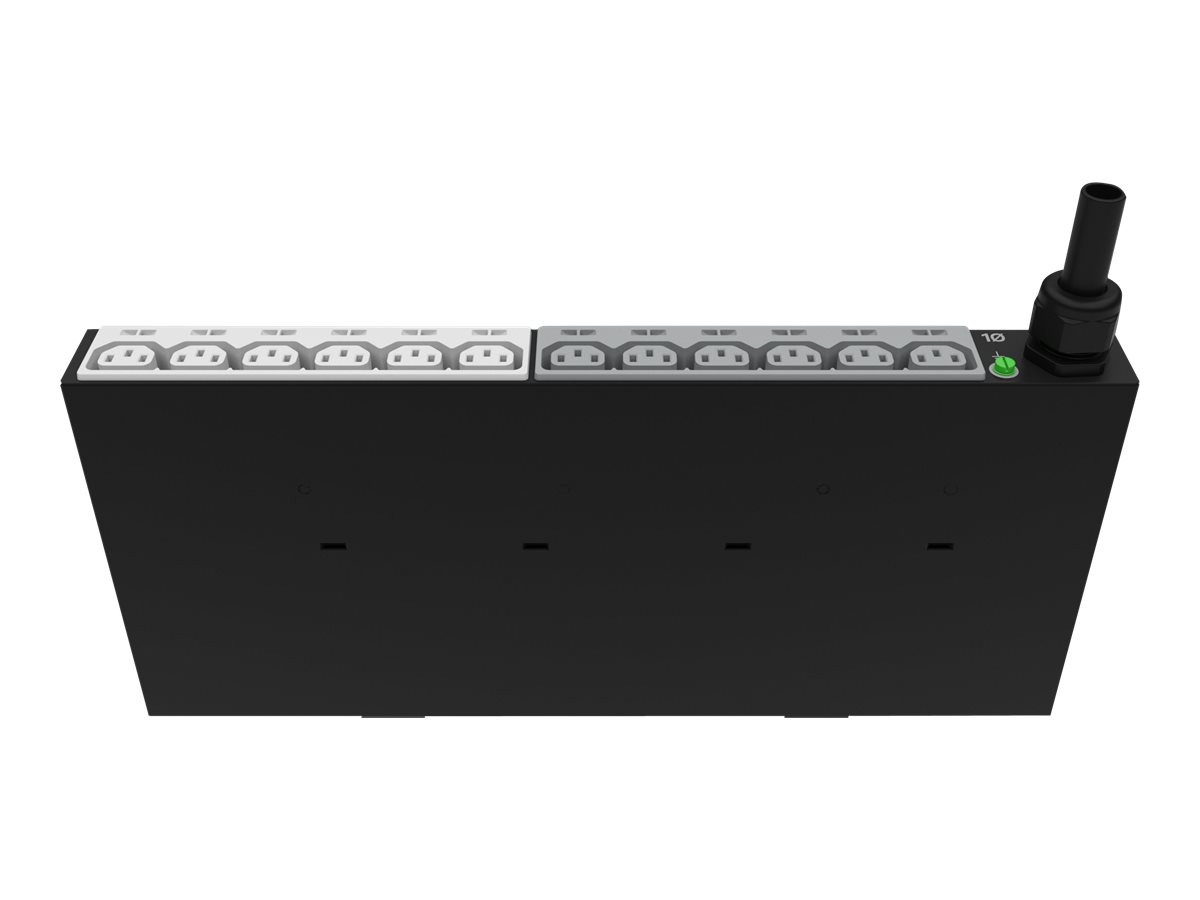

Typ av enhet	Kraftdistributionsenhet - kan monteras i rack
Sladdlängd	25.4 cm
Lokalisering	Världsomspännande

Inspänning	AC 200-240/346-415 V
Ingångskablage	3-fas Y (stjärna)
Inmatningsanslutningar	1 x ström IEC 60309 32A
Kontaktdetaljer för uteffekt	12 x ström IEC 60320 C19 36 x power IEC 60320 C13
Max elektrisk ström	32 A
Effektkapacitet	22000 VA
Kretsskydd	Strömbrytare

Inkluderade tillbehör	Knutomslag
Medföljande kablar	Strömkabel 25.4 cm
Rackmonteringssats	Inkluderat
Standarder som följs	DEMKO, WEEE, KC, EAC

Min temperatur vid drift	10 °C
Max temperatur vid drift	60 °C
Luftfuktighet vid drift	10 - 90%

Bredd	5.2 cm
Djup	11.2 cm
Höjd	182 cm
Vikt	9.16 kg

Designat för	HPE Synergy 12000 Frame
