Produktbeskrivning

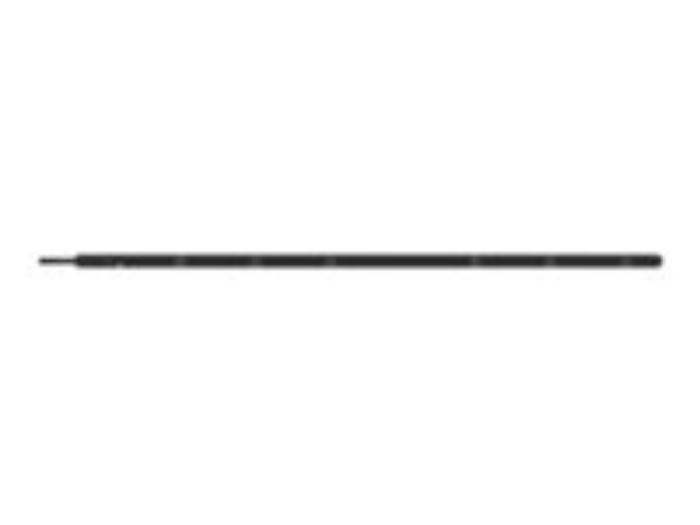

HPE Advanced series G2 metered PDUs are designed to work precisely with infrastructure and compute solutions, providing a highly accurate (billing grade accuracy) power distribution and metering solution for your racks. Designed for use with different racks, HPE G2 metered PDUs deliver a compatible fit and reliable operation. HPE G2 metered PDUs are also rated for operating temperatures up to 60°C, adding an increased level of operational reliability for power distribution in IT racks. A major concern for IT administrators and facility managers is their ability to quickly diagnose and service power related problems in their IT racks. Serviceability is further enhanced with features, such as color-coded outlets and low-profile form factors, allowing for simple and quick access to IT equipment and power cables in the rear of the rack.

HPE G2 metered PDU features are also directly focused on other pain points in the data center. 1Gb Ethernet alleviates the need to maintain older switch solutions, that have been traditionally required for PDU network connectivity. High-density outlet configurations allow for simple access to power in the rack, while minimizing physical cable requirements. Support for sensors provides a cost-effective and exhaustive solution for monitoring the environmental elements (temperature, humidity, and leakage) in both the front and rear of the rack.



Teknisk specifikation

Typ av enhet	Kraftdistributionsenhet - kan monteras i rack
Sladdlängd	25.4 cm
Lokalisering	Världsomspännande

Inspänning	AC 230 V
Inspänningens område	AC 220-240 V
Ingångskablage	3-fasig 5-trådig
Inmatningsanslutningar	1 x ström IEC 60309 32A
Kontaktdetaljer för uteffekt	36 x power IEC 60320 C13 12 x ström IEC 60320 C19
Utspänning	AC 200-240/346-415 V
Max elektrisk ström	32 A
Effektkapacitet	22000 VA
Kretsskydd	Strömbrytare

Medföljande kablar	Strömkabel 25.4 cm
Rackmonteringssats	Inkluderat

Service och support	Begränsad garanti - material och tillverkning - 3 år

Bredd	26.19 cm
Djup	197.99 cm
Höjd	13.21 cm
Vikt	13.15 kg

Designat för	HPE Synergy 12000 Frame
