Produktbeskrivning

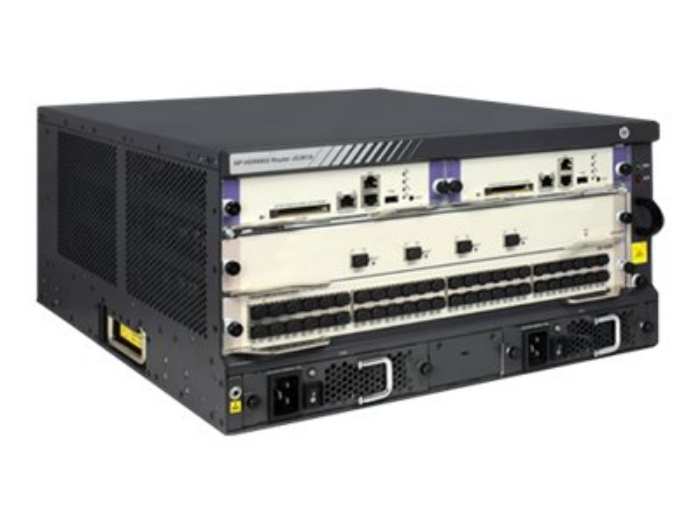

The HPE HSR6800 router series is a portfolio of high-performance WAN services routers, ideal for large-scale data center and campus WAN networks. These routers are built with a multi-core distributed processing architecture that scales up to 420 Mpps forwarding and up to 2 Tbps switch capacity.

They deliver robust routing (MPLS, IPv4, IPv6, dynamic routing, nested QoS), security (stateful firewall, IPsec/Dynamic VPN, DoS protection, NAT), full layer 2 switching, traffic analysis capabilities, and-high density 10 GbE (and 40/100 GbE-ready) WAN interface options, all integrated in a single high-performance routing platform.



Egenskaper

Multiple WAN interfaces
Support Fast Ethernet/Gigabit Ethernet/10GbE ports, OC3 - OC48 POS/CPOS, and ATM ports.

Flexible port selection
Provides a combination of fiber/copper interface modules, 100/1000BASE-X auto-speed selection, and 10/100/1000BASE-T auto-speed detection plus auto duplex and MDI/MDI-X; is speed adaptable between 155 M POS/622 M.

POS/Gigabit Ethernet
Supports internal loopback testing for maintenance purposes and an increase in availability; loopback detection protects against incorrect cabling or network configurations and can be enabled on a per-port or per-VLAN basis for added flexibility.

Performance
High-performance platform: provides up to 420 Mpps in forwarding and up to 2 Tbps switching capacity.

Provide greater flexibility
Hot-swappable modules facilitate the replacement of hardware interface modules without impacting the traffic flow through the system.

Virtual router redundancy protocol (VRRP)
Allows groups of two routers to dynamically back each other up to create highly available routed environments.

Graceful restart
Features are fully supported, including graceful restart for OSPF, IS-IS, BGP, LDP, and RSVP; the network remains stable during the active-standby switchover; after the switchover, the device quickly learns the network routes by communicating with adjacent routers; forwarding remains uninterrupted during the switchover to achieve nonstop forwarding (NSF).

Distributed processing
Two kinds of engines are hardware-separated: main controller engine (routing engine) and service engines (flexible interface platform FIP and service aggregation platform SAP); the main controller engine is used for route computing and system management, and service engines are used for processing services.

HPE Apollo processor
HPE in-house designed service/forwarding processor support powerful parallel processing, encryption and comprehensive HQoS functionalities.



Teknisk specifikation

Typ av enhet	Modulär expansionsenhet
Modell	Rackmonterbar - modulär - 5U
Anslutningsteknik	Kabelansluten
Prestanda	Kapacitet: upp till 120 Mpps Backplane-hastighet: 1 024 Gbps
Kapacitet	IPv4-routingtabellposter: 4000000 IPv6-routingtabellposter: 2000000 IPv4-vidarekopplingstabellposter: 1000000 IPv6-vidarekopplingstabellposter: 1000000
Nätverks/transportprotokoll	TCP/IP, UDP/IP, L2TP, RSVP, NTP, IPSec, ARP, DHCP
Nätverksprotokoll	OSPF, RIP, BGP-4, IS-IS, RIP-2, BGP, IGMPv2, IGMP, VRRP, OSPFv2, PIM-SM, PIM-DM, IGMPv3, GRE, OSPFv3, PIM-SSM, Multiprotocol BGP, MSDP, statisk IPv4-routing, statisk IPv6-routing, RIPng, MLD, MPLS, Bidirectional Forwarding Detection (BFD)
Protokoll för administration på distans	SNMP 1, SNMP 2, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, HTTP, TFTP, SSH, CLI
Krypteringsalgoritm	MD5, SSL, TLS
Verifieringsmetod	RADIUS, TACACS+, Secure Shell v.2 (SSH2), Extensible Authentication Protocol (EAP)
Funktioner	Brandväggsskydd, DHCP-stöd, NAT-stöd, VPN-stöd, ARP-stöd, stöd för MPLS, IGMP snooping, Syslog-stöd, portspegling, stöd för IPv6, Weighted Fair Queuing (WFQ), stöd för RSTP (Rapid Spanning Tree Protocol), stöd för VRRP (Virtual Route Redundancy Protocol), stöd för MSTP (Multiple Spanning Tree Protocol), stöd för Trivial File Transfer Protocol (TFTP), stöd för Access Control List (ACL), Quality of Service (QoS), Committed Access Rate (CAR), MLD-snooping, Bidirectional Forwarding Detection (BFD), Unicast Reverse Path Forwarding (URPF), Dynamic Virtual Private Network (DVPN), Network Quality Analyzer (NQA), Multicast Source Discovery Protocol (MSDP), Multicast Border Gateway Protocol (MBGP)
Standarder som följs	IEEE 802.3, IEEE 802.3u, IEEE 802.3i, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.3ac, IEEE 802.1s, IEEE 802.1ad, IEEE 802.3ah, IEEE 802.1v, IEEE 802.1ah, IEEE 802.1ag, IEEE 802.1AX, ETSI, CISPR 22 klass A, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, EN55022 klass A, EN 61000-6-1, ICES-003 klass A, FCC CFR47 Part 15, UL 60950-1, IEC 60950-1, AS/NZS 60950, EN 60825-2, VCCI V-3 Class A ITE, VCCI V-4, KN22, KN24, EN 301 489-1, EN 300 386, CAN/CSA-C22.2 No. 60950-1, EN 301 489-17
Processor	1 x PowerPC 1 GHz
RAM	4 GB DDR3 SDRAM
Flash-minne	1 GB (installerad) / 2 GB (max)

Gränssnitt	Hanrering: 1 x RJ-45 Hanrering: 1 x RS-232C
Expansionskortplatser	2 (totalt)/ 2 (ledig) x expansionskortplats 8 (totalt)/ 8 (ledig) x Multifunction Interface Module (MIM) 2 (totalt)/ 1 (ledig) x CompactFlash
Antal installerade enheter / moduler (max)	0

Nätdel	Intern strömförsörjning (ej installerad) - hot-plug
Redundant ström	Tillval
Installerat antal	2 (max)
Nätspänning	AC 120/230 V (50/60 Hz)
Energiförbrukning vid drift	521 Watt

Bredd	43.6 cm
Djup	48 cm
Höjd	22 cm
Vikt	22.75 kg

Service och support	Begränsad garanti - 1 år

Min temperatur vid drift	0 °C
Max temperatur vid drift	45 °C
Luftfuktighet vid drift	5 - 95%
