Produktbeskrivning

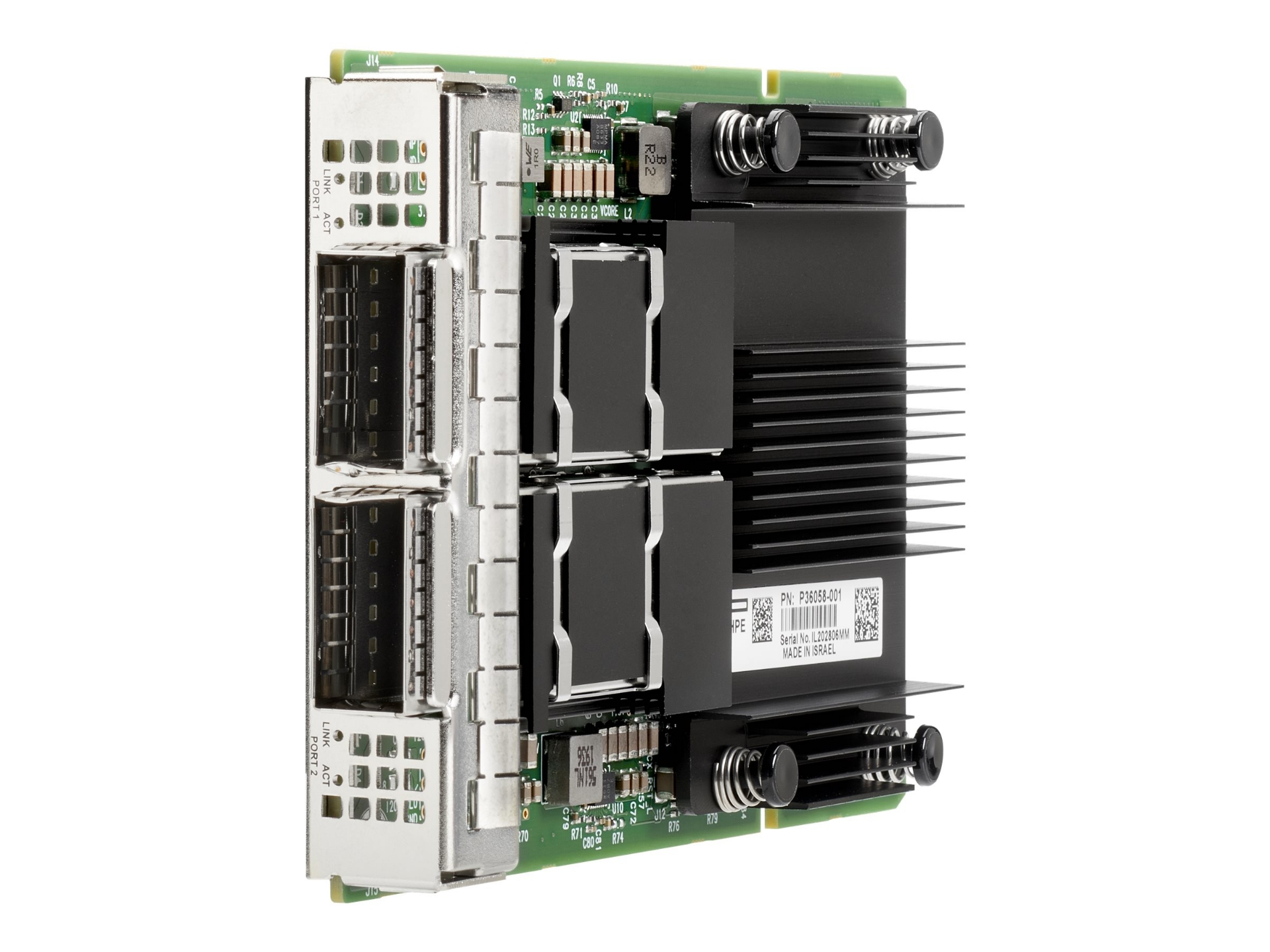

Are you looking for extremely high-bandwidth and low-latency communications for your HPE Apollo System and HPE ProLiant DL rack mount server families? The HPE HDR InfiniBand adapter is designed for customers who deploy high-performance computing (HPC) systems.



Egenskaper

Low-latency, high-bandwidth InfiniBand connectivity
HPE HDR InfiniBand adapters deliver up to 200 Gbps bandwidth and a sub-microsecond latency for demanding HPC workloads. The HPE InfiniBand HDR100 adapter, combined with HDR switches and HDR cables, is aimed at simplified infrastructure by reducing the number of required switches for a given 100 Gbps InfiniBand fabric.

Offloading mechanisms
HPE HDR InfiniBand adapter includes multiple offload engines that speed up communications by delivering a low CPU overhead for increasing throughput. HPE HDR InfiniBand adapter supports MPI tag matching and rendezvous offloads, along with adaptive routing on reliable transport.



Teknisk specifikation

Typ av enhet	Nätverksadapter
Formfaktor	Instickskort - låg profil
Gränssnittstyp (buss)	PCI Express 4.0 x16
Version av PCI-specifikation	PCIe 1.1, PCIe 2.0, PCIe 3.0, PCIe 4.0

Portar	200Gb Ethernet / 200Gb Infiniband QSFP56 x 2
Anslutningsteknik	Kabelansluten
Datalänkprotokoll	Gigabit Ethernet, 10 Gigabit Ethernet, 40 Gigabit Ethernet, 100 Gigabit Ethernet, 25 Gigabit Ethernet, 50 Gigabit Ethernet, 100 Gigabit InfiniBand, 200 Gigabit Ethernet, 200 Gigabit InfiniBand
Dataöverföringshastighet	200 Gbps
Funktioner	Auto-negotiation, stöd för MPLS, VLAN-stöd, InfiniBand QDR Link-stöd, Virtual Protocol Interconnect (VPI), Quality of Service (QoS), stöd för InfiniBand DDR Link, Jumbo Frames-support, PXE-support, Large Send Offload (LSO), Large Receive Offload (LRO), Receive Side Scaling (RSS), UEFI-support, InfiniBand FDR Link-support, stockningskontroll, Advanced Error Reporting (AER), Extended Message-Signaled Interrupts (MSI-X), Header Data Split (HDS), Transmit Side Scaling (TSS), RDMA over Converged Ethernet (RoCE), Stöd för InfiniBand EDR-länk, TLP Processing Hint (TPH), InfiniBand SDR Link-support, Extended Reliable Connected transport (XRC), Dynamically Connected transport (DCT), användarlägesregistrering och ommappning av minne (UMR), personsökning på begäran (ODP), Meddelandesignalerade avbrott (MSI), InfiniBand HDR100 länkstöd
Standarder som följs	IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ad (LACP), IEEE 802.3ae, IEEE 802.3ap, IEEE 802.3az, IEEE 802.3ba, IEEE 802.1AX, IEEE 802.1Qbb, IEEE 802.1Qaz, IEEE 802.1Qau, IBTA 1.3, IEEE 802.1Qbg, IEEE 1588v2, IEEE 802.3bj, IEEE 802.3bm, IEEE 802.3by, OCP 3.0

Gränssnitt	2 x 200Gb Ethernet / 200Gb Infiniband - QSFP56

Standarder som följs	CISPR 22 klass A, EN55024, ICES-003 klass A, UL 60950-1, IEC 60950-1, EN 60950-1, IEC 60068-2-32, RoHS, IEC 60068-2-29, IEC 60068-2-64, KC, VCCI Class A, AS/NZS CISPR 22, EN 55022 Class A, FCC CFR47 Part 15 A, RCM Class A, CAN/CSA-C22.2 No. 60950-1

Operativsystem erfordras	FreeBSD, Microsoft Windows, Red Hat Enterprise Linux, CentOS

Service och support	Begränsad garanti - delar - 3 år

Min temperatur vid drift	0 °C
Max temperatur vid drift	55 °C
Luftfuktighet vid drift	5 - 95 % (icke-kondenserande)

Designat för

HPE Nimble Storage dHCI Medium Solution with HPE ProLiant DL325 Gen10 Plus HPE ProLiant DL325 Gen10 Plus, DL325 Gen10 Plus All-NVMe Flash Node for Qumulo, DL325 Gen10 Plus All-NVMe Flash Node for Software Defined Storage, DL325 Gen10 Plus for Weka Expansion Tracking, DL325 Gen10 Plus V2, DL325 Gen10 Plus V2 Base, DL325 Gen10 Plus V2 for Weka Base Tracking, DL325 Gen10 Plus V2 Performance, DL345 Gen10 Plus Base, DL360 Gen10 Plus, DL360 Gen10 Plus All-NVMe Server for Software Defined Storage, DL365 Gen10 Plus, DL385 Gen10 Plus, DL385 Gen10 Plus Entry
