Produktbeskrivning

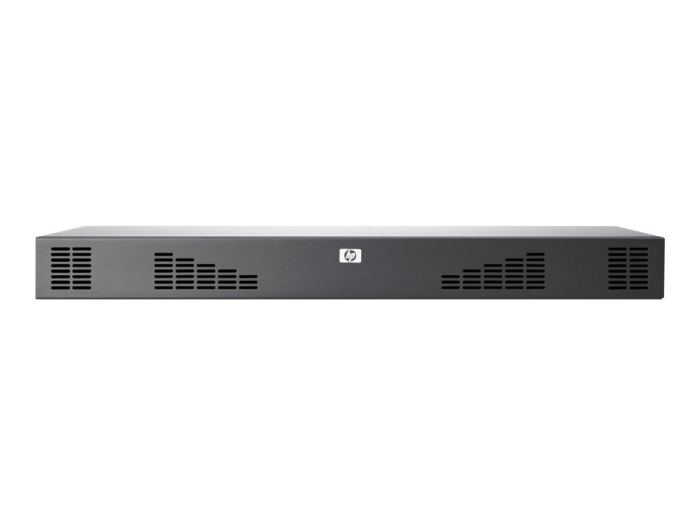

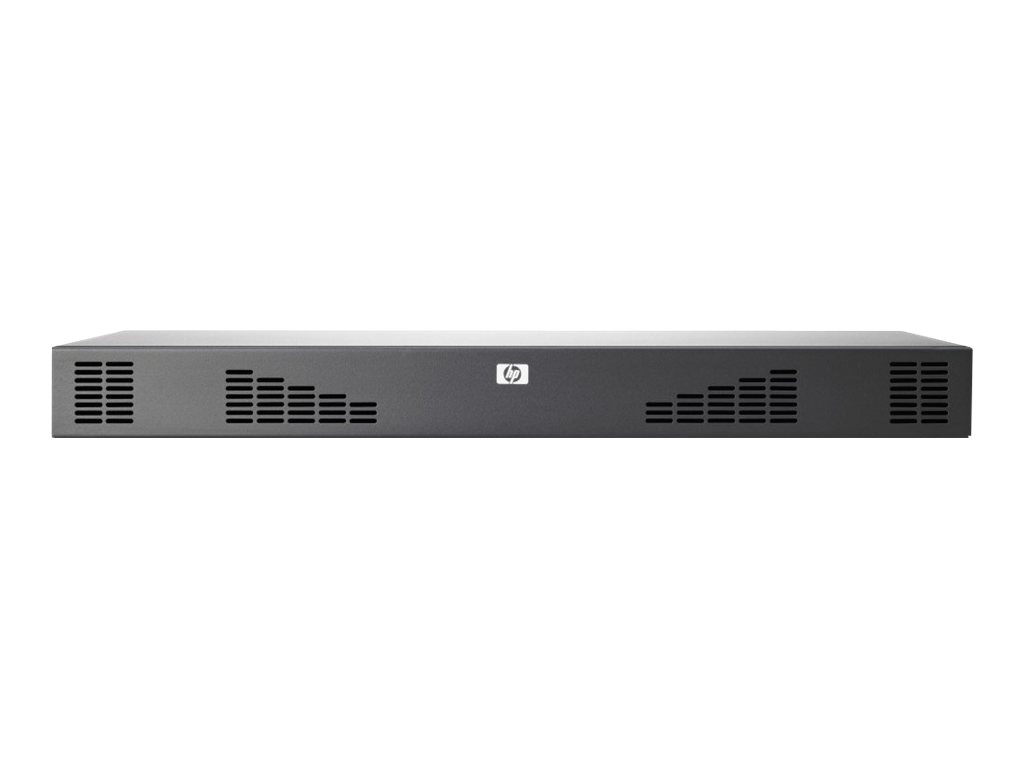

HPE's IP Console Switch G2 with Virtual Media and Common Access Card (CAC) support is a key component in managing the heterogeneous data center and along with the IP Viewer software allows remote access to multiple servers running various operating systems. Virtual media capability allows a removable drive or ISO image to be remotely mapped to an attached server in the data center or a remote office for software installations and upgrades. An intuitive user interface provides menus for configuration, virtual media, display, and even security and upgrades from the local console. The term CAC stands for Common Access Card, also known as "Smart Cards". The CAC allows government agency and other company employees to keep all of their network access information on a card that is read by either an external USB reader or a port on the PC/server.



Egenskaper

Remote virtual media
Easily load and update software and firmware from anywhere on the LAN or WAN when used with virtual media interface adapters.

iLO compatibility
Easily switch between remote KVM and iLO sessions directly from the IP Viewer software.

Local console user interface
It displays all system-related information on the console monitor, same look and feel as the remote On-Board Web Interface (OBWI).

Programmable scanning
An evaluation of system performance can be made by sequentially scanning any or all of the computers in the system. Programmable scanning allows you to determine which computers to include as well as the duration of the connection.

Configuration NVRAM
NVRAM (non-volatile RAM) makes it easy to set configuration information using commands entered from the keyboard. The NVRAM stores the resulting configuration until a user decision is made to change the information, even if the unit loses power.

Password protection
For protection against unauthorized users, the switch box provides a local password option for security purposes as well as individual user authentication and access rights for remote users.



Teknisk specifikation

Typ av enhet	Omkopplare för tangentbord/video/mus - 8 portar - kaskadbar
Modell	Skrivbordsmodell 1U
Undertyp	KVM
Portar	8 x KVM port(s)
Antal lokala KVM-användare	1 lokal användare
Antal IP-användare på KVM	1 IP-användare
Tangentbords-/musgränssnitt	USB
Krypteringsalgoritm	DES, Tredubbel DES, AES, SSL
Verifieringsmetod	LDAP
Max upplösning	1600 x 1200
Funktioner	Fast programvara kan uppdateras

Gränssnitt	8 x KVM RJ-45 1 x RJ-45 hantering 1 x tangentbord (USB) Type A 1 x mus (USB) Type A 1 x VGA HD-15 1 x LAN RJ-45 4 x USB Type A

Nätdel	Intern strömförsörjning
Redundant ström	Ja
Schema för redundant ström	1+1
Nätspänning	AC 120/230 V (50/60 Hz)

Bredd	43.8 cm
Djup	23.7 cm
Höjd	4.4 cm
Vikt	3.2 kg

Min temperatur vid drift	10 °C
Max temperatur vid drift	50 °C
Luftfuktighet vid drift	20 - 80%

Designat för

HPE 10642 G2 1200mm deep Shock Rack, 10647 G2 1200mm deep Shock Rack, 600mm x 1075mm Advanced Pallet Rack, 600mm x 1075mm Advanced Shock Rack, 600mm x 1075mm Enterprise Crate Rack, 600mm x 1075mm Enterprise Pallet Rack, 600mm x 1075mm Enterprise Shock Rack, 600mm x 1200mm Advanced Pallet Rack, 600mm x 1200mm Advanced Shock Rack, 600mm x 1200mm Enterprise Air Duct Rack, 600mm x 1200mm Enterprise Pallet Rack, 600mm x 1200mm Enterprise Shock Network Rack, 600mm x 1200mm Enterprise Shock Rack, 600mm x 1200mm Grey Enterprise Air Duct Rack, 600mm x 1200mm Grey Enterprise Shock Rack, 600mm x 1200mm Network Advanced Shock Rack, 800mm x 1075mm Enterprise Pallet Rack, 800mm x 1075mm Enterprise Shock Rack, 800mm x 1200mm Advanced Pallet Rack, 800mm x 1200mm Advanced Shock Rack, 800mm x 1200mm Enterprise Pallet Rack, 800mm x 1200mm Enterprise Shock Network Rack, 800mm x 1200mm Enterprise Shock Rack, 800mm x 1200mm Grey Enterprise Shock Network Rack, 800mm x 1200mm Grey Enterprise Shock Rack, 800mm x 1200mm Network Advanced Shock Rack HPE Advanced Series Racks 42U 600mm x 1075mm Kitted Advanced Pallet Rack with Side Panels and Baying, 42U 600mm x 1075mm Kitted Advanced Shock Rack with Side Panels and Baying HPE ProLiant DL120 Gen9, DL120 Gen9 Entry, DL160 Gen9, DL160 Gen9 Base, DL160 Gen9 Entry, DL160 Gen9 Performance, DL180 Gen9 Base, DL180 Gen9 Entry, DL180 Gen9 Storage, DL20 Gen9, DL20 Gen9 Entry, DL20 Gen9 Performance, DL320e Gen8 v2 Entry, DL360 Gen9 Performance, DL360p Gen8, DL360p Gen8 CMS, DL380 G6, DL380 Gen9 Base, DL380 Gen9 Entry, DL380 Gen9 High Performance, DL380 Gen9 Performance, DL60 Gen9, DL60 Gen9 Base, DL60 Gen9 Entry, DL80 Gen9, DL80 Gen9 Base, DL80 Gen9 Entry, e2000 G6, m350, m400, m710, m800, ML110 Gen9, ML110 Gen9 Base, ML110 Gen9 Entry, ML150 Gen9, ML150 Gen9 Base, ML150 Gen9 Entry, ML150 Gen9 Performance, ML350 Gen9, ML350 Gen9 Base, ML350 Gen9 Entry, ML350 Gen9 Performance, ML350p Gen8 HPE Rack
