Produktbeskrivning

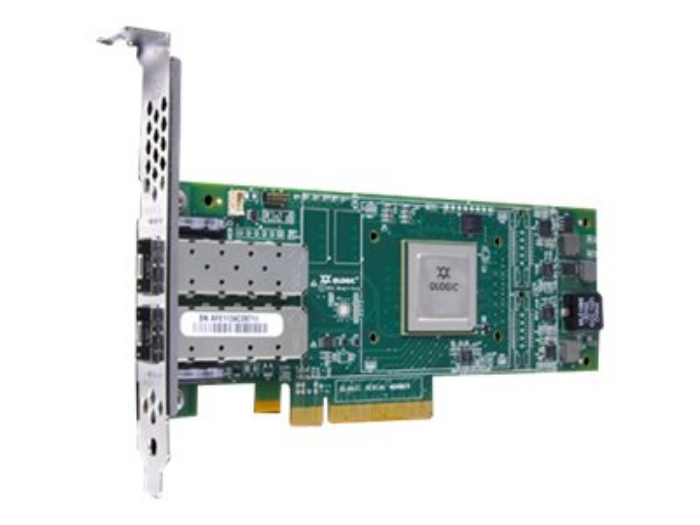

Looking for a high-bandwidth solution to meet the requirements of increasing server virtualization and consolidation? Finding it difficult to realize the full-bandwidth potential of your server running I/O intensive applications? HPE StoreFabric SN1000 16Gb host bus adapters enable more rapid storage and retrieval of critical information when using high-bandwidth cloud applications and storage intensive applications such as backup, database transactions and rich media. Designed for greater virtual machine density and bandwidth requirement environments, the SN1000 16Gb HBAs enable more applications and virtual machines to run on a single server and port, resulting in reduced cabling and higher return on IT investment. A 16Gb FC HBA will protect future investments.



Egenskaper

High performing Fiber Channel host bus adapters
The HPE StoreFabric SN1000 16Gb host bus adapters deliver twice the I/O performance of 8Gb Fiber Channel HBAs. Moving to 16Gb technology provides the infrastructure required for the more powerful servers and data intensive applications of the future. When using storage intensive applications like backup/restore, database transactions, virtualization and rich media, the improved I/O performance enables faster storage and retrieval of data.

Amazing Fiber Channel HBAs for virtualization
Ideal for the implementation of virtual servers with the power to drive multiple virtual machines. Allows a single port to acquire multiple N port IDs, eliminating the need for additional physical ports. Datacenter administrators do not need to concern themselves with multiple requests from the virtualized servers potentially creating conflict. Improves host utilization and enhances application performance.



Teknisk specifikation

Typ av enhet	Värdbussadapter
Formfaktor	Instickskort - låg profil
Gränssnittstyp (buss)	PCI Express 3.0

Portar	16Gb Fibre Channel x 2
Anslutningsteknik	Kabelansluten
Typ av kablage	Fiberoptisk
Datalänkprotokoll	4 GB Fibre Channel (kortvåg), 8 Gb fiberkanal (Short Wave), 16 Gb fiberkanal (kortvåg)
Dataöverföringshastighet	14.025 Gbps
Funktioner	Auto-negotiation

Expansionskortplatser	2 (totalt)/ 0 (ledig) x SFP+
Gränssnitt	2 x 16Gb Fibre Channel (Short Wave) - LC multiläge

Inkluderade tillbehör	Hållare för låg version, 2 x 16Gb SFP+, standardkonsol

Operativsystem erfordras	SUSE Linux Enterprise Server, Red Hat Enterprise Linux, Microsoft Windows Server 2008 R2 x64 Edition, Microsoft Windows Server 2008 (32/64-bits), VMware ESXi, VMware ESX

Designat för

HPE Apollo 4200 Gen10, 4200 Gen10 384TB 25Gb Capacity Server for Cohesity DataPlatform, 4200 Gen10 384TB Capacity Server for Cohesity DataPlatform, 4510 Gen10 HPE Nimble Storage dHCI Large Solution with HPE ProLiant DL380 Gen10 HPE ProLiant DL325 Gen10 Plus V2 Base, DL325 Gen10 Plus V2 Performance, DL345 Gen10 Plus, DL345 Gen10 Plus Base, DL345 Gen10 Plus Entry, DL365 Gen10 Plus, DL380 Gen10, DL380 Gen10 48TB Server for Cohesity DataPlatform, DL380 Gen10 96TB Server for Cohesity DataPlatform, DL380 Gen10 for SAP HANA Compute Block, DL380 Gen10 NVMe All Flash Server for Datera, DL380 Gen10 Server for CTERA, DL380 Gen10 SMB Networking Choice, DL385 Gen10 Plus, DL385 Gen10 Plus Entry, DL388 Gen10 Network Choice, DX360 Gen10 Plus, XL170r Gen10 Server for BlueData EPIC, XL190r Gen10, XL190r Gen10 for HPE Ezmeral Container Platform, XL220n Gen10 Plus, XL270d Gen10, XL270d Gen10 for HPE Ezmeral Container Platform, XL290n Gen10 Plus, XL645d Gen10 Plus HPE SimpliVity 325 Gen10 Node, 380 Gen10 G Node, 380 Gen10 H Node, 380 Gen10 Network Choice G Node, 380 Gen10 Network Choice H Node, 380 Gen10 Node
