Produktbeskrivning

How can you provide fast, reliable, and cost-effective connectivity in the data center with predictable performance? HPE StoreFabric SN2410M switches are ideal for modern server and storage networks. They are an ideal top-of-rack solution with 10 and 25 GbE or 100GbE systems with wire-speed Layer 2 and 3 features delivers predictable performance and zero packet loss at line-rate across all ports and packet sizes. Optimized for storage and efficient design provide enterprise-level performance with attractive economics and outstanding ROI. Networks built on the HPE SN2410M are fast, reliable, and scalable while also being affordable and easy to manage. They support all types of primary and secondary storage, providing consistently fair, fast, low-latency connectivity even under heavy workloads or a mix of different port speeds. This makes them ideal for storage, hyper converged, financial services, and media and entertainment deployments.



Egenskaper

High density data center switching

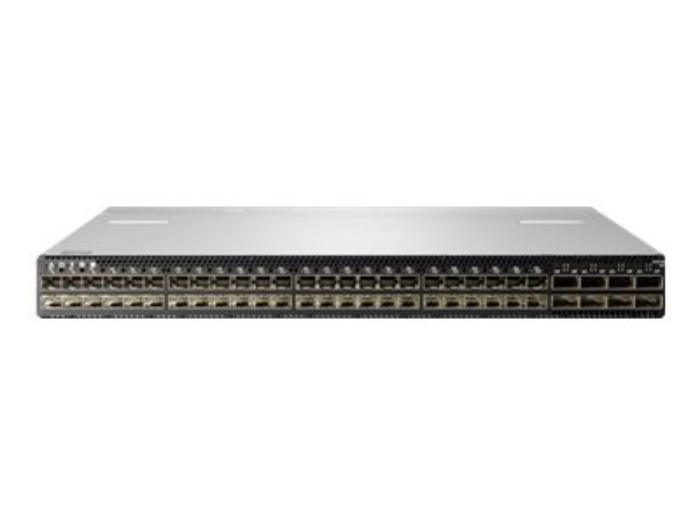

The HPE StoreFabric SN2410M Ethernet switch is a top-of-rack data center switch offering two form factor configurations: a 1U 48-port 25GbE SFP28 with 8-port 100GbE QSFP28, or a 1U 48-port 10GbE SFP+ with 8-port 100GbE QSFP28. Each switch offers cost-effective options with entry at 24-ports and a pay as you grow with a software license. Offering more flexibility to customers to add capacity when needed. Each switch delivers 100GbE ports which may be further split into four 25GbE ports or support for 40GbE which can be further split into four 10GbE.

Superior performance with future proof growth
The HPE StoreFabric SN2410M Ethernet switches deliver predictable and consistent throughput regardless of the packet size being transferred, the mixture of ports which are sending data and even within mixed speed environments. Provide wire-rate performance with zero packet loss across all frame sizes, avoiding any negative impact on applications that could occur with frame loss as unexpected packet loss is unacceptable in modern data centers, especially within a storage network.

Optimized for demanding enterprise data centers and storage environments
The HPE StoreFabric SN2410M switch provides a flexible combination of ports, allowing for great flexibility, efficiency, simplifying scale-out environments and saving on total cost of ownership. Optimized port configuration enables high-speed rack connectivity to the server at 10GbE or 25GbE speeds with 100GbE uplink ports that allow for a variety of blocking ratios that suit specific application requirements.

Unleash storage performance and improve flash ROI
The HPE StoreFabric SN2410M switch provides ultra-low latency of under 300ns port-to-port. This is advantageous for flash storage which has moved latency bottlenecks form storage access to the network, as well as for the burst nature of today's software defined and cloud data centers traffic. The buffering architecture of the HPE SN2410M switches provides superior micro burst absorption for applications that burst data at random intervals.



Teknisk specifikation

Typ av enhet	Switch - 48 portar - L3 - Administrerad
Modell	Rackmonterbar 1U
Undertyp	25 Gigabit Ethernet
Portar	48 x 25 Gigabit SFP28 + 8 x 100 Gigabit QSFP28
Prestanda	Växlingskapacitet: 4 Tbps Bearbetningshastighet: 5,95 Bpps Genomslagslatens: 300 ns
Protokoll för administration på distans	SNMP, Telnet, SSH, CLI
Verifieringsmetod	RADIUS, TACACS+, LDAP
Funktioner	IGMP snooping, portspegling, lagra och vidarebefordra, stöd för IPv6, stöd för snabbt trädspanningsprotokoll (RSTP), stöd för redundansprotokoll för virtuell rutt (VRRP), stöd för MSTP (Multiple Spanning Tree Protocol), stöd för byte av datacenterbrygga (DCBX), stöd för ACL (Access Control List), Quality of Service (QoS), Bidirectional Forwarding Detection (BFD), IPv4-support, LLDP-support, DHCP-relä, sFlow v5, 802.1x-autentisering, 16 MB paketbuffert, OpenFlow-support, Protokollbaserad VLAN-support, Storm Control, RDMA over Converged Ethernet (RoCE), random early detection (RED), Explicit Congestion Notification (ECN), Priority-Based Flow Control (PFC), Virtual Extensible LAN (VXLAN), Multi Chassis Link Aggregation Group (MLAG), Open Shortest Path First (OSPF), Root Guard, Loop Guard, Voice VLAN, Top-of-Rack (ToR), STP BPDU Guard, BPDU Filter, Protocol Independent Multicast (PIM), fack för hotswapfläkt
Standarder som följs	X.509
RAM	8 GB
Flash-minne	32 MB
Statusindikatorer	System, status, fläkt

Gränssnitt	48 x 25Gbit LAN SFP28 8 x 100Gbit LAN QSFP28 1 x USB Type A 2 x hantering 1 x konsol RJ-45

Nätdel	Intern strömförsörjning - hot-plug
Installerat antal	2
Max antal som stöds	2
Redundant ström	Ja
Schema för redundant ström	1+1
Effekt	460 Watt
Nätspänning	AC 120/230 V (50/60 Hz)
Energiförbrukning vid drift	165 Watt
Egenskaper	Ström-till-port luftflöde

Inkluderade tillbehör	2 strömkablar (C13 till C14), 4 fack för intagsfläktar, fast rackmonteringssats, 2 x PSU-kabelhållarsats
Medföljande kablar	1 x seriell kabel
Rackmonteringssats	Inkluderat
Standarder som följs	EMC, FIPS 140-2, X.509, EN 61000-4-5:2006, EN 61000-4-11:2004, UL 60950-1:2007, EN 61000-3-3:2013, EN 55024:2010, EN 61000-4-3:2006+A1:2008+A2:2010, EN 61000-4-6:2014, EN 61000-3-2:2014, IEC60950-1:2005, Second edition + Am1:2009 + Am2:2013, VCCI V-3/2015.04 Class A, EN 55032:2012 Class A, ICES-003:2016 issue 6 Class A, LV, TR CU 020/2011, TR CU 004/2011, EN 60950-1:2006+A11:2009+A1:2010+A12:2011+AC:2011+A2:2013, CAN/CSA C22.2 No. 60950-1:2007+A1:2011+A2:2014, DSTU EN 55032:2014, DSTU EN 60950-1:2014, EN 61000-4-2:2002, EN 61000-4-4:2004+A1:2010, FCC CFR47 Part 15 B 2017 Class A, AS/NZS CISPR32:2015 Class A, KN22:2009 Class A, KN24:2009

Bredd	43.6 cm
Djup	43.8 cm
Höjd	4.39 cm
Vikt	8.52 kg

Service och support	Begränsad garanti - material och tillverkning - 3 år - på platsen

Min temperatur vid drift	0 °C
Max temperatur vid drift	40 °C
Luftfuktighet vid drift	10 - 85 % (icke-kondenserande)

Designat för	HPE Apollo 4200 Gen10 192TB Qumulo Hybrid Node, 4200 Gen10 336TB Archive Node with 25Gb NIC for Qumulo, 4200 Gen10 Qumulo Archive Node, 4200 Gen10 Qumulo Hybrid Node, 4200 Qumulo Archive Node, 4200 Qumulo Hybrid Node, 4200 Qumulo Node
