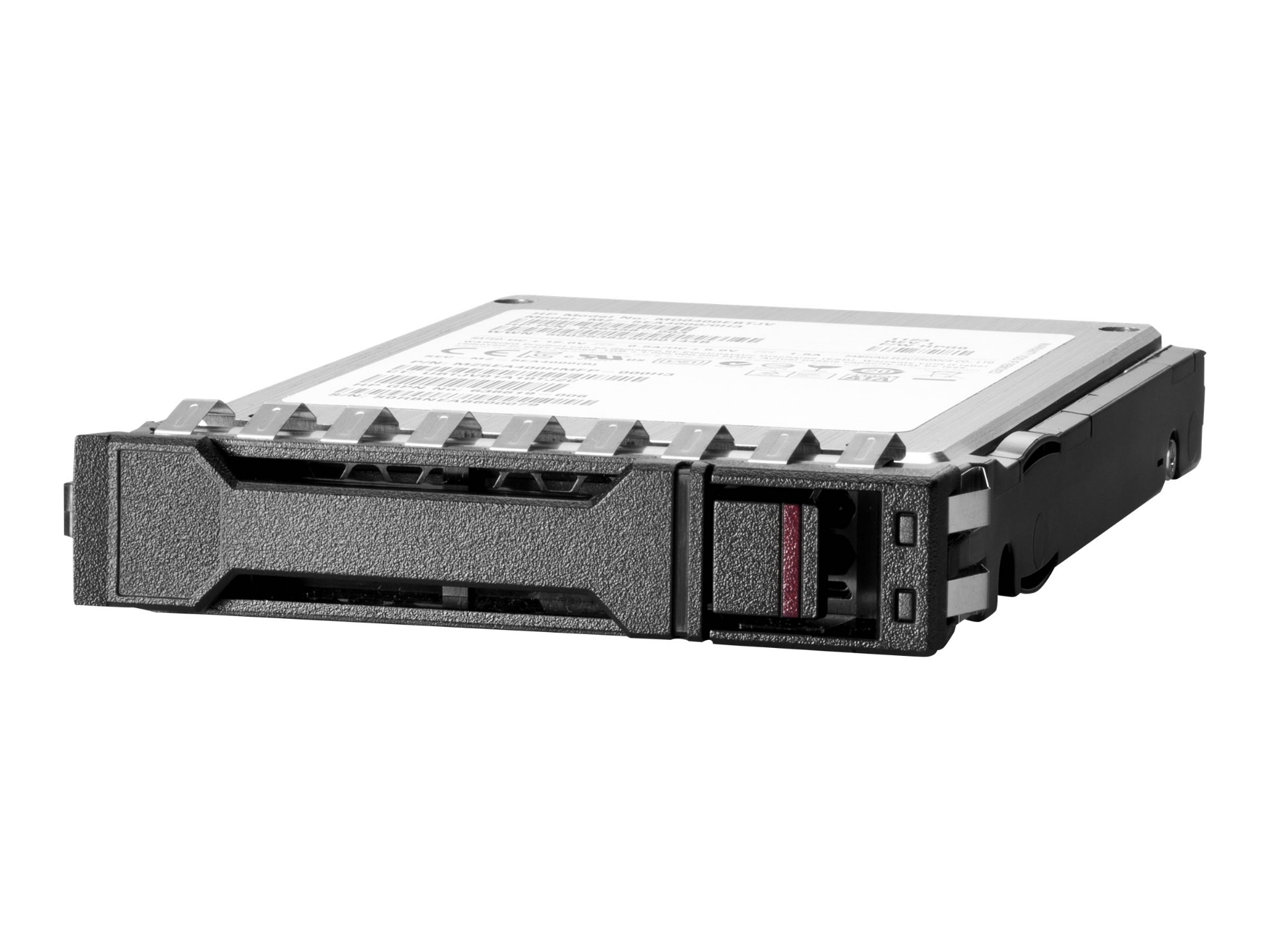

Produktbeskrivning
HPE 12Gb SAS Write Intensive (WI) SSDs are ideal for software-defined storage cache tier, big data analytics and high performance compute.
Achieve higher IOPS and lower latency to enhance the performance of your data center.
HPE 12Gb SAS Write Intensive SSDs offer an endurance of 10 DWPD.
Maintain data accuracy with full data-path error detection.
Egenskaper
Provides simplicity and lower total cost of ownershipHPE Solid State Drives deliver reduced power consumption, providing improved IOPS/W versus rotating media while reducing datacenter cooling costs. With compatibility in management tools, SmartSSD Wear Gauge prevents data loss and monitors SSD life.
Increases the efficiency of your serverHPE Solid State Drives allow you to get the most out of your server with more compute per watt with SSDs. Utilizes the unique Power Advisor tool for SSD and system power planning. Uses self-describing LED's that reduces drive activity confusion.
Accelerate workload performance with high performing HPE solid state drivesHPE Solid State Drives (SSDs) achieve higher Input/Output Per Second (IOPs) to enhance the performance of your data center. Experience the latest technology in the market and the Industry-leading performance of 12 Gb SAS SSDs. Gives you faster access to data with excellent latency.
Delivers the high reliability you can count on in your data centerHPE Solid State Drives are rigorously tested 2.4 million hours to achieve the quality standards you need. You can rely on SSDs in various environments as they can tolerate significantly high operating shock and vibration levels. HPE firmware provides compatibility with ProLiant Server series and HPE controllers for consistency of performance.
Teknisk specifikation
Allmänt
| Typ av enhet | SSD-enhet - hot-swap |
|---|
| Kapacitet | 400 GB |
|---|
| NAND-flashminnestyp | Trippelnivåcell (TLC) |
|---|
| Formfaktor | 2.5" SFF |
|---|
| Gränssnitt | SAS 22.5Gb/s |
|---|
| Egenskaper | Digitally Signed Firmware |
|---|
| Höjd | 15 mm |
|---|
| Kombinerad med | HPE Basic Carrier |
|---|
Prestanda
| Antal skrivningar per dag (DWPD) | 10 |
|---|
| SSD-hållbarhet | 7134 TB |
|---|
| Hårddiskens överföringshastighet | 2.4 GBps (extern) |
|---|
| Intern datafrekvens | 1080 MBps (läs)/ 1035 MBps (skriv) |
|---|
| 4 KB Random Read | 173000 IOPS |
|---|
| 4 KB Random Write | 135000 IOPS |
|---|
Expansion och anslutningar
| Gränssnitt | 1 x SAS 22.5Gb/s |
|---|
| Kompatibelt fack | 2.5" SFF |
|---|
Strömtillförsel
| Strömkonsumtion | 2.77 Watt (inaktiv)
5.72 Watt (slumpmässig läsning)
5.72 Watt (slumpmässig skrift)
6.68 Watt (sekvensiell läsning)
8.29 Watt (sekvensiell skrift)
5.72 Watt (slumpmässig läsning/skrivning)
8.29 Watt (max) |
|---|
Tillverkarens garanti
| Service och support | Begränsad garanti - delar - 3 år |
|---|
Kompatibilitetsinformation
| Designat för | HPE ProLiant DL20 Gen10 Plus (2.5"), DL20 Gen10 Plus Base (2.5"), DL20 Gen10 Plus Entry (2.5"), DL20 Gen10 Plus High Performance (2.5"), DL20 Gen10 Plus Performance (2.5"), DL325 Gen10 Plus V2 (2.5"), DL325 Gen10 Plus V2 Base (2.5"), DL325 Gen10 Plus V2 for Weka Base Tracking (2.5"), DL325 Gen10 Plus V2 Performance (2.5"), DL345 Gen10 Plus (2.5"), DL345 Gen10 Plus Base (2.5"), DL345 Gen10 Plus Entry (2.5"), DL360 Gen10 Plus (2.5"), DL360 Gen10 Plus All-NVMe Server for Software Defined Storage (2.5"), DL360 Gen10 Plus for Weka Base Tracking (2.5"), DL360 Gen10 Plus Network Choice (2.5"), DL365 Gen10 Plus (2.5"), DL380 Gen10 Plus (2.5"), DL380 Gen10 Plus Network Choice (2.5"), ML30 Gen10 Plus (2.5"), ML30 Gen10 Plus Entry (2.5"), ML30 Gen10 Plus Performance (2.5")
HPE SimpliVity 325 Gen10 Plus V2 Node (2.5") |
|---|
