Produktbeskrivning
Expand your desktop with an external HDMI monitor or connect a projector or TV with HDMI. The docking station supports Ultra HD 4K video up to 3840×2160@60Hz including audio.
The station also offers USB-C Power Delivery up to 100W, which is designed to power a connected laptop or tablet using your original AC adapter. The docking station also supports charging connected USB mobile devices such as smartphones, e-book readers, media players, navigation devices and tablets.
You will also have 3x USB 3.2 Gen1 (5 Gbps) port, 1x Ethernet GLAN RJ-45 port, 1x USB-C Power Delivery port, 1x Combo audio jack (headphone and microphone), 1x SD card reader and 1x microSD card reader.
Connect the dock with a single cable (30cm) to your computer’s USB-C, USB4 or Thunderbolt 3/4 port and you’re ready to use it immediately. Driver installation is automatic from the system.
This docking station is suitable for use with all laptops and other devices that are equipped with a USB-C connector with video transfer support (USB-C DisplayPort Alt mode). In case of incompatibility, your new i-tec product may not work properly.
The dock also comes with a USB-C power adapter with a total of 100W (USB-C port: 100W)
- Connect external monitor up to 4K/60Hz
- Power delivery: up to 100 W (100 W power adapter included)
- 3x USB 3.2 Gen1 (5 Gbps), 1x SD and 1x microSD allow you to easily connect your USB devices and peripherals.
- Gigabit Ethernet RJ-45 provides reliable, robust, high-speed Internet connectivity with support for 10/100/1000 Mbps speeds
- Combination jack for audio and microphone
- Universal USB-C charger 100W
- Supports Windows 10/11, macOS, Android, ChromeOS, iPad OS and Linux
Viktiga egenskaper

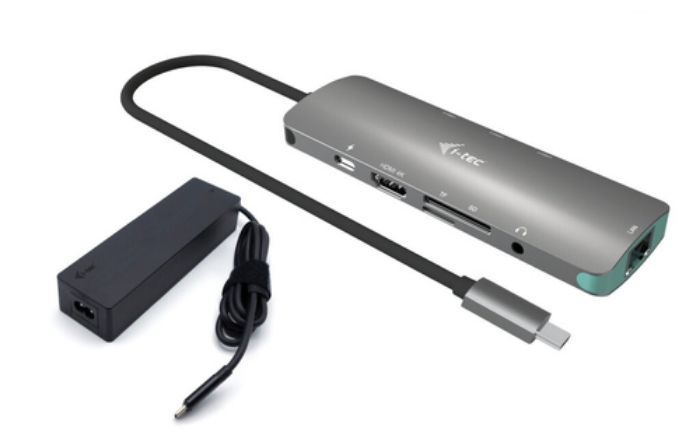

i-tec USB-C Metal Nano Docking Station 4K HDMI LAN with Power Delivery 100W + Universal Charger 100W. Connectivity technology: Wired, Host interface: USB 3.2 Gen 1 (3.1 Gen 1) Type-C, USB Power Delivery up to: 100 W. Ethernet LAN data rates: 100,1000 Mbit/s. Product colour: Grey, Compatible memory cards: MicroSD (TransFlash), SD, Data transfer rate: 5 Gbit/s. Power source type: AC, Power supply: 100 W, Output voltage: 5 / 9 / 12 / 15 / 20 V. Other operating systems supported: Android, ChromeOS
Teknisk specifikation
Ports & interfaces
| Connectivity technology | Wired |
|---|
| Host interface | USB 3.2 Gen 1 (3.1 Gen 1) Type-C |
|---|
| USB 2.0 ports quantity | 0 |
|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
|---|
| USB Power Delivery (USB PD) | Yes |
|---|
| USB Power Delivery up to | 100 W |
|---|
| HDMI ports quantity | 1 |
|---|
| Combo headphone/mic port | Yes |
|---|
Network
| Ethernet LAN | Yes |
|---|
| Ethernet LAN (RJ-45) ports | 1 |
|---|
| Ethernet LAN data rates | 100,1000 Mbit/s |
|---|
Performance
| Product colour | Grey |
|---|
| Card reader integrated | Yes |
|---|
| Compatible memory cards | MicroSD (TransFlash),SD |
|---|
| Data transfer rate | 5 Gbit/s |
|---|
| HD type | 4K Ultra HD |
|---|
| Maximum refresh rate | 120 Hz |
|---|
| Number of displays supported | 1 |
|---|
| Housing material | Aluminium |
|---|
Power
| Power source type | AC |
|---|
| Power supply | 100 W |
|---|
| Output voltage | 5 / 9 / 12 / 15 / 20 V |
|---|
| Output current | 5 A |
|---|
| Compatible power plug types | EU |
|---|
Software
| Windows operating systems supported | Yes |
|---|
| Mac operating systems supported | Yes |
|---|
| Linux operating systems supported | Yes |
|---|
| Other operating systems supported | Android,ChromeOS |
|---|
Weight & dimensions
| Width | 130 mm |
|---|
| Depth | 43 mm |
|---|
| Height | 15 mm |
|---|
| Weight | 85 g |
|---|
Packaging content
| AC adapter included | Yes |
|---|
| Manual | Yes |
|---|
