Produktbeskrivning
Exceptional performance, ultra-fast data transfer and support for up to 8K resolution. One of the most powerful docking stations on the market!
Crystal clear image quality, super-fast internet, and the ability to transfer data at speeds of up to 4 GB per second thanks to the integrated Thunderbolt” 4 output port. You can also, of course, connect your headphones or audio and charge your laptop (92W), all using one single cable.
Thanks to the integrated DP 1.4 protocol, you can connect this dock to a monitor with a resolution of up to 8K (7680 x 4320) with a refresh rate of 30 Hz, which is equivalent to the resolution of four monitors, each at 4K resolution. This makes it the ideal solution for graphic designers, analysts, developers, film editors, or high-definition video enthusiasts and lovers.
The dock is now compatible not only with Thunderbolt” 4 ports, but also USB-C*, making it a flexible solution for businesses and users who run laptops and tablets with different ports.
* Only one (4K/60 Hz) monitor is supported when connected to USB-C.
Viktiga egenskaper

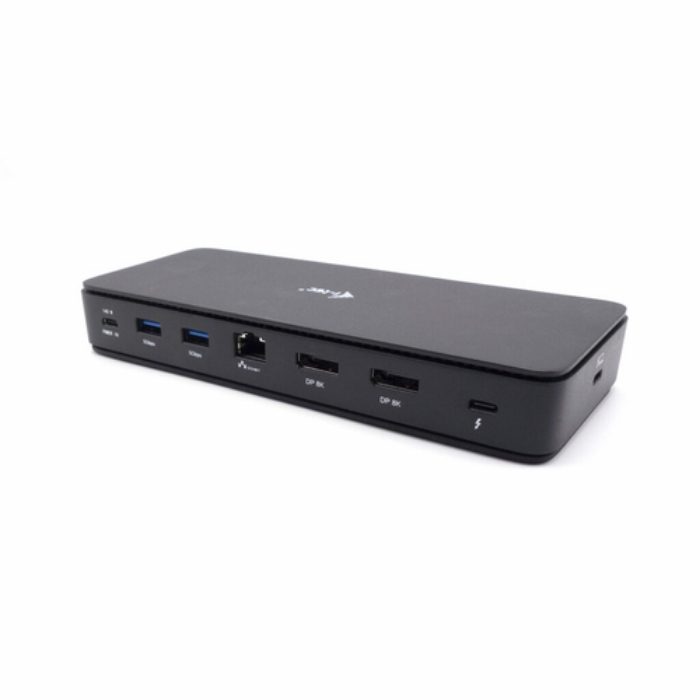

i-tec Thunderbolt 4 Dual DisplayPort Docking Station PRO + Power Delivery 92 W. Connectivity technology: Wired, Host interface: Thunderbolt 4, USB Power Delivery up to: 92 W. Ethernet LAN data rates: 10,100,1000,2500 Mbit/s. Product colour: Black, Compatible memory cards: MicroSD (TransFlash), SD, Data transfer rate: 40 Gbit/s. Output voltage: 28 V, Output current: 5 A, Thunderbolt 4 cable length: 1 m. Width: 197 mm, Depth: 79 mm, Height: 30 mm
Teknisk specifikation
Ports & interfaces
| Connectivity technology | Wired |
|---|
| Host interface | Thunderbolt 4 |
|---|
| USB 2.0 ports quantity | 1 |
|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
|---|
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
|---|
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
|---|
| USB Power Delivery (USB PD) | Yes |
|---|
| USB Power Delivery up to | 92 W |
|---|
| HDMI ports quantity | 0 |
|---|
| DisplayPorts quantity | 2 |
|---|
| Thunderbolt 4 ports quantity | 2 |
|---|
| Combo headphone/mic port | Yes |
|---|
| Headphone connectivity | 3.5 mm |
|---|
Network
| Ethernet LAN | Yes |
|---|
| Ethernet LAN (RJ-45) ports | 1 |
|---|
| Ethernet LAN data rates | 10,100,1000,2500 Mbit/s |
|---|
Performance
| Product colour | Black |
|---|
| Card reader integrated | Yes |
|---|
| Compatible memory cards | MicroSD (TransFlash),SD |
|---|
| Data transfer rate | 40 Gbit/s |
|---|
| Maximum digital resolution | 7680 x 4320 pixels |
|---|
| Maximum refresh rate | 60 Hz |
|---|
| Number of displays supported | 2 |
|---|
Power
| Output current | 5 A |
|---|
| Output voltage | 28 V |
|---|
| Thunderbolt 4 cable length | 1 m |
|---|
Software
| Windows operating systems supported | Yes |
|---|
| Mac operating systems supported | Yes |
|---|
| Linux operating systems supported | Yes |
|---|
Weight & dimensions
| Width | 197 mm |
|---|
| Depth | 79 mm |
|---|
| Height | 30 mm |
|---|
| Height (front) | 286 mm |
|---|
Packaging content
| Quick start guide | Yes |
|---|
| AC adapter included | Yes |
|---|
| Cables included | Thunderbolt,USB Type-C |
|---|
