Produktbeskrivning

Experience a breakthrough in docking technology with a high-performance, universal docking station designed for full remote management. Thanks to its dedicated LAN port, IT administrators can control the dock from anywhere *. The remote management software is available as an optional add-on and can be purchased at any time. Of course, the docking station operates at full functionality even without it; the only limitation is the absence of remote management features. And best of all – Manageability works without a host connection — just power and LAN required. NOTE: The software is available for Windows computers only.

A next-generation, high-performance Thunderbolt” 4 docking station that delivers output to up to two external 4K monitors or a single 8K display. Compatible with virtually all notebooks equipped with USB-C**, USB4, or Thunderbolt” 3/4/5 ports, and supporting all major operating systems.

With multiple USB ports (including USB 3.2 Gen 2 with speeds up to 10 Gbps), a Thunderbolt” 4 port offering either 8K video or ultra-fast 40 Gbps data transfer, and a reliable, high-speed LAN connection, this docking station is the ideal solution for demanding professionals. Naturally, it also supports up to 90W power delivery to keep your notebook or tablet charged.

- Connect a single 8K display or up to two external monitors in resolutions up to 4K**
- Power delivery up to 90 W

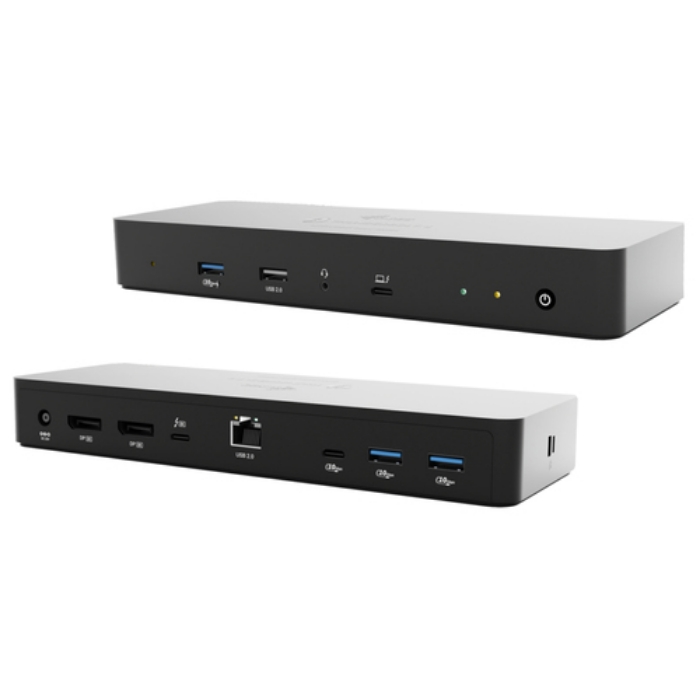

- 2× DisplayPort and 1× Thunderbolt” 4 port available
- 5× USB ports: 1× USB-A (10 Gbps, BC 1.2 fast charging), 2× USB-A (10 Gbps), 1× USB-A (2.0), and 1× USB-C (Gen 2, 10 Gbps)
- Intelligent Gigabit Ethernet (RJ-45) provides reliable, high-speed connectivity with 10/100/1000 Mbps support and seamless remote management functionality
- Combined audio/microphone jack
- Kensington lock slot provides anti-theft protection, ideal for shared office spaces or public areas
- Power switch on the docking station allows maximum energy savings
- Supports Windows 10/11, macOS, iPadOS, Android, ChromeOS, and Linux (latest versions)

* Because of the way Thunderbolt” technology works, i-tec DockMate can manage the docking station itself (such as remote on/off, scheduled power saving, or firmware updates), but it cannot directly control individual ports like USB, LAN, audio or display outputs.

** Only one external monitor is supported when connected via a USB-C port.



Viktiga egenskaper

i-tec Thunderbolt 4 Intelligent Dual Display Docking Station + Power Delivery 90W. Connectivity technology: Wired, Host interface: Thunderbolt 4, USB Power Delivery up to: 90 W. Ethernet LAN data rates: 10,100,1000 Mbit/s. Product colour: Black, Data transfer rate: 40 Gbit/s, Maximum digital resolution: 7680 x 4320 pixels. Power supply: 135 W, Output voltage: 20 V, Output current: 6.75 A. Other operating systems supported: Android, ChromeOS, iPadOS



Teknisk specifikation

Connectivity technology	Wired
Host interface	Thunderbolt 4
USB 2.0 ports quantity	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	3
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	1
USB Power Delivery (USB PD)	Yes
USB Power Delivery up to	90 W
HDMI ports quantity	0
DisplayPorts quantity	2
DisplayPort version	1.4
Thunderbolt 4 ports quantity	2
Combo headphone/mic port	Yes
Headphone connectivity	3.5 mm
DC-in jack	Yes

Ethernet LAN	Yes
Ethernet LAN (RJ-45) ports	1
Ethernet LAN data rates	10,100,1000 Mbit/s

Product colour	Black
Card reader integrated	No
Data transfer rate	40 Gbit/s
Maximum digital resolution	7680 x 4320 pixels
Number of displays supported	2
Maximum refresh rate	360 Hz
Cable lock slot	Yes
Cable lock slot type	Kensington
On/off switch	Yes
LED indicators	Yes

Power supply	135 W
Output current	6.75 A
Output voltage	20 V
Compatible power plug types	UK
Thunderbolt 4 cable length	1 m
Power cable length	1.5 m

Windows operating systems supported	Yes
Mac operating systems supported	Yes
Linux operating systems supported	Yes
Other operating systems supported	Android,ChromeOS,iPadOS

Width	220 mm
Depth	75 mm
Height	30 mm
Weight	295 g

Cables included	DC,Power,Thunderbolt
AC adapter included	Yes
Manual	Yes
