Produktbeskrivning

Extreme performance, ultra-fast data transfer, and support for resolutions up to 8K/60 Hz. The most powerful i-tec docking station on the market!

Crystal-clear image quality, lightning-fast internet, and data transfer speeds of up to 12 GB per second thanks to the integrated Thunderbolt 5 output port. Of course, you can also connect headphones or audio devices and charge your laptop (up to 140 W**) – all through a single cable (a 100 cm certified Thunderbolt 5 cable is included in the package).

Thanks to the integrated DP 1.4 protocol, you can connect this docking station to a monitor with up to 8K resolution (7680 x 4320) at 60 Hz refresh rate – equivalent to the resolution of four 4K monitors. This makes it an ideal solution for graphic designers, analysts, developers, video editors, and high-resolution video enthusiasts.

The docking station is now compatible not only with Thunderbolt 5/4/3 ports but also with USB4 and USB-C, making it a flexible solution for businesses and users who work with laptops and tablets equipped with different types of ports.

- Support for up to 4 external monitors* with resolutions up to 2x 8K/60 or 4x 4K/60 Hz
- Video ports: 2x HDMI, 2x Thunderbolt 5
- 1x USB-C (10 Gbps)
- 4x USB-A (10 Gbps) with BC 1.2 fast charging support (7.5W)
- LAN port with speeds up to 2.5 Gbps (10/100/1000/2500 Mbps)
- 3.5 mm audio/microphone port
- 1x SD/microSD slot
- Laptop charging up to 140 W**
- Power button for docking station

* The maximum number of connected monitors depends on the performance of your computer and operating system.

With Thunderbolt 5 and Windows laptops, you can connect up to four monitors (the laptop lid must be closed). With Apple laptops running macOS, a maximum of two external monitors is supported.

** If your laptop or tablet supports the modern USB-C Power Delivery PD 3.1 charging protocol, the docking station provides up to 140 W charging power (with PD 3.0, the charging power is limited to 100 W).



Viktiga egenskaper

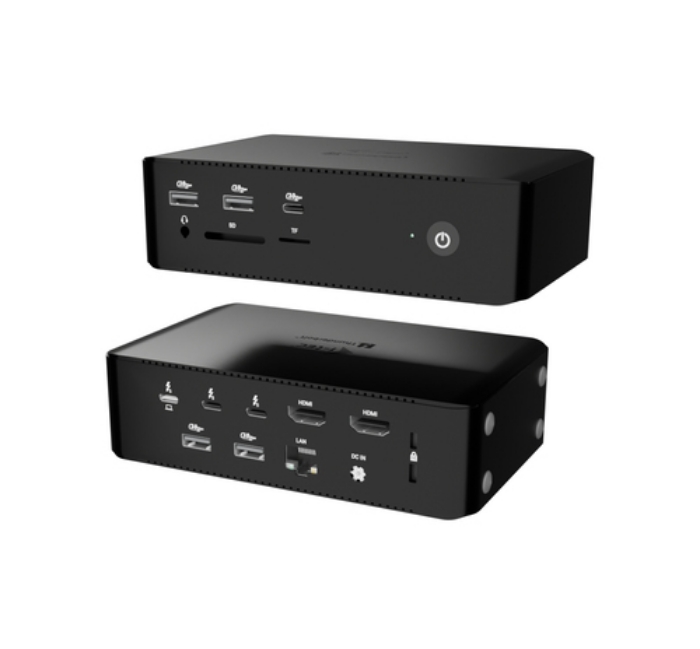

i-tec Thunderbolt5 Quattro Display Docking Station, 5x USB, 2.5 GLAN + Power Delivery 140W. Connectivity technology: Wired, Host interface: Thunderbolt 5, USB Power Delivery up to: 140 W. Ethernet LAN data rates: 10,100,1000,2500 Mbit/s. Product colour: Black, Compatible memory cards: MicroSD (TransFlash), SD, Data transfer rate: 120 Gbit/s. Power source type: AC, Power supply: 160 W, Output voltage: 21 V. Other operating systems supported: Android, ChromeOS, iPadOS



Teknisk specifikation

Connectivity technology	Wired
Host interface	Thunderbolt 5
USB 2.0 ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	4
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	1
USB Power Delivery (USB PD)	Yes
USB Power Delivery up to	140 W
HDMI ports quantity	2
Thunderbolt 5 ports quantity	2
Combo headphone/mic port	Yes
Headphone connectivity	3.5 mm
DC-in jack	Yes

Ethernet LAN	Yes
Ethernet LAN (RJ-45) ports	1
Ethernet LAN data rates	10,100,1000,2500 Mbit/s

Product colour	Black
Card reader integrated	Yes
Compatible memory cards	MicroSD (TransFlash),SD
Data transfer rate	120 Gbit/s
Maximum digital resolution	7680 x 4320 pixels
Number of displays supported	4
Maximum refresh rate	240 Hz
Cable lock slot	Yes
Cable lock slot type	Kensington
On/off switch	Yes
LED indicators	Yes

Power source type	AC
Power supply	160 W
Output current	7.61 A
Output voltage	21 V
Compatible power plug types	EU

Windows operating systems supported	Yes
Mac operating systems supported	Yes
Linux operating systems supported	Yes
Other operating systems supported	Android,ChromeOS,iPadOS

Width	154 mm
Depth	96 mm
Height	45 mm
Weight	692 g

Manual	Yes
AC adapter included	Yes
Cables included	Thunderbolt
