Produktbeskrivning

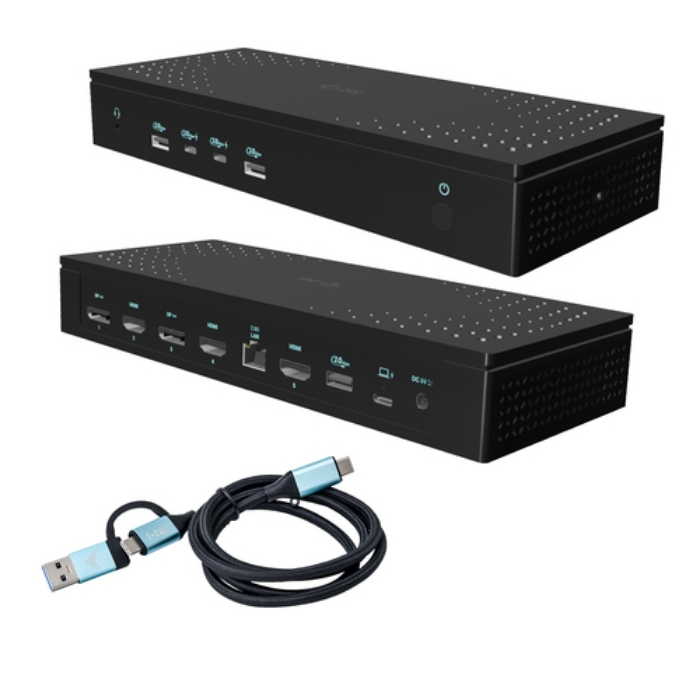

The highest performance docking station possible! Supports up to five external monitors* with 4K/60Hz resolution. And one monitor can even run at 8K/60Hz! The ideal dock product for users who require multiple monitors without compromising on image stability, resolution and refresh rate. The dock also features two USB-C fast charging ports (with up to 15W charging power), especially for charging smartphones and tablets, as well as fast USB ports, a 2.5Gbps LAN port, and other peripherals.
The docking station can be connected to virtually any notebook regardless of make, model or operating system type. Any USB port* is sufficient.
The dock can be installed behind the monitor (if it supports a standard VESA mount), using the i-tec VESA mount.
- Support for up to 5 external monitors* with 1x 8k/60Hz or 5x 4K/60Hz resolution
- Video ports: 3x HDMI* and 2x DP
- 2x USB-C (10 Gbps), with up to 15W charging support
- 3x USB-A (10 Gbps)
- LAN port with up to 2.5 Gbps (10/100/1000/2500 Mbit)
- 5 mm audio/microphone port
- Laptop power up to 100 W
- Docking station on/off button
- Support for installation behind a monitor
* If connected via USB-A, only four monitors via DP and HDMI ports (video ports 1-4) will be supported and notebook/tablet charging will not be possible.
Viktiga egenskaper
i-tec Universal 5x 4K/60Hz Display Docking Station + Power Delivery 100W. Connectivity technology: Wired, Host interface: USB 3.2 Gen 1 (3.1 Gen 1) Type-C, USB Power Delivery up to: 100 W. Ethernet LAN data rates: 10,100,1000,2500 Mbit/s. Product colour: Black, Data transfer rate: 10 Gbit/s, HD type: 8K Ultra HD. Power supply: 130 W, Output voltage: 20 V, Output current: 6.5 A. Other operating systems supported: Android, ChromeOS
Teknisk specifikation
Ports & interfaces
| Connectivity technology | Wired |
|---|
| Host interface | USB 3.2 Gen 1 (3.1 Gen 1) Type-C |
|---|
| USB 2.0 ports quantity | 0 |
|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 0 |
|---|
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 3 |
|---|
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 2 |
|---|
| USB Power Delivery (USB PD) | Yes |
|---|
| USB Power Delivery up to | 100 W |
|---|
| HDMI ports quantity | 3 |
|---|
| DisplayPorts quantity | 2 |
|---|
| Combo headphone/mic port | Yes |
|---|
| DC-in jack | Yes |
|---|
| USB Type-C DisplayPort Alternate Mode | Yes |
|---|
Network
| Ethernet LAN | Yes |
|---|
| Ethernet LAN (RJ-45) ports | 1 |
|---|
| Ethernet LAN data rates | 10,100,1000,2500 Mbit/s |
|---|
Performance
| Product colour | Black |
|---|
| Card reader integrated | No |
|---|
| Data transfer rate | 10 Gbit/s |
|---|
| HD type | 8K Ultra HD |
|---|
| Maximum digital resolution | 7680 x 4320 pixels |
|---|
| Number of displays supported | 5 |
|---|
| Maximum refresh rate | 60 Hz |
|---|
| Cable lock slot | Yes |
|---|
| Cable lock slot type | Kensington |
|---|
| VESA mounting | Yes |
|---|
| On/off switch | Yes |
|---|
| LED indicators | Yes |
|---|
Power
| Power supply | 130 W |
|---|
| Output current | 6.5 A |
|---|
| Output voltage | 20 V |
|---|
| Compatible power plug types | EU |
|---|
| USB cable length | 1 m |
|---|
Software
| Windows operating systems supported | Yes |
|---|
| Mac operating systems supported | Yes |
|---|
| Linux operating systems supported | Yes |
|---|
| Other operating systems supported | Android,ChromeOS |
|---|
Weight & dimensions
| Width | 245 mm |
|---|
| Depth | 98 mm |
|---|
| Height | 37 mm |
|---|
| Weight | 495 g |
|---|
Packaging data
| Package width | 259 mm |
|---|
| Package depth | 142 mm |
|---|
| Package height | 89 mm |
|---|
| Package weight | 1280 g |
|---|
Packaging content
| AC adapter included | Yes |
|---|
| Manual | Yes |
|---|
| Cables included | USB Type-A to USB Type-C |
|---|
