Produktbeskrivning

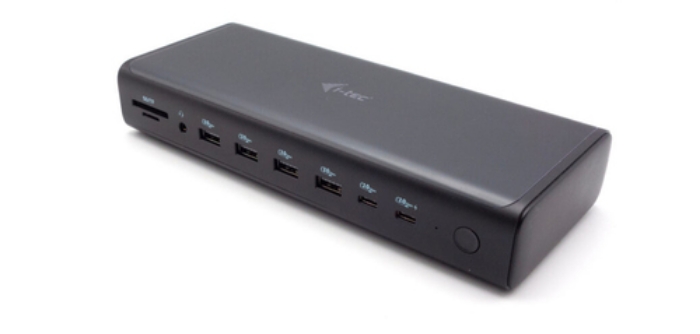

The ultimate performance docking station. Supports up to six external monitors* at 4K/60Hz. Or, two can run simultaneously even at 8K! The perfect product for users who require multiple monitors without compromising on image stability, resolution and refresh rate. The dock also features a USB-C fast charging port (with up to 30W charging power), especially for charging smartphones and tablets, fast USB ports, a 2.5 Gbps LAN port, as well as other peripherals.
The dock can be connected to virtually any laptop, regardless of make, model or operating system type. Any USB port is sufficient*.
The dock can be installed behind the monitor (if it supports a standard VESA mount), using the i-tec VESA mount.

- Support for up to 6 external monitors* with resolutions up to 2x 8k, or 6x 4K/60Hz
- Video ports: 2x HDMI, 2x DP, 2x USB-C MFDP (supporting video* or 10 Gbps data)
- 2x USB-C (10 Gbps), one supporting up to 30 W charging
- 4x USB-A 3.1 Gen. 1
- LAN port with up to 2.5 Gbps (10/100/1000/2500 Mbit)
- 5 mm audio/mic port
- 1x SD/microSD slot
- Laptop power supply up to 140 W **
- Docking station on/off button
- Support for installation behind a monitor

* If connected via USB-A, only four monitors will be supported via DP and HDMI ports, and laptop/tablet charging will not be possible.
** If your laptop or tablet supports the new and modern USB-C Power Delivery PD 3.1 charging protocol, the docking station will offer charging power up to 140W (if you have PD 3.0, the charging power will be 100W)



Viktiga egenskaper

i-tec Universal 6x 4K/60Hz Display Docking Station + Power Delivery 140W. Connectivity technology: Wired, Host interface: USB 3.2 Gen 1 (3.1 Gen 1) Type-C, USB Power Delivery up to: 140 W. Ethernet LAN data rates: 10,100,1000,2500 Mbit/s. Product colour: Black, Compatible memory cards: MicroSD (TransFlash), SD, Data transfer rate: 10 Gbit/s. Output voltage: 24 V, Output current: 10 A, Power consumption (max): 240 W. Other operating systems supported: Android, ChromeOS



Teknisk specifikation

Connectivity technology	Wired
Host interface	USB 3.2 Gen 1 (3.1 Gen 1) Type-C
USB 2.0 ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	4
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	2
USB Power Delivery (USB PD)	Yes
USB Power Delivery up to	140 W
HDMI ports quantity	2
DisplayPorts quantity	2
Combo headphone/mic port	Yes
Headphone connectivity	3.5 mm
DC-in jack	Yes

Ethernet LAN	Yes
Ethernet LAN (RJ-45) ports	1
Ethernet LAN data rates	10,100,1000,2500 Mbit/s

Product colour	Black
Card reader integrated	Yes
Compatible memory cards	MicroSD (TransFlash),SD
Data transfer rate	10 Gbit/s
Maximum digital resolution	7680 x 4320 pixels
Number of displays supported	6
Maximum refresh rate	144 Hz
Cable lock slot	Yes
Cable lock slot type	Kensington
VESA mounting	Yes
On/off switch	Yes
LED indicators	Yes

Output current	10 A
Output voltage	24 V
Power consumption (max)	240 W
Compatible power plug types	EU
USB cable length	1 m

Windows operating systems supported	Yes
Mac operating systems supported	Yes
Linux operating systems supported	Yes
Other operating systems supported	Android,ChromeOS

Width	218 mm
Depth	88 mm
Height	37 mm
Weight	546 g

Package width	270 mm
Package depth	181 mm
Package height	90 mm

Quick start guide	Yes
AC adapter included	Yes
Cables included	AC,USB Type-A to USB Type-C,USB Type-C
