Produktbeskrivning

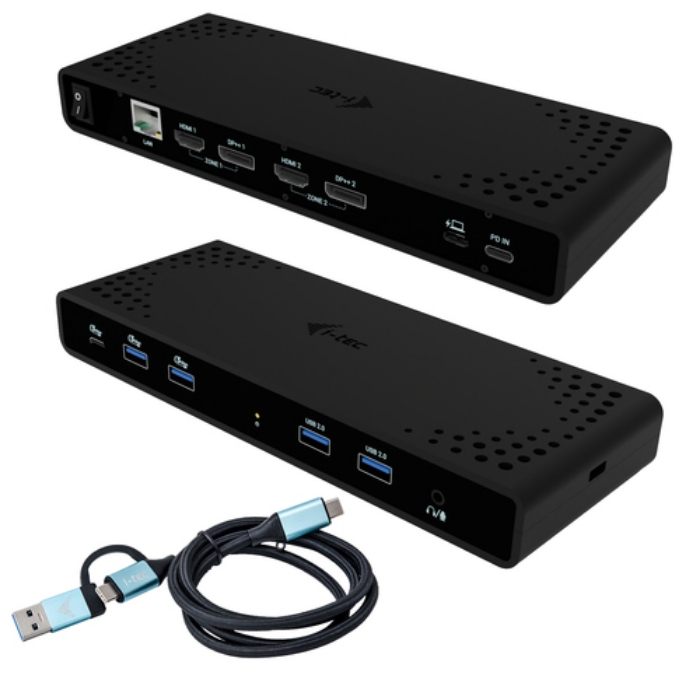

A powerful, yet affordable docking station that supports output to up to two external monitors in high resolution, up to 4K/60Hz. The dock can be used with virtually all laptops as it supports connection to all common ports: 3.0, USB-C, USB4 and Thunderbolt” 3/4 while supporting all common current operating systems.
Plenty of ports, a reliable and fast connection to the corporate network thanks to the integrated LAN port and support for installation behind a monitor all make this docking station the ideal companion for true professionals. The docking station can be used when simply connected to a laptop (without a USB-C charger), or with a USB-C charger (not included). In this case, it supports charging of a laptop or tablet, up to 85 W of power.
- Connection of 2 external monitors with up to 4K/60Hz resolution
- Power Delivery: up to 85W (when using a 100W USB-C charger; not included)
- 2 DisplayPort and 2 HDMI ports available
- 2x USB 3.1 Gen 1 (5 Gbps), 2x USB 2.0 and 1x USB-C Gen 1 (5 Gbps) make it easy to connect your USB devices and peripherals
- Gigabit Ethernet RJ-45 provides reliable, robust and high-speed Internet connectivity with support for 10/100/1000 Mbps speeds
- Combination audio and microphone connector
- Kensington lock provides anti-theft protection, especially in shared office environments or public places
- Docking station power switch for maximum power savings
- Docking station supports a VESA mount for smart vertical installation behind a VESA-enabled monitor
- Supports Windows 10/11, macOS, Android 5 or later, Chrome OS R51 or later, Linux Ubuntu
Charging is not supported when the dock is connected via USB 3.0.
Viktiga egenskaper
i-tec Universal Dual 4K Display Docking Station + Power Delivery 85W. Connectivity technology: Wired, Host interface: USB 3.2 Gen 1 (3.1 Gen 1) Type-C, USB Power Delivery up to: 85 W. Ethernet LAN data rates: 10,100,1000 Mbit/s. Product colour: Black, Data transfer rate: 5 Gbit/s, HD type: 4K Ultra HD. USB cable length: 1 m. Other operating systems supported: Android, ChromeOS
Teknisk specifikation
Ports & interfaces
| Connectivity technology | Wired |
|---|
| Host interface | USB 3.2 Gen 1 (3.1 Gen 1) Type-C |
|---|
| USB 2.0 ports quantity | 2 |
|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 2 |
|---|
| USB Power Delivery (USB PD) | Yes |
|---|
| USB Power Delivery up to | 85 W |
|---|
| HDMI ports quantity | 2 |
|---|
| DisplayPorts quantity | 2 |
|---|
| Combo headphone/mic port | Yes |
|---|
| DC-in jack | No |
|---|
Network
| Ethernet LAN | Yes |
|---|
| Ethernet LAN (RJ-45) ports | 1 |
|---|
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
|---|
Performance
| Product colour | Black |
|---|
| Card reader integrated | No |
|---|
| Data transfer rate | 5 Gbit/s |
|---|
| HD type | 4K Ultra HD |
|---|
| Number of displays supported | 2 |
|---|
| Maximum refresh rate | 60 Hz |
|---|
| Cable lock slot | Yes |
|---|
| Cable lock slot type | Kensington |
|---|
| VESA mounting | Yes |
|---|
| Charging function | Yes |
|---|
| Housing material | Acrylonitrile butadiene styrene (ABS) |
|---|
| LED indicators | Yes |
|---|
Power
| USB cable length | 1 m |
|---|
| Wireless charging | No |
|---|
Software
| Windows operating systems supported | Yes |
|---|
| Mac operating systems supported | Yes |
|---|
| Linux operating systems supported | Yes |
|---|
| Other operating systems supported | Android,ChromeOS |
|---|
Weight & dimensions
| Width | 223.8 mm |
|---|
| Depth | 83.4 mm |
|---|
| Height | 27.1 mm |
|---|
| Weight | 340 g |
|---|
Packaging data
| Package width | 238 mm |
|---|
| Package depth | 129 mm |
|---|
| Package height | 65 mm |
|---|
| Package weight | 520 g |
|---|
Packaging content
| Manual | Yes |
|---|
| Cables included | USB Type-A to USB Type-C,USB Type-C |
|---|
