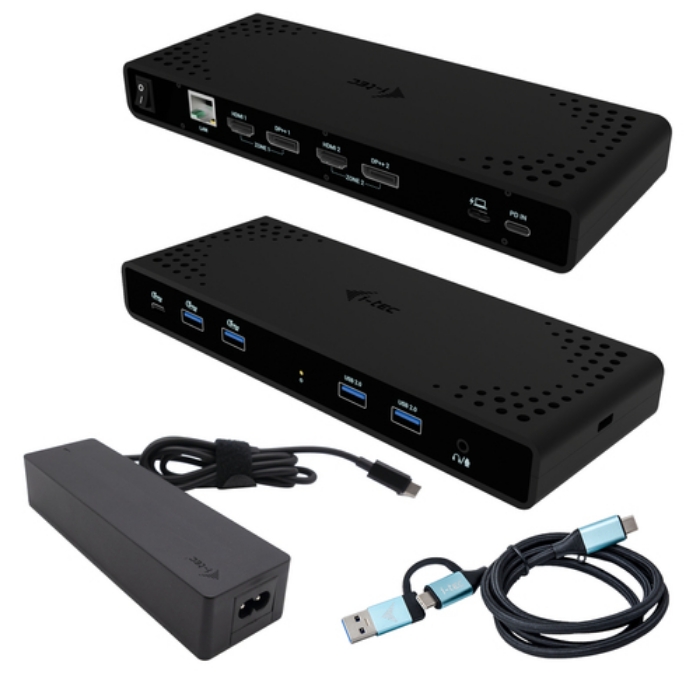

A powerful, yet affordable docking station that supports output to up to two external monitors in high resolution, up to 4K/60Hz. The dock can be used with virtually all laptops as it supports connection to all common ports: 3.0, USB-C, USB4 and Thunderbolt” 3/4 while supporting all common current operating systems.
Plenty of ports, a reliable and fast connection to the corporate network thanks to the integrated LAN port and support for installation behind a monitor all make this docking station the ideal companion for true professionals. The docking station can be used when simply connected to a laptop (without a USB-C charger), or with a USB-C charger (not included). In this case, it supports charging of a laptop or tablet, up to 85 W of power.

- Connection of 2 external monitors with up to 4K/60Hz resolution
- Power Delivery: up to 85W (when using a 100W USB-C charger; not included)
- 2 DisplayPort and 2 HDMI ports available
- 2x USB 3.1 Gen 1 (5 Gbps), 2x USB 2.0 and 1x USB-C Gen 1 (5 Gbps) make it easy to connect your USB devices and peripherals
- Gigabit Ethernet RJ-45 provides reliable, robust and high-speed Internet connectivity with support for 10/100/1000 Mbps speeds
- Combination audio and microphone connector
- Kensington lock provides anti-theft protection, especially in shared office environments or public places
- Docking station power switch for maximum power savings
- Docking station supports a VESA mount for smart vertical installation behind a VESA-enabled monitor
- Supports Windows 10/11, macOS, Android 5 or later, Chrome OS R51 or later, Linux Ubuntu

Charging is not supported when the dock is connected via USB 3.0.



Viktiga egenskaper

i-tec Universal Dual 4K Display Docking Station + Power Delivery 85W. Connectivity technology: Wired, Host interface: USB 3.2 Gen 1 (3.1 Gen 1) Type-C, USB Power Delivery up to: 85 W. Ethernet LAN data rates: 10,100,1000 Mbit/s. Product colour: Black, Data transfer rate: 5 Gbit/s, HD type: 4K Ultra HD. Power source type: AC, Power supply: 100 W, Compatible power plug types: EU. Other operating systems supported: Android, ChromeOS



Teknisk specifikation

Connectivity technology	Wired
Host interface	USB 3.2 Gen 1 (3.1 Gen 1) Type-C
USB 2.0 ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	2
USB Power Delivery (USB PD)	Yes
USB Power Delivery up to	85 W
HDMI ports quantity	2
DisplayPorts quantity	2
Combo headphone/mic port	Yes
DC-in jack	No

Ethernet LAN	Yes
Ethernet LAN (RJ-45) ports	1
Ethernet LAN data rates	10,100,1000 Mbit/s

Product colour	Black
Card reader integrated	No
Data transfer rate	5 Gbit/s
HD type	4K Ultra HD
Maximum refresh rate	60 Hz
Number of displays supported	2
Cable lock slot	Yes
Cable lock slot type	Kensington
VESA mounting	Yes
Charging function	Yes
Housing material	Acrylonitrile butadiene styrene (ABS)
LED indicators	Yes

Power source type	AC
Power supply	100 W
Compatible power plug types	EU
USB cable length	1 m
Wireless charging	No

Windows operating systems supported	Yes
Mac operating systems supported	Yes
Linux operating systems supported	Yes
Other operating systems supported	Android,ChromeOS

Width	223.8 mm
Depth	83.4 mm
Height	27.1 mm
Weight	340 g

Package width	238 mm
Package depth	129 mm
Package height	65 mm
Package weight	1030 g

AC adapter included	Yes
Manual	Yes
Cables included	AC,USB Type-A to USB Type-C,USB Type-C
