Produktbeskrivning

Experience a breakthrough in docking technology with a high-performance, universal docking station designed for full remote management. Thanks to its dedicated LAN port, IT administrators can control the dock from anywhere — even down to individual port-level management. The remote management software is available as an optional add-on and can be purchased at any time. Of course, the docking station operates at full functionality even without it; the only limitation is the absence of remote management features. And best of all – Manageability works without a host connection — just power and LAN required.

A powerful office docking station supporting super-fast USB Gen 2 ports with fast charging. Dock supports output to up to two external monitors in up to 4K high resolution. The dock can be used with virtually all notebooks as it supports connection to all common ports: USB-A, USB-C, USB4 and Thunderbolt” 3/4/5, while supporting all common current operating systems.

Plenty of USB reliable and fast connection to the corporate network thanks to the integrated Intelligent LAN port and support for installation behind the monitor all make this docking station the ideal companion for true professionals. Of course, it supports charging of your laptop or tablet, up to 100 W.

- Connect to 2 external monitors in resolutions up to 4K/60 Hz
- Power delivery: up to 100 W
- 2 DisplayPort and 2 HDMI ports available
- 2x USB-C Gen 2 (10 Gbps), one with power delivery 20W, 1x USB-A 3.2 Gen 2 (10 Gbps) with Fast Charge 7.5W, 2x USB-A 3.2 Gen 2 (10 Gbps) and 2x USB-A 3.2 Gen 1 (5 Gbps) allow you to easily connect your USB devices and peripherals.
- Intelligent Gigabit Ethernet RJ-45 provides reliable, robust and high-speed internet connectivity with support for 10/100/1000 Mbps speeds and seamless remote management functionality.
- Combo jack for audio and microphone, very high quality 32bit/192 kHz sampling rate
- Kensington lock provides anti-theft protection, especially in shared office environments or public areas
- Docking station power switch allows for maximum power savings
- Supports Windows 10 / 11, macOS, Android 5 or later, Chrome OS R51 or later, Linux Ubuntu

NOTE: If the docking station is connected via USB-A port, charging is not supported.



Viktiga egenskaper

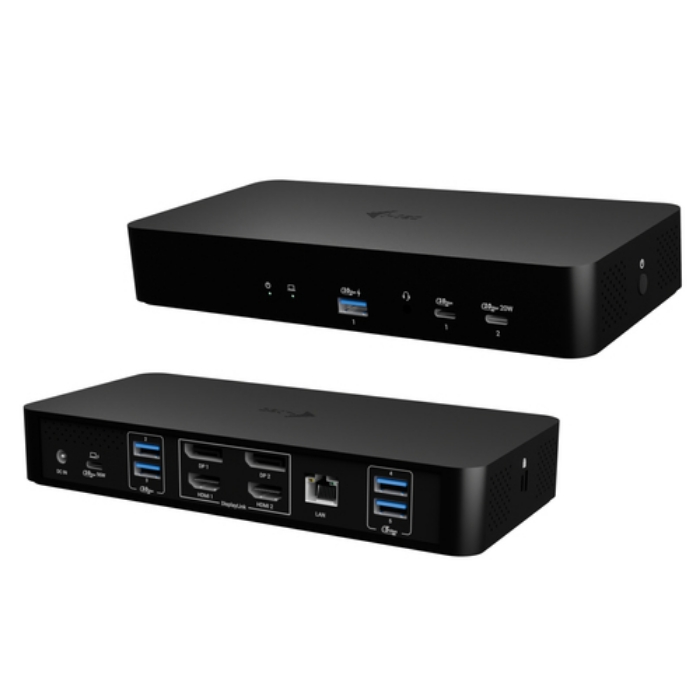

i-tec Universal Intelligent Dual Display Docking Station + Power Delivery 100W. Connectivity technology: Wired, Host interface: USB 3.2 Gen 1 (3.1 Gen 1) Type-C, USB Power Delivery up to: 100 W. Ethernet LAN data rates: 10,100,1000 Mbit/s. Product colour: Black, Data transfer rate: 10 Gbit/s, Maximum refresh rate: 60 Hz. Power source type: AC, Power supply: 135 W, Output voltage: 20 V. Mobile operating systems supported: Android, iOS, Other operating systems supported: ChromeOS



Teknisk specifikation

Connectivity technology	Wired
Host interface	USB 3.2 Gen 1 (3.1 Gen 1) Type-C
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	3
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	2
USB Power Delivery (USB PD)	Yes
USB Power Delivery up to	100 W
HDMI ports quantity	2
DisplayPorts quantity	2
Combo headphone/mic port	Yes
Headphone connectivity	3.5 mm
DC-in jack	Yes

Ethernet LAN	Yes
Ethernet LAN (RJ-45) ports	1
Ethernet LAN data rates	10,100,1000 Mbit/s

Product colour	Black
Card reader integrated	No
Data transfer rate	10 Gbit/s
Maximum refresh rate	60 Hz
Number of displays supported	4
Cable lock slot	Yes
Cable lock slot type	Kensington
VESA mounting	Yes
On/off switch	Yes
LED indicators	Yes

Power source type	AC
Power supply	135 W
Output voltage	20 V
Output current	6.75 A
Compatible power plug types	EU
Power cable length	1.5 m
USB cable length	1 m

Windows operating systems supported	Yes
Mac operating systems supported	Yes
Linux operating systems supported	Yes
Mobile operating systems supported	Android,iOS
Other operating systems supported	ChromeOS

Width	202.8 mm
Depth	32.6 mm
Height	95 mm
Weight	357 g

Manual	Yes
AC adapter included	Yes
Cables included	Power,USB Type-A to USB Type-C
