Produktbeskrivning

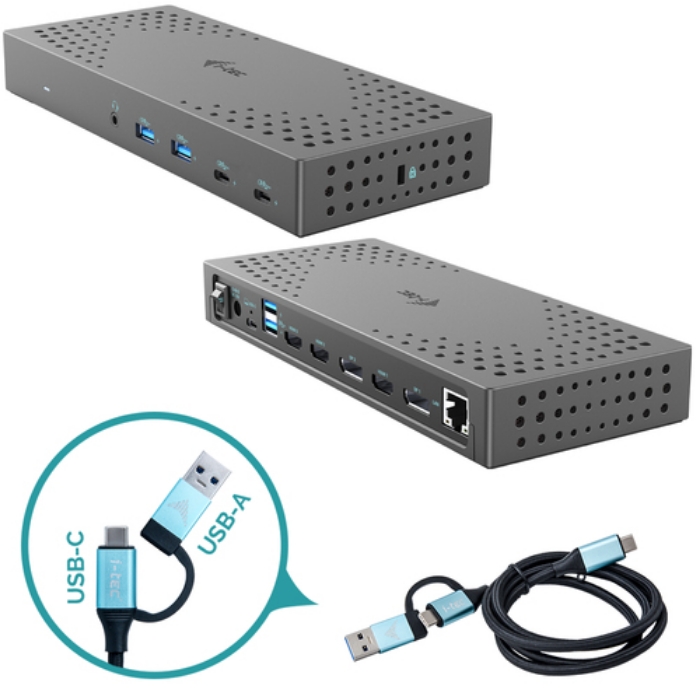

A powerful professional docking station Gen 2 that supports output to up to three external monitors in up to 4K high resolution. The dock can be used with virtually all notebooks as it supports connection to all common ports: USB 3.0, USB-C and Thunderbolt” 3/4, while supporting all common current operating systems. However, connection to three monitors will only be possible if the laptop has a Thunderbolt” 3/4 port or a USB-C port that supports video transfer (USB-C DP Alt mode). If connected to notebook with USB 3.0 port, only two monitors will be supported.

Plenty of USB ports (all support Gen 2 speeds of up to 10 Gbps), reliable and fast connection to the corporate network thanks to the integrated LAN port and support for installation behind the monitor all make this docking station the ideal companion for true professionals. Of course, it supports charging of your laptop or tablet, up to 100 W.

- Connect to 3 external monitors in resolutions up to 4K*
- Power delivery: up to 100 W
- 2 DisplayPort and 3 HDMI ports available*
- 4x USB 3.2 Gen 2 (10 Gbps) and 2x USB-C Gen 2 (10 Gbps) allow you to easily connect your USB devices and peripherals
- Gigabit Ethernet RJ-45 provides reliable, robust and high-speed internet connectivity with support for 10/100/1000 Mbps speeds
- Combo jack for audio and microphone
- Kensington lock provides anti-theft protection, especially in shared office environments or public areas
- Docking station power switch allows for maximum power savings
- Docking station supports a VESA mount for smart vertical installation behind a VESA-enabled monitor
- Supports Windows 10 / 11, macOS, Android 5 or later, Chrome OS R51 or later, Linux Ubuntu

*HDMI 3 port will only work when connected to a laptop with Thunderbolt” 3/4 port or USB-C port supporting video transfer (called USB-C DP Alt mode)

If the docking station is connected via USB 3.0 port, charging is not supported



Viktiga egenskaper

i-tec USB 3.0 / USB-C / Thunderbolt, 3x 4K Docking Station Gen 2 + Power Delivery 100W. Connectivity technology: Wired, Host interface: USB 3.2 Gen 2 (3.1 Gen 2) Type-C, USB Power Delivery up to: 100 W. Ethernet LAN data rates: 10,100,1000 Mbit/s. Product colour: Grey, Data transfer rate: 10 Gbit/s, Maximum refresh rate: 60 Hz. Output voltage: 20 V, Output current: 8 A, Compatible power plug types: EU. Other operating systems supported: Android, ChromeOS



Teknisk specifikation

Connectivity technology	Wired
Host interface	USB 3.2 Gen 2 (3.1 Gen 2) Type-C
USB 2.0 ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	4
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	2
USB Power Delivery (USB PD)	Yes
USB Power Delivery up to	100 W
HDMI ports quantity	3
DisplayPorts quantity	2
Combo headphone/mic port	Yes
Headphone connectivity	3.5 mm
DC-in jack	Yes

Ethernet LAN	Yes
Ethernet LAN (RJ-45) ports	1
Ethernet LAN data rates	10,100,1000 Mbit/s

Product colour	Grey
Card reader integrated	No
Data transfer rate	10 Gbit/s
Maximum refresh rate	60 Hz
Number of displays supported	3
Cable lock slot	Yes
Cable lock slot type	Kensington
VESA mounting	Yes
On/off switch	Yes
LED indicators	Yes

Output current	8 A
Output voltage	20 V
Compatible power plug types	EU
USB cable length	1 m

Windows operating systems supported	Yes
Mac operating systems supported	Yes
Linux operating systems supported	Yes
Other operating systems supported	Android,ChromeOS

Width	223 mm
Depth	92 mm
Height	30 mm
Weight	365 g

Package width	260 mm
Package depth	250 mm
Package height	50 mm

AC adapter included	Yes
Quick start guide	Yes
Cables included	USB
