Produktbeskrivning

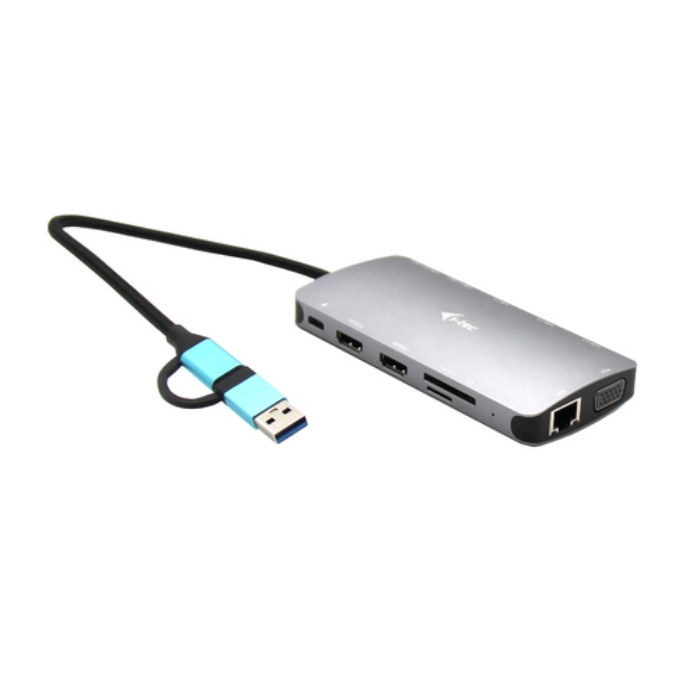

A powerful yet small and portable docking station that supports up to three external monitors. The dock can be used with virtually any laptop as it supports connection to all common ports: USB 3.0, USB-C, USB4 and Thunderbolt” 3/4, while supporting all common current operating systems. However, connection to three monitors will only be possible with a laptop with a Thunderbolt 3/4 port or a USB-C port that supports video transfer (USB-C DP Alt mode).
The 5 USB ports, reliable and fast connection to the corporate network thanks to the integrated LAN port and native VGA support all make this docking station the ideal companion for professionals who are often on the road and need to connect even to older monitors and projectors. Of course, it supports charging your laptop or tablet (up to 100W).
- Connect up to 3 external monitors*
- Power delivery: up to 100 W
- There are 2 HDMI* ports and one VGA port
- 1x USB 3.2, 1x USB-C and 3x USB 2.0 allow you to easily connect your USB devices and
- Gigabit Ethernet RJ-45 provides reliable, robust and high-speed internet connectivity with support for 10/100/1000 Mbps speeds
- SD and microSD slots for easy data transfer from memory cards
- Supports Windows 10/11, macOS, Android, Linux and ChromeOS
*HDMI 1 port will only work when connected to a laptop with Thunderbolt 3/4, USB4, or USB-C port that supports video transfer (called USB-C DP Alt mode)
If the dock is connected via USB 3.0, charging of laptops and tablets is not supported
Viktiga egenskaper
i-tec USB 3.0 USB-C/Thunderbolt 3x Display Metal Nano Dock with LAN + Power Delivery 100 W. Connectivity technology: Wired, Host interface: USB 3.2 Gen 1 (3.1 Gen 1) Type-A + Type-C, USB Power Delivery up to: 100 W. Ethernet LAN data rates: 10,100,1000 Mbit/s. Product colour: Silver, Compatible memory cards: MicroSD (TransFlash), SD, Data transfer rate: 5 Gbit/s. Power source type: USB. Other operating systems supported: Android
Teknisk specifikation
Ports & interfaces
| Connectivity technology | Wired |
|---|
| Host interface | USB 3.2 Gen 1 (3.1 Gen 1) Type-A + Type-C |
|---|
| USB 2.0 ports quantity | 3 |
|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
|---|
| USB Power Delivery (USB PD) | Yes |
|---|
| USB Power Delivery up to | 100 W |
|---|
| HDMI ports quantity | 2 |
|---|
| VGA (D-Sub) ports quantity | 1 |
|---|
| Microphone in | No |
|---|
| Headphone outputs | 0 |
|---|
| USB Type-C DisplayPort Alternate Mode | Yes |
|---|
Network
| Ethernet LAN | Yes |
|---|
| Ethernet LAN (RJ-45) ports | 1 |
|---|
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
|---|
Performance
| Product colour | Silver |
|---|
| Card reader integrated | Yes |
|---|
| Compatible memory cards | MicroSD (TransFlash),SD |
|---|
| Data transfer rate | 5 Gbit/s |
|---|
| Number of displays supported | 3 |
|---|
| Maximum refresh rate | 60 Hz |
|---|
| LED indicators | Yes |
|---|
Power
| Power source type | USB |
|---|
Software
| Windows operating systems supported | Yes |
|---|
| Mac operating systems supported | Yes |
|---|
| Linux operating systems supported | Yes |
|---|
| Other operating systems supported | Android |
|---|
Weight & dimensions
| Width | 127 mm |
|---|
| Depth | 60 mm |
|---|
| Height | 18 mm |
|---|
| Weight | 122 g |
|---|
Packaging data
| Package width | 190 mm |
|---|
| Package depth | 98 mm |
|---|
| Package height | 23 mm |
|---|
| Package weight | 140 g |
|---|
Packaging content
| Quick start guide | Yes |
|---|
