Produktbeskrivning

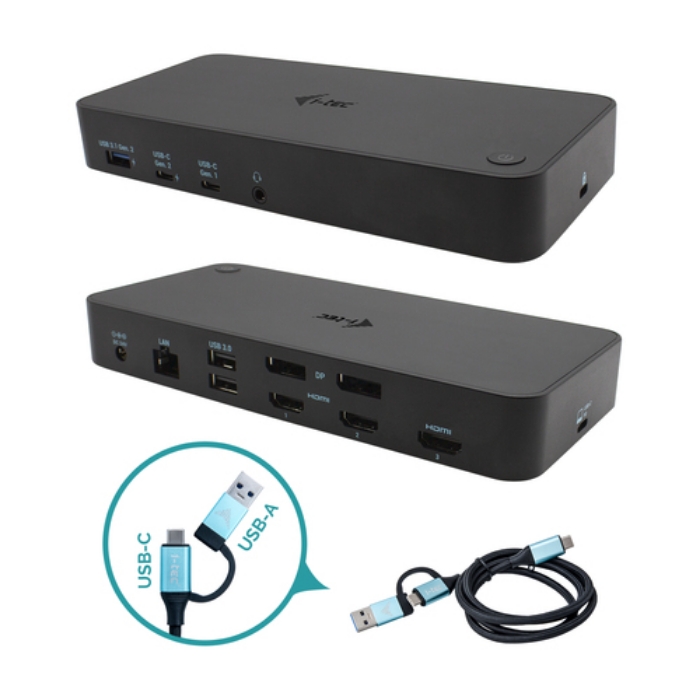

A powerful professional docking station that supports output to up to three external monitors in up to 4K high resolution. The dock can be used with virtually any laptop as it supports connection to all common ports: USB 3.0, USB-C and Thunderbolt 3/4, while supporting all common current operating systems. However, connection to three monitors will only be possible if the laptop has a Thunderbolt 3/4 port or a USB-C port that supports video transfer (USB-C DP Alt mode).
Plenty of USB ports (including those that support speeds of up to 10 Gbps), reliable and fast connection to the corporate network thanks to the integrated LAN port and support for installation behind the monitor all make this docking station the ideal companion for true professionals. Of course, it supports charging of your laptop or tablet, up to 100W,
*HDMI 3 port will only work when connected to a laptop with Thunderbolt 3/4 port or USB-C port supporting video transfer (called USB-C DP Alt mode)
Viktiga egenskaper
i-tec USB 3.0 / USB-C / Thunderbolt, 3x 4K Docking Station + Power Delivery 100W. Connectivity technology: Wired, Host interface: USB 3.2 Gen 1 (3.1 Gen 1) Type-C, USB Power Delivery up to: 100 W. Ethernet LAN data rates: 10,100,1000 Mbit/s. Product colour: Black, HD type: 5K Ultra HD, Maximum digital resolution: 5120 x 2880 pixels. Power source type: AC, Output voltage: 24 V, Output current: 4 A. Other operating systems supported: Android
Teknisk specifikation
Ports & interfaces
| Connectivity technology | Wired |
|---|
| Host interface | USB 3.2 Gen 1 (3.1 Gen 1) Type-C |
|---|
| USB 2.0 ports quantity | 0 |
|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
|---|
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1 |
|---|
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
|---|
| USB Power Delivery (USB PD) | Yes |
|---|
| USB Power Delivery up to | 100 W |
|---|
| HDMI ports quantity | 3 |
|---|
| DisplayPorts quantity | 2 |
|---|
| Combo headphone/mic port | Yes |
|---|
| Headphone connectivity | 3.5 mm |
|---|
| DC-in jack | Yes |
|---|
Network
| Ethernet LAN | Yes |
|---|
| Ethernet LAN (RJ-45) ports | 1 |
|---|
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
|---|
Performance
| Product colour | Black |
|---|
| Card reader integrated | No |
|---|
| HD type | 5K Ultra HD |
|---|
| Maximum digital resolution | 5120 x 2880 pixels |
|---|
| Maximum refresh rate | 60 Hz |
|---|
| Number of displays supported | 3 |
|---|
| Cable lock slot | Yes |
|---|
| Cable lock slot type | Kensington |
|---|
| VESA mounting | Yes |
|---|
| On/off switch | Yes |
|---|
| LED indicators | Yes |
|---|
Power
| Power source type | AC |
|---|
| Output voltage | 24 V |
|---|
| Output current | 4 A |
|---|
| Compatible power plug types | EU |
|---|
Software
| Windows operating systems supported | Yes |
|---|
| Mac operating systems supported | Yes |
|---|
| Linux operating systems supported | Yes |
|---|
| Other operating systems supported | Android |
|---|
Weight & dimensions
| Width | 191 mm |
|---|
| Depth | 85 mm |
|---|
| Height | 31 mm |
|---|
| Weight | 341 g |
|---|
Packaging data
| Package width | 215 mm |
|---|
| Package depth | 260 mm |
|---|
| Package height | 48 mm |
|---|
| Package weight | 1340 g |
|---|
Packaging content
| AC adapter included | Yes |
|---|
| Quick start guide | Yes |
|---|
| Cables included | AC,USB |
|---|
Logistics data
| Harmonized System (HS) code | 84733020 |
|---|
