Produktbeskrivning

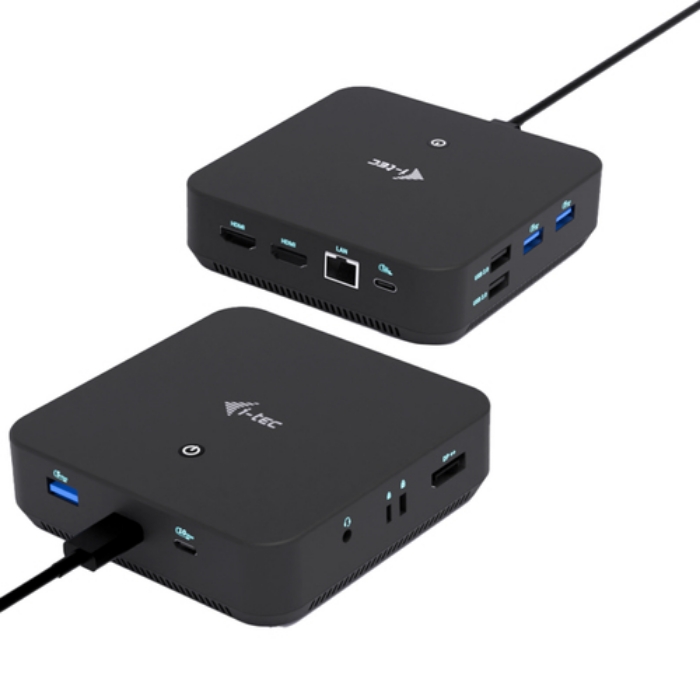

A high-performance USB-C office dock that supports up to 3x external 4K monitors. The dock is compatible with any laptop equipped with a USB-C, USB4 or Thunderbolt 3/4/5 port. Of course, it supports charging of your laptop or tablet, up to 100 W.

The integrated latest DP 1.4 DSC protocol also supports 5K/60 Hz resolution, which can be appreciated by professional graphic designers, data analysts, film editors or high-definition video lovers.

The dock can be purchased in two variants:

- without the included USB-C charging adapter (product code C31TRIPLEVIDEODPPRO – this version)
- with the included 100W adapter (product code C31TRI4KDPDPRO100/UK)

Note: macOS operating system does not support Multi Stream Transport (MST) video transmission technology, which means that if connected to macOS, the same image will be projected on all connected monitors.

- Connect up to three external 4K monitors
- Refresh rate up to 240Hz (when connected to a single 1440p monitor)
- Power delivery: up to 100W
- 2x HDMI, 1x DisplayPort++
- 3x USB 3.2 (5 Gbps), 1x USB-C 3.2 Gen2 (10 Gbps) and 2x USB 2.0 allow you to easily connect your USB devices and peripherals.
- Gigabit Ethernet RJ-45 provides a reliable, robust and high-speed
- Audio and microphone combo jack on the front panel
- Kensington lock provides anti-theft protection, especially in shared office environments or public areas
- Docking station power switch allows for maximum power savings
- Docking station supports a VESA mount for smart vertical installation behind a VESA-enabled monitor
- Supports Windows 10/11, macOS, Android, iPadOS, ChromeOS and Linux

The dock can be used without a power adapter connected. In this case, the video outputs, LAN (RJ-45), audio/mic and both USB 2.0 ports will always be functional. However, the USB 3.2 ports and the USB-C data port may not work when connecting devices with higher power requirements (e.g. SSDs, especially NVMe drives). In this case, the docking station may shut down. We recommend using the docking station with a power adapter connected to ensure that all ports are used and that maximum data transfer speeds are achieved.

Note: If connected to an Android device, the dock will only work with the power adapter connected.

NOTE: USB-C charger is not included. If you require a docking station with an included USB-C charger, consider the version with product number C31TRIVIDPRO100W/UK.



Viktiga egenskaper

i-tec USB-C DP Dual HDMI Docking Station with Power Delivery 100 W. Connectivity technology: Wired, Host interface: USB 3.2 Gen 2 (3.1 Gen 2) Type-C, USB Power Delivery up to: 100 W. Ethernet LAN data rates: 10,100,1000 Mbit/s. Product colour: Black, Data transfer rate: 10 Gbit/s, Maximum digital resolution: 3840 x 2160 pixels. Power source type: USB, Power connector: USB Type-C, Power consumption (max): 100 W. Windows operating systems supported: Windows 10, Windows 11, Other operating systems supported: Android, ChromeOS, iPadOS



Teknisk specifikation

Connectivity technology	Wired
Host interface	USB 3.2 Gen 2 (3.1 Gen 2) Type-C
USB 2.0 ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	3
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	2
USB Power Delivery (USB PD)	Yes
USB Power Delivery up to	100 W
HDMI ports quantity	2
HDMI version	2.0
DisplayPorts quantity	1
DisplayPort version	1.4
Combo headphone/mic port	Yes
Headphone outputs	1
USB Type-C DisplayPort Alternate Mode	Yes
DC-in jack	No

Ethernet LAN	Yes
Ethernet LAN (RJ-45) ports	1
Ethernet LAN data rates	10,100,1000 Mbit/s

Product colour	Black
Card reader integrated	No
Data transfer rate	10 Gbit/s
Maximum digital resolution	3840 x 2160 pixels
Number of displays supported	3
Maximum refresh rate	240 Hz
Cable lock slot	Yes
Cable lock slot type	Kensington
VESA mounting	Yes
On/off switch	Yes
Plug and Play	Yes
LED indicators	Yes
Brand compatibility	Universal

Power source type	USB
Power connector	USB Type-C
Power consumption (max)	100 W
Power consumption (typical)	10 W
USB cable length	1 m
Wireless charging	No

Windows operating systems supported	Windows 10,Windows 11
Mac operating systems supported	Yes
Linux operating systems supported	Yes
Other operating systems supported	Android,ChromeOS,iPadOS

Width	113 mm
Depth	113 mm
Height	31.2 mm
Weight	340 g

Quantity per pack	1 pc(s)
