Produktbeskrivning

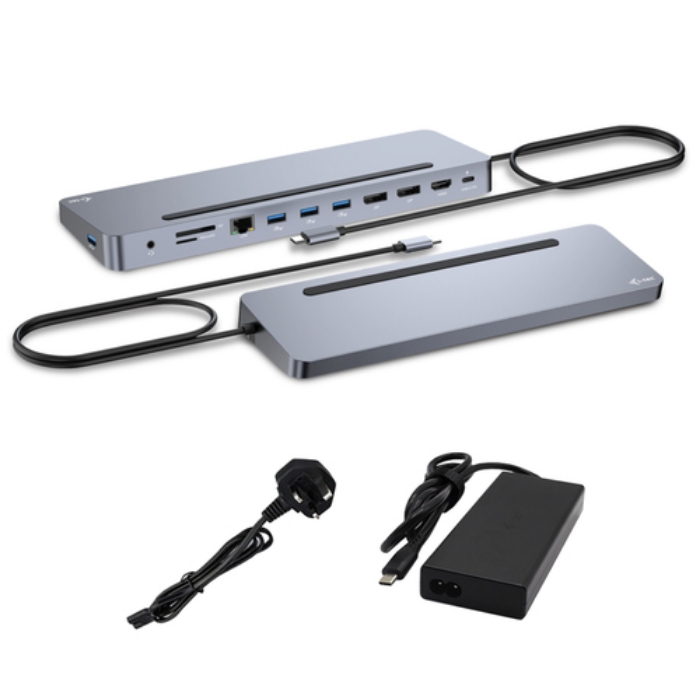

Ergonomic metal USB-C dock with support for up to 3 external monitors. The dock is compatible with any laptop equipped with a USB-C or Thunderbolt port (the 60 cm long integrated cable is long enough to connect all laptops with screens up to 15″). The dock provides 4 USB ports, reliable and fast connectivity to corporate networks thanks to the integrated LAN port and a power supply of up to 100 W. The design of the dock also allows it to be used as a laptop stand.

The docking station is available in two versions:
1. without the included USB-C charging adapter (product code C31FLAT2PDPRO)
2. with the included 100W adapter (product code C31FLAT2PDPRO100W/UK).

- Connect up to three external monitors with up to 4K resolution*.
- Power: up to 100W
- Provides 2x DisplayPort and HDMI
- 4x USB 3.2 (5 Gbps) ports allow you to easily connect your USB devices and peripherals.
- Gigabit Ethernet RJ-45 provides reliable, robust and high-speed Internet connectivity with support for 10/100/1000 Mbps speeds
- Combination audio and microphone (headset) jack on the front panel
- SD and microSD card readers
- Metal body
- Can also be used as a handy laptop stand

Note: macOS does not support Multi-Stream Transport (MST) technology, which means that when connected to a macOS device, all connected monitors will display the same image.UNIVERSAL CHARGER

Universal power adapter
This 100W USB-C Universal Power Adapter is a great choice for powering any laptop or other USB-C equipped device that supports USB-C Power Delivery with a maximum power requirement of 100W.



Viktiga egenskaper

i-tec USB-C Metal Ergonomic 3x 4K Display Docking Station with Power Delivery 100 W + Universal Charger 100 W. Connectivity technology: Wired, Host interface: USB 3.2 Gen 1 (3.1 Gen 1) Type-C, USB Power Delivery up to: 100 W. Ethernet LAN data rates: 10,100,1000 Mbit/s. Product colour: Silver, Compatible memory cards: MicroSD (TransFlash), SD, Data transfer rate: 5 Gbit/s. Power source type: AC, AC input voltage: 100-240 V, AC input frequency: 50-60 Hz. Other operating systems supported: Android, ChromeOS



Teknisk specifikation

Connectivity technology	Wired
Host interface	USB 3.2 Gen 1 (3.1 Gen 1) Type-C
USB 2.0 ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	1
USB Power Delivery (USB PD)	Yes
USB Power Delivery up to	100 W
HDMI ports quantity	1
DisplayPorts quantity	2
Combo headphone/mic port	Yes
Headphone connectivity	3.5 mm

Ethernet LAN	Yes
Ethernet LAN (RJ-45) ports	1
Ethernet LAN data rates	10,100,1000 Mbit/s

Product colour	Silver
Card reader integrated	Yes
Compatible memory cards	MicroSD (TransFlash),SD
Data transfer rate	5 Gbit/s
Maximum refresh rate	60 Hz
Number of displays supported	3
Housing material	Aluminium

Power source type	AC
AC input voltage	100-240 V
AC input frequency	50-60 Hz
Input current	2.3 A
Output current	5 A
Output voltage	5/9/12/15/19/20 V
Power consumption (max)	100 W
Compatible power plug types	EU
USB cable length	0.6 m

Windows operating systems supported	Yes
Mac operating systems supported	Yes
Linux operating systems supported	Yes
Other operating systems supported	Android,ChromeOS

Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 100 %

Width	270 mm
Depth	85 mm
Height	23 mm
Weight	268 g

Package width	316 mm
Package depth	130 mm
Package height	30 mm

AC adapter included	Yes
Manual	Yes
Maximum notebook screen size compatibility	15 "
