Produktbeskrivning
Experience a breakthrough in docking technology with a high-performance, universal docking station designed for full remote management. Thanks to its dedicated LAN port, IT administrators can control the dock from anywhere — even down to individual port-level management. The remote management software is available as an optional add-on and can be purchased at any time. Of course, the docking station operates at full functionality even without it; the only limitation is the absence of remote management features. And best of all – Manageability works without a host connection — just power and LAN required.

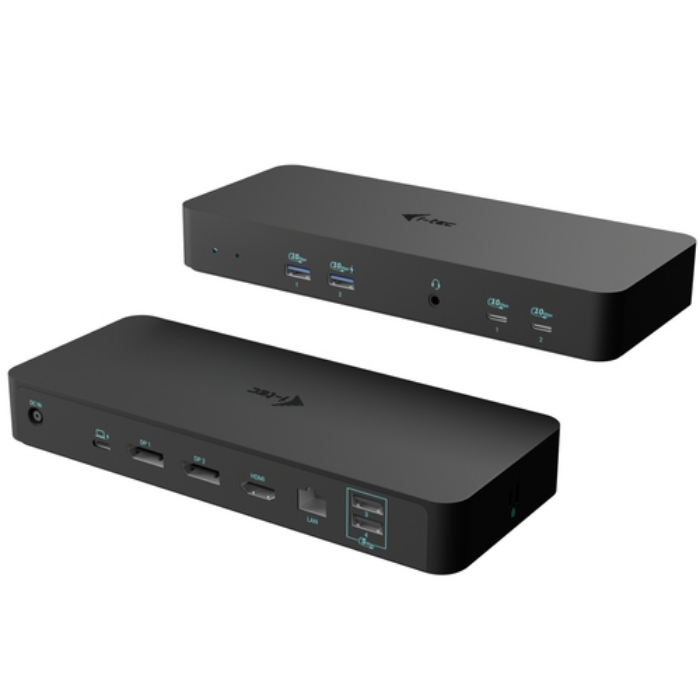

A high-performance, new generation USB-C docking station that supports output to up to three external monitors in up to 4K high resolution. The dock can be used with virtually all notebooks equipped with USB-C, USB4 and Thunderbolt” 3/4/5 ports, while supporting all common current operating systems.
Plenty of USB ports (including those support Gen 2 speeds of up to 10 Gb/s), reliable and fast connection to the corporate network thanks to the integrated LAN port and support for installation behind the monitor all make this docking station the ideal companion for true professionals. Of course, it supports charging of your laptop or tablet, up to 100 W.
- Connect to 3 external monitors in resolutions up to 4K*
- Power delivery: up to 100 W
- 2 DisplayPort and 1 HDMI port available
- 6 USB ports: 2x USB-C (10 Gb/s) supporting BC 1.2 fast charging and 4x USB-A (1x Gen 2 (10 Gb/s) supporting BC 1.2 fast charging, 1x Gen 2 (10 Gb/s) and 2x Gen 1 (5 Gbps)).
- Intelligent Gigabit Ethernet RJ-45 provides reliable, robust and high-speed internet connectivity with support for 10/100/1000 Mbps speeds and seamless remote management functionality.
- Combo jack for audio and microphone
- Kensington lock provides anti-theft protection, especially in shared office environments or public areas
- Docking station power switch allows for maximum power savings
- Docking station supports a VESA mount for smart vertical installation behind a VESA-enabled monitor
- Supports Windows 10/11, macOS, iPadOS, Android, Chrome OS and Linux (with latest updates)
* macOS does not support Multi Stream Transport (MST). Connecting two or more monitors to a macOS station will cause all monitors to display the same image.
Viktiga egenskaper
i-tec USB-C Intelligent Triple Display Docking Station + Power Delivery 100W. Connectivity technology: Wired, Host interface: USB 3.2 Gen 1 (3.1 Gen 1) Type-C, USB Power Delivery up to: 100 W. Ethernet LAN data rates: 10,100,1000 Mbit/s. Product colour: Black, Data transfer rate: 10 Gbit/s, Maximum refresh rate: 360 Hz. Power supply: 135 W, Output voltage: 20 V, Output current: 6.75 A. Mobile operating systems supported: Android, iPadOS, Other operating systems supported: ChromeOS
Teknisk specifikation
Ports & interfaces
| Connectivity technology | Wired |
|---|
| Host interface | USB 3.2 Gen 1 (3.1 Gen 1) Type-C |
|---|
| USB 2.0 ports quantity | 0 |
|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
|---|
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
|---|
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 2 |
|---|
| USB Power Delivery (USB PD) | Yes |
|---|
| USB Power Delivery up to | 100 W |
|---|
| HDMI ports quantity | 1 |
|---|
| DisplayPorts quantity | 2 |
|---|
| Combo headphone/mic port | Yes |
|---|
| Headphone connectivity | 3.5 mm |
|---|
| DC-in jack | Yes |
|---|
| USB Type-C DisplayPort Alternate Mode | Yes |
|---|
Network
| Ethernet LAN | Yes |
|---|
| Ethernet LAN (RJ-45) ports | 1 |
|---|
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
|---|
Performance
| Product colour | Black |
|---|
| Card reader integrated | No |
|---|
| Data transfer rate | 10 Gbit/s |
|---|
| Maximum refresh rate | 360 Hz |
|---|
| Number of displays supported | 3 |
|---|
| Cable lock slot | Yes |
|---|
| Cable lock slot type | Kensington |
|---|
| VESA mounting | Yes |
|---|
| On/off switch | Yes |
|---|
| LED indicators | Yes |
|---|
Power
| Power supply | 135 W |
|---|
| Output current | 6.75 A |
|---|
| Output voltage | 20 V |
|---|
| Compatible power plug types | EU |
|---|
| USB cable length | 1 m |
|---|
| Power cable length | 1.5 m |
|---|
Software
| Windows operating systems supported | Yes |
|---|
| Mac operating systems supported | Yes |
|---|
| Mobile operating systems supported | Android,iPadOS |
|---|
| Linux operating systems supported | Yes |
|---|
| Other operating systems supported | ChromeOS |
|---|
Weight & dimensions
| Width | 206 mm |
|---|
| Depth | 27.9 mm |
|---|
| Height | 85.3 mm |
|---|
| Weight | 353 g |
|---|
Packaging content
| AC adapter included | Yes |
|---|
| Manual | Yes |
|---|
| Cables included | Power,USB Type-C to USB Type-C |
|---|
