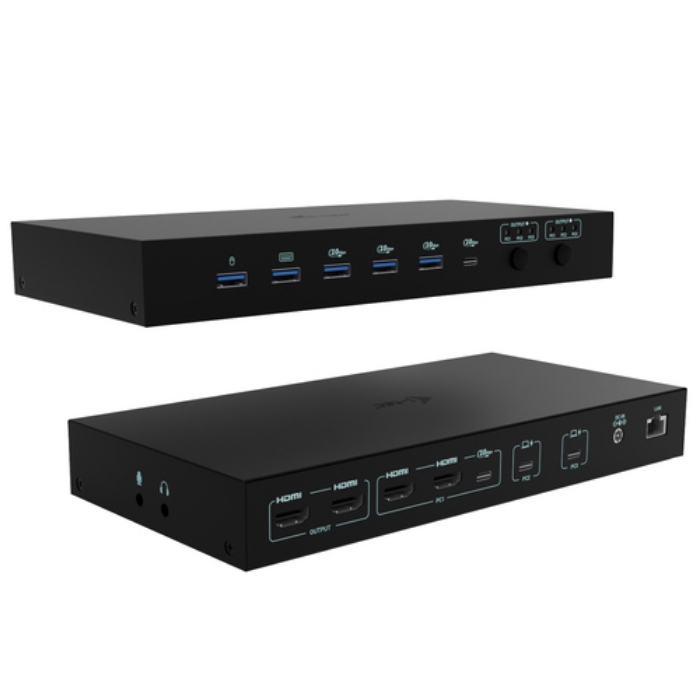

Premium KVM Docking Station for Up to Three Devices

This high-performance docking station allows simultaneous connection of up to three host devices – one PC or game console and two notebooks or tablets. Fully compatible with devices featuring USB-C, USB4, or Thunderbolt 3/4/5 ports. PCs or consoles can be connected via HDMI and USB.

It supports up to two external monitors, which can either display content from a single host or each from a different one – ideal for multitasking or working across multiple systems.

Thanks to two USB roaming ports, you can seamlessly share your keyboard and mouse between two hosts at once, boosting comfort and productivity.

The station also features four high-speed USB ports (10 Gbps) for your peripherals, along with full connectivity including GLAN, audio, and microphone ports.

Intelligent power delivery supports up to 92W charging for a single laptop, or 45W each when powering two devices simultaneously.

With convenient output selectors, you can easily choose whether both monitors mirror a single host or operate independently across two – ideal for parallel workflows.

- Support for up to 3 external host devices (2x laptop/tablet and 1x game console/PC)
- Connect up to 2 external monitors with up to 4K/60 Hz resolution *
- 2 smart USB ports for keyboard and mouse with roaming (shared) function
- 4 fast USB ports with 10 Gbps speed (3 USB-A and 1 USB-C, which can also charge up to 15W)
- LAN port with speeds up to 1Gbps (10/100/1000 Mbit)
- 2x 3.5mm ports for audio and microphone
- Power supply 1x 92W or 2x 45W
- 2x independent OUTPUT buttons for selecting the host device (OUTPUT 1 button also serves as the docking station power switch)

* macOS does not support Multi-Stream Transport (MST) for multi-display video output. As a result, when using macOS, the same image will be mirrored on both connected monitors.



Viktiga egenskaper

i-tec USB-C KVM Dock PRO for Three Hosts, Dual Video, with 2x Power Delivery, max 92W. Connectivity technology: Wired, Host interface: USB 3.2 Gen 1 (3.1 Gen 1) Type-C, USB Power Delivery up to: 92 W. Ethernet LAN data rates: 10,100,1000 Mbit/s. Product colour: Black, Data transfer rate: 10 Gbit/s, Maximum refresh rate: 144 Hz. Power source type: AC, Power supply: 180 W, Output voltage: 20 V. Mobile operating systems supported: Android, iOS, Other operating systems supported: ChromeOS



Teknisk specifikation

Connectivity technology	Wired
Host interface	USB 3.2 Gen 1 (3.1 Gen 1) Type-C
USB 2.0 ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	2
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	3
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	1
USB Power Delivery (USB PD)	Yes
USB Power Delivery up to	92 W
HDMI ports quantity	4
HDMI version	2.0
Microphone in	Yes
Headphone outputs	1
Headphone connectivity	3.5 mm
DC-in jack	Yes
USB Type-C DisplayPort Alternate Mode	Yes

Ethernet LAN	Yes
Ethernet LAN (RJ-45) ports	1
Ethernet LAN data rates	10,100,1000 Mbit/s

Product colour	Black
Card reader integrated	No
Data transfer rate	10 Gbit/s
Number of displays supported	2
Maximum refresh rate	144 Hz
On/off switch	Yes
LED indicators	Yes

Power source type	AC
Power supply	180 W
Output voltage	20 V
Output current	9 A
Compatible power plug types	EU
USB cable length	1 m

Windows operating systems supported	Yes
Mac operating systems supported	Yes
Mobile operating systems supported	Android,iOS
Linux operating systems supported	Yes
Other operating systems supported	ChromeOS

Width	240 mm
Depth	115 mm
Height	30 mm
Weight	797 g

AC adapter included	Yes
Manual	Yes
Cables included	Power,USB Type-C to USB Type-A,USB Type-C to USB Type-C
