Produktbeskrivning

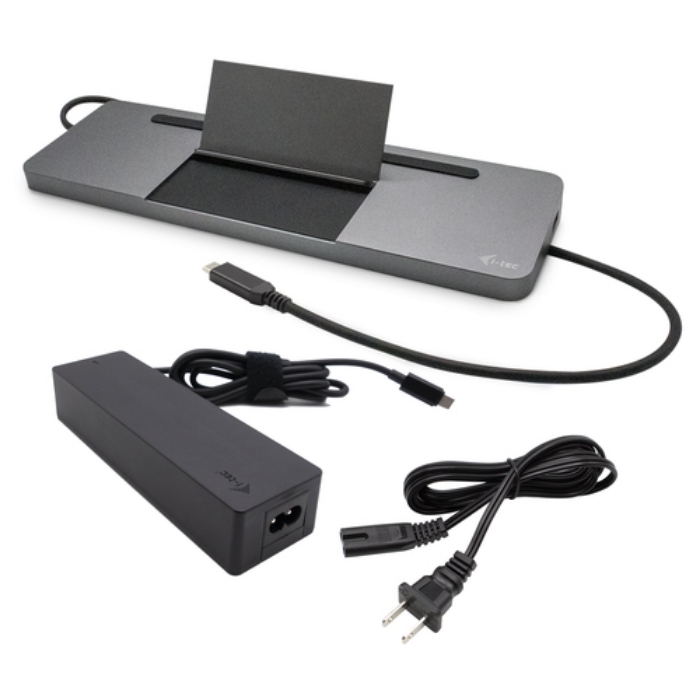

This product is a product set of a docking station and universal charging adapter. By purchasing of this kit, you get a complete solution which allows you to easily connect your favourite accessories, including LAN and external monitors, as well as easily and conveniently charge your device (including your laptop or tablet).

DOCKING STATION

Connect your favourite USB-C or Thunderbolt 3 accessories and peripherals to your laptop, tablet, PC or smartphone. Power and provide video output for up to three external monitors (applies to Windows systems) at the same time.

Plug the docking station into the USB-C or Thunderbolt 3 port of your computer with just a single cable (60 cm) and you can start using it immediately. Drivers are installed from the system automatically. The docking station was designed to also be used as an ergonomic stand for your laptop or tablet.

Note: macOS does not support Multi Stream Transport (MST) technology, meaning that when connected to a device running macOS, all connected monitors will display the same image.

UNIVERSAL CHARGER

This universal USB-C power adapter with power of 112 W is a great choice for powering any laptop or other device equipped with a USB-C connector that supports USB-C Power Delivery with a maximum power demand of 100 W.

The voltage is set automatically according to the USB Power Delivery specification 2.0 v1.2 in the individual profiles in following steps: 5 V / 9 V / 12 V / 15 V / 19 V / 20 V with max. 5 A current consumption. The power adapter is lightweight and very portable; it is equipped with intelligent current overload, overvoltage, short circuit and overheating protection.



Viktiga egenskaper

i-tec Metal SB-C Ergonomic 4K 3x Display Docking Station with Power Delivery 85 W + Universal Charger 100 W. Connectivity technology: Wired, Host interface: USB 3.2 Gen 1 (3.1 Gen 1) Type-C, USB Power Delivery up to: 85 W. Ethernet LAN data rates: 10,100,1000 Mbit/s. Product colour: Grey, Compatible memory cards: MicroSD (TransFlash), SD, HD type: 4K Ultra HD. Power source type: AC, Power supply: 100 W, Compatible power plug types: EU. Other operating systems supported: Android, ChromeOS



Teknisk specifikation

Connectivity technology	Wired
Host interface	USB 3.2 Gen 1 (3.1 Gen 1) Type-C
USB 2.0 ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	1
USB Power Delivery (USB PD)	Yes
USB Power Delivery up to	85 W
HDMI ports quantity	1
VGA (D-Sub) ports quantity	1
DisplayPorts quantity	1
Combo headphone/mic port	Yes
Headphone connectivity	3.5 mm

Ethernet LAN	Yes
Ethernet LAN (RJ-45) ports	1
Ethernet LAN data rates	10,100,1000 Mbit/s

Product colour	Grey
Card reader integrated	Yes
Compatible memory cards	MicroSD (TransFlash),SD
HD type	4K Ultra HD
Maximum refresh rate	60 Hz
Number of displays supported	3
Housing material	Aluminium

Power source type	AC
Power supply	100 W
Compatible power plug types	EU
USB cable length	0.6 m
Power cable length	1.5 m

Windows operating systems supported	Yes
Mac operating systems supported	Yes
Linux operating systems supported	Yes
Other operating systems supported	Android,ChromeOS

Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 100 %

Width	269 mm
Depth	84 mm
Height	23 mm
Weight	324 g

Package width	316 mm
Package depth	130 mm
Package height	30 mm
Package weight	830 g

Quick start guide	Yes
Manual	Yes
AC adapter included	Yes
Cables included	AC

Overload protection	Yes
Short circuit protection	Yes
