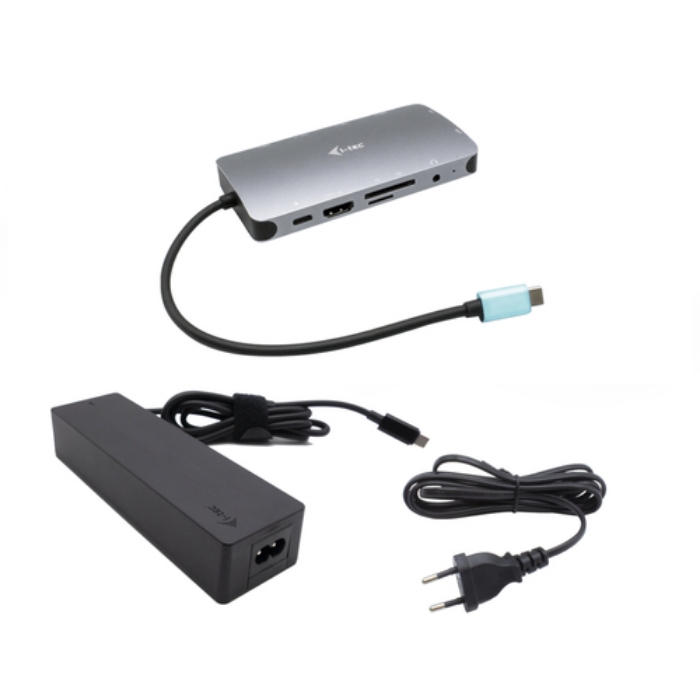

This product is a product set of a docking station and universal charging adapter. By purchasing of this kit, you get a complete solution which allows you to easily connect your favourite accessories, including LAN and external monitors, as well as easily and conveniently charge your device (including your laptop or tablet).

DOCKING STATION

Small metal USB-C docking station capable of easily connecting an external monitor or projector via an HDMI or VGA port. Simply connect your laptop or tablet (no need to install drivers) and reap the benefits of quick USB data transfer, connection to the internet via a LAN port, and the ability to connect your headset. And of course, the docking station can also power your laptop with up to 100 W, meaning you will be able to charge all laptops and tablets that support charging via USB-C (USB-C Power Delivery).

Brushed aluminium body grants the docking station sufficient durability and resilience even during frequent travel. The integrated USB-C cable is sufficiently long for comfortable connection even if the USB-C port is located in the upper portion of the screen frame (typical for hybrid laptops/tablets).

The docking station is also fully compatible with tablets and laptops featuring a Thunderbolt 3 port.

- Easily plug in an external monitor with resolution of up to 4K/30 Hz
- Power delivery: up to 100 W
- one HDMI and one VGA port available (both can be used at the same time; in that case, both monitors will display the same image)
- 3x USB 3.0 and 1x USB-C port will allow you to easily connect your USB devices and peripherals.
- SD and microSD slot will come in handy especially for owners of smartphones and digital cameras
- Gigabit Ethernet RJ-45 provides reliable, robust and high-speed Internet connection supporting 10/100/1000 Mbps speeds
- Combined jack for audio and microphone (headset) on the front panel
- Supports Windows 10, macOS, Android, Chrome OS and Linux

CHARGER

This universal USB-C power adapter with power of 100 W is a great choice for powering any laptop or other device equipped with a USB-C connector that supports USB-C Power Delivery with a maximum power demand of 100 W.

The voltage is set automatically according to the USB Power Delivery specification 2.0 v1.2 in the individual profiles in following steps: 5 V / 9 V / 12 V / 15 V / 19 V / 20 V with max. 5 A current consumption. The power adapter is lightweight and very portable; it is equipped with intelligent current overload, overvoltage, short circuit and overheating protection.



Viktiga egenskaper

i-tec Metal USB-C Nano Dock HDMI/VGA with LAN + Charger 100W. Connectivity technology: Wired, Host interface: USB 3.2 Gen 1 (3.1 Gen 1) Type-C, USB Power Delivery up to: 100 W. Ethernet LAN data rates: 10,100,1000 Mbit/s. Product colour: Grey, Compatible memory cards: MicroSD (TransFlash), SD, HD type: 4K Ultra HD. Power source type: AC, Power supply: 100 W, Compatible power plug types: EU. Other operating systems supported: Android, ChromeOS



Teknisk specifikation

Connectivity technology	Wired
Host interface	USB 3.2 Gen 1 (3.1 Gen 1) Type-C
USB 2.0 ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	3
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	2
USB Power Delivery (USB PD)	Yes
USB Power Delivery up to	100 W
HDMI ports quantity	1
VGA (D-Sub) ports quantity	1
Combo headphone/mic port	Yes

Ethernet LAN	Yes
Ethernet LAN (RJ-45) ports	1
Ethernet LAN data rates	10,100,1000 Mbit/s

Product colour	Grey
Card reader integrated	Yes
Compatible memory cards	MicroSD (TransFlash),SD
HD type	4K Ultra HD
Maximum refresh rate	60 Hz
Number of displays supported	2
Housing material	Aluminium
LED indicators	Yes

Power source type	AC
Power supply	100 W
Compatible power plug types	EU
USB cable length	0.3 m
Power cable length	1.5 m

Windows operating systems supported	Yes
Mac operating systems supported	Yes
Linux operating systems supported	Yes
Other operating systems supported	Android,ChromeOS

Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 100 %

Width	115 mm
Depth	60 mm
Height	18 mm
Weight	100 g

Package width	191 mm
Package depth	97 mm
Package height	23 mm
Package weight	600 g

Quick start guide	Yes
Manual	Yes
AC adapter included	Yes
Cables included	AC

Overload protection	Yes
Short circuit protection	Yes
