Produktbeskrivning

This docking station is designed to be used with any laptop, tablet or smartphone regardless of type, brand or operating system. All you need is for your laptop/tablet/phone to have a free Thunderbolt 3 or any USB port (minimum of USB 3.0 recommended)

Do you enjoy detailed graphics with high resolution? If so, then this station can allow you to connect to up to two external monitors or TVs with up to 4K resolution! And of course, you can enjoy truly smooth video thanks to high refresh rate of 60 Hz.

Printer? Keyboard? Mouse? External hard drive or flash drive? Charging cable for your phone? You can connect all your devices to the docking station quickly and easily. In addition, you can connect to the Internet thanks a LAN port, eliminating any worries with variable speed and quality of Wi-Fi networks.

A clear table is the backbone of any modern workspace. If your monitor supports the VESA mounting standard, you can easily install the docking station behind your monitor using an optional frame accessory (order code: VESADOCK1). Cables and other devices occupying space on the table will be a thing of the past.

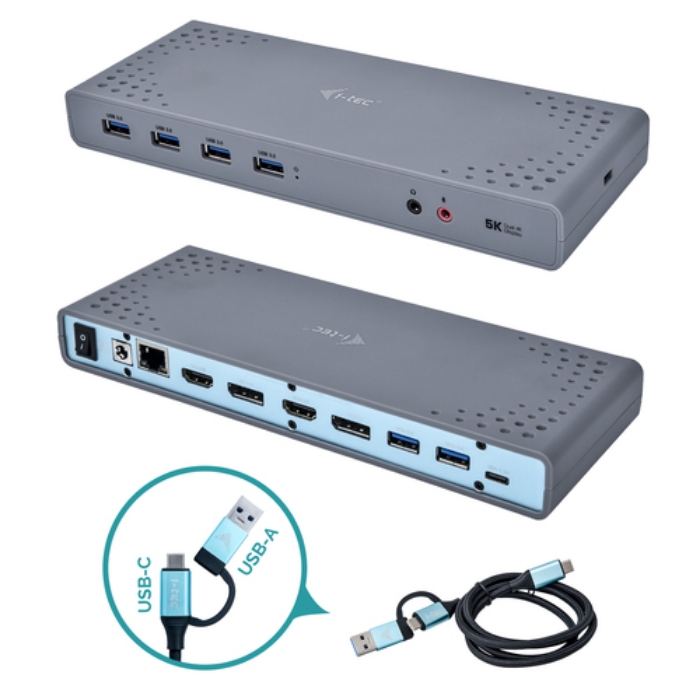

Enhance your notebook, tablet or smartphone, utilising USB-C or USB-A connectivity. This Thunderbolt 3 compatible USB-C dual monitor docking station features the latest DisplayLink DL9650 chipset and offers the flexibility of both USB-C and USB-A host interfaces (cables included).

The unit is equipped with four graphic outputs, 2x HDMI and 2x DisplayPort, although a maximum of two monitors can be supported simultaneously. Connect two monitors simultaneously and enjoy the higher 4096 x 2160 resolution @ 60 Hz, using any interface configuration (DP + DP, DP + HDMI, HDMI + HDMI). 5K resolution (5120 x 2880 @ 60 Hz) is supported when a single monitor is connected via two DisplayPort cables.

6x USB-A 3.0 ports (USB 3.0 / 2.0 compatible) make it easy to connect all of your existing hardware and Gigabit Ethernet RJ45 port provides reliable, robust and high speed internet connection, supporting 10 / 100 / 1000 Mbps speeds. 3.5 mm audio jacks can be found on the front panel and an easily accessible power-saving on / off switch can be found on the rear panel. The addition of a Kensington lock slot provides additional security, especially for those working regularly in public spaces.

i-tec docking stations are compatible with the vast majority of notebook brands and platforms, making it easier than ever to connect your favourite hardware. The unit is extremely compact, perfect for use at home or in the office. Due to the hybrid interface option especially hot desk use, due to the USB-C or USB-A interface options.

This docking station is suitable for use with Macbook Pro 2016, Macbook 2015, Chromebook Pixel 2015, Acer Switch Alpha 12, Acer Switch Alpha 13, Dell XPS 13, HP Elitebook Folio G1 and ASUS UX390UAK, as well as other devices with USB-C connectivity.

* 5K resolution is supported only by Windows



Viktiga egenskaper

i-tec USB 3.0 / USB-C / Thunderbolt 3 Dual Display Docking Station. Connectivity technology: Wired, Host interface: USB 3.2 Gen 1 (3.1 Gen 1) Type-C, Headphone connectivity: 3.5 mm. Ethernet LAN data rates: 10,100,1000 Mbit/s. Product colour: Black, Turquoise, Maximum digital resolution: 5120 x 2880 pixels, Cable lock slot type: Kensington. Power source type: AC, AC input voltage: 100 - 240 V, Input current: 2 A. Windows operating systems supported: Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10..., Mac operating systems supported: Mac OS X 10.0 Cheetah, Mac OS X 10.1 Puma, Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac..., Linux operating systems supported: Ubuntu 14.04, Ubuntu 16.04, Ubuntu 17.10, Ubuntu 18.04 LTS



Teknisk specifikation

Connectivity technology	Wired
Host interface	USB 3.2 Gen 1 (3.1 Gen 1) Type-C
USB 2.0 ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	6
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	1
HDMI ports quantity	2
DisplayPorts quantity	2
Combo headphone/mic port	Yes
Headphone outputs	1
Headphone connectivity	3.5 mm
USB connector type	USB Type-A,USB Type-C
DC-in jack	Yes

Ethernet LAN	Yes
Ethernet LAN (RJ-45) ports	1
Ethernet LAN data rates	10,100,1000 Mbit/s

Product colour	Black,Turquoise
Card reader integrated	No
Maximum digital resolution	5120 x 2880 pixels
Number of displays supported	2
Cable lock slot	Yes
Cable lock slot type	Kensington
On/off switch	Yes
Housing material	Plastic
LED indicators	Yes

Power source type	AC
AC input voltage	100 - 240 V
Input current	2 A
Output current	2 A
Output voltage	20 V
Power plug type	Type C
Power cable length	1.2 m

Windows operating systems supported	Windows 10,Windows 10 Education,Windows 10 Education x64,Windows 10 Enterprise,Windows 10 Enterprise x64,Windows 10 Home,Windows 10 Home x64,Windows 10 IOT Core,Windows 10 Pro,Windows 10 Pro x64,Windows 7 Enterprise,Windows 7 Enterprise x64,Windows 7 Home
Mac operating systems supported	Mac OS X 10.0 Cheetah,Mac OS X 10.1 Puma,Mac OS X 10.10 Yosemite,Mac OS X 10.11 El Capitan,Mac OS X 10.12 Sierra,Mac OS X 10.2 Jaguar,Mac OS X 10.3 Panther,Mac OS X 10.4 Tiger,Mac OS X 10.5 Leopard,Mac OS X 10.6 Snow Leopard,Mac OS X 10.7 Lion,Mac OS X 10
Linux operating systems supported	Ubuntu 14.04,Ubuntu 16.04,Ubuntu 17.10,Ubuntu 18.04 LTS
Other operating systems supported	Android

Width	88 mm
Depth	233 mm
Height	27 mm
Weight	338 g

Quantity per pack	1 pc(s)
Package width	144 mm
Package depth	314 mm
Package height	60 mm
Package weight	900 g

AC adapter included	Yes
Quick start guide	Yes
Cables included	USB Type-A to USB Type-C

Harmonized System (HS) code	84733020

USB data transfer rates	5000 Mbit/s
