Produktbeskrivning

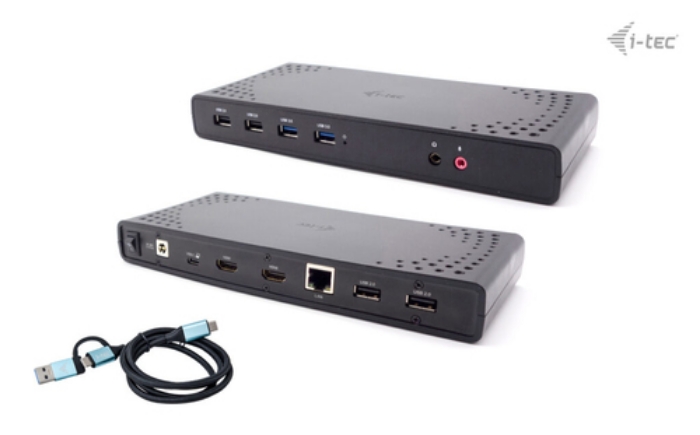

Enhance your notebook, tablet or smartphone, by utilising USB-C or USB-A connectivity. This Thunderbolt-compatible dual monitor docking station features the DisplayLink DL3900 chipset and offers the flexibility of both USB-C and USB-A host interfaces. A connecting cable with both ends (USB-C for C, USB-C for A) is a part of the package. As far as the docking station is connected either to a laptop or to a tablet that supports charging-up at its USB-C or Thunderbolt 3 port, then it is able to provide the power supply (Power Delivery) up to 100W .

2x USB-A 3.0 ports and 4x USB 2.0 make it easy to connect all of your existing hardware and the Gigabit Ethernet RJ45 port provides a reliable, robust and high-speed internet connection, supporting 10/100/1000 Mbps speeds. 3.5 mm audio jacks can be found on the front panel and an easily accessible power-saving on/off switch can be found on the rear panel. The addition of a Kensington lock slot provides additional security, especially for those working regularly in public spaces.

i-tec docking stations are compatible with the vast majority of notebook brands and platforms, making it easier than ever to connect your favourite hardware. The unit is extremely compact, perfect for use at home or in the office. Due to the hybrid interface option especially hot desk use, due to the USB-C or USB-A interface options.

- Connect your notebook, tablet or smartphone to additional monitors and your favourite hardware via a single USB-C or USB-A port (cable included)
- 2x HDMI support the connection of max. 2 monitors (max. resolution 2x FHD/60 Hz or single 1440p/50 Hz)
- 6x USB-A ports (2x USB 3.0 and 4x USB 2.0) for connecting all existing hardware and accessories.
- Fast network and Internet access with Gigabit Ethernet RJ-45 port, supporting 10/100/1000 Mbps speeds
- Kensington lock slot to discourage theft
- Separate 3.5 mm audio input/output jacks
- Power-saving on / off switch allowing a quick and easy reset of the docking station.
- 1x power supply input – external power adapter (output: DC 20V/6.75A)
- Cross-brand and cross-platform compatibility

If the docking station is connected via USB 3.0, charging of laptops and tablets is not supported



Viktiga egenskaper

i-tec USB 3.0 / USB-C / Thunderbolt Dual Display Docking Station + Power Delivery 100W. Connectivity technology: Wired, Host interface: USB 3.2 Gen 1 (3.1 Gen 1) Type-C, USB Power Delivery up to: 100 W. Ethernet LAN data rates: 10,100,1000 Mbit/s. Product colour: Black, Data transfer rate: 5 Gbit/s, Maximum refresh rate: 60 Hz. Output voltage: 20 V, Output current: 6.75 A, Compatible power plug types: EU. Other operating systems supported: Android, ChromeOS



Teknisk specifikation

Connectivity technology	Wired
Host interface	USB 3.2 Gen 1 (3.1 Gen 1) Type-C
USB 2.0 ports quantity	4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	1
USB Power Delivery (USB PD)	Yes
USB Power Delivery up to	100 W
HDMI ports quantity	2
Microphone in	Yes
Headphone outputs	1
Headphone connectivity	3.5 mm
DC-in jack	Yes

Ethernet LAN	Yes
Ethernet LAN (RJ-45) ports	1
Ethernet LAN data rates	10,100,1000 Mbit/s

Product colour	Black
Card reader integrated	No
Data transfer rate	5 Gbit/s
Number of displays supported	2
Maximum refresh rate	60 Hz
Cable lock slot	Yes
Cable lock slot type	Kensington
VESA mounting	Yes

Output voltage	20 V
Output current	6.75 A
Compatible power plug types	EU
USB cable length	1 m
Power cable length	1.7 m

Windows operating systems supported	Yes
Mac operating systems supported	Yes
Linux operating systems supported	Yes
Other operating systems supported	Android,ChromeOS

Width	224 mm
Depth	88 mm
Height	27 mm
Weight	314 g

Package width	250 mm
Package depth	250 mm
Package height	50 mm
Package weight	1174 g

AC adapter included	Yes
Manual	Yes
Cables included	AC,DC,USB Type-C to USB Type-A
