Produktbeskrivning

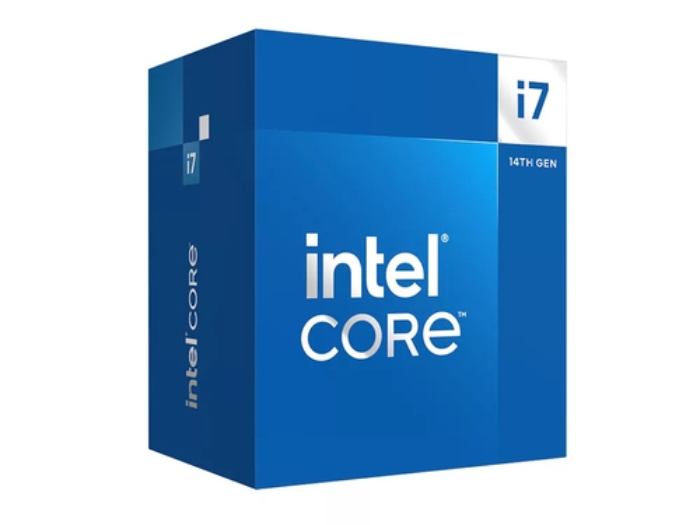

Boxed Intel Core i7 processor 14700F (33M Cache, up to 5.40 GHz) FC-LGA16A



Viktiga egenskaper

Intel Core i7-14700F. Processor family: Intel® Core™ i7, Processor socket: LGA 1700, Package type: Box. Memory channels: Dual-channel, Maximum internal memory supported by processor: 192 GB, Memory types supported by processor: DDR4-SDRAM, DDR5-SDRAM. Market segment: Desktop, Use conditions: PC/Client/Tablet, PCI Express slots version: 4.0, 5.0. Intel® Turbo Boost Max Technology 3.0 frequency: 5.4 GHz. Processor package size: 45 x 37.5 mm



Teknisk specifikation

Processor manufacturer	Intel
Processor family	Intel® Core™ i7
Processor generation	Intel® Core™ i7 (14th gen)
Processor model	i7-14700F
Processor cores	20
Processor socket	LGA 1700
Cooler included	Yes
Processor threads	28
Processor operating modes	64-bit
Performance cores	8
Efficient cores	12
Processor boost frequency	5.4 GHz
Performance-core boost frequency	5.3 GHz
Performance-core base frequency	2.1 GHz
Efficient-core boost frequency	4.2 GHz
Efficient-core base frequency	1.5 GHz
Processor cache	33 MB
Processor cache type	Smart Cache
Maximum turbo power	219 W
Processor base power	65 W
Stepping	B0
Maximum number of DMI lanes	8
Memory bandwidth supported by processor (max)	89.6 GB/s
Processor codename	Raptor Lake
Processor ARK ID	236854

Maximum internal memory supported by processor	192 GB
Memory types supported by processor	DDR4-SDRAM,DDR5-SDRAM
Memory channels	Dual-channel
Memory bandwidth (max)	89.6 GB/s

On-board graphics card	No
Discrete graphics card	No
On-board graphics card model	Not available
Discrete graphics card model	Not available

Idle States	Yes
Execute Disable Bit	Yes
Thermal Monitoring Technologies	Yes
Market segment	Desktop
Use conditions	PC/Client/Tablet
Maximum number of PCI Express lanes	20
PCI Express slots version	4.0,5.0
PCI Express configurations	1x16+1x4,2x8+1x4
Supported instruction sets	AVX 2.0,SSE4.1,SSE4.2
Embedded options available	No
CPU configuration (max)	1
Direct Media Interface (DMI) Revision	4.0
Scalability	1S
Export Control Classification Number (ECCN)	5A992C
Commodity Classification Automated Tracking System (CCATS)	740.17B1

Enhanced Intel SpeedStep Technology	Yes
Intel® Speed Shift Technology	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® Turbo Boost Technology	2.0
Intel® Turbo Boost Max Technology 3.0 frequency	5.4 GHz
Intel® Gaussian & Neural Accelerator (Intel® GNA) 3.0	Yes
Intel® Control-flow Enforcement Technology (CET)	Yes
Intel® Thread Director	Yes
Intel® Secure Key	Yes
Intel® Standard Manageability (ISM)	Yes
Mode-based Execute Control (MBE)	Yes
Intel® Boot Guard	Yes
Intel® Volume Management Device (VMD)	Yes
Intel® Deep Learning Boost (Intel® DL Boost) on CPU	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel® OS Guard	Yes
Intel Turbo Boost Max Technology 3.0	Yes
Intel 64	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes

Tjunction	100 °C

Package type	Box

Harmonized System (HS) code	8542310001

Status	Launched
Launch date	Q1'24

Processor package size	45 x 37.5 mm

Maximum internal memory	192 GB
L2 cache	28672 KB
