Produktbeskrivning

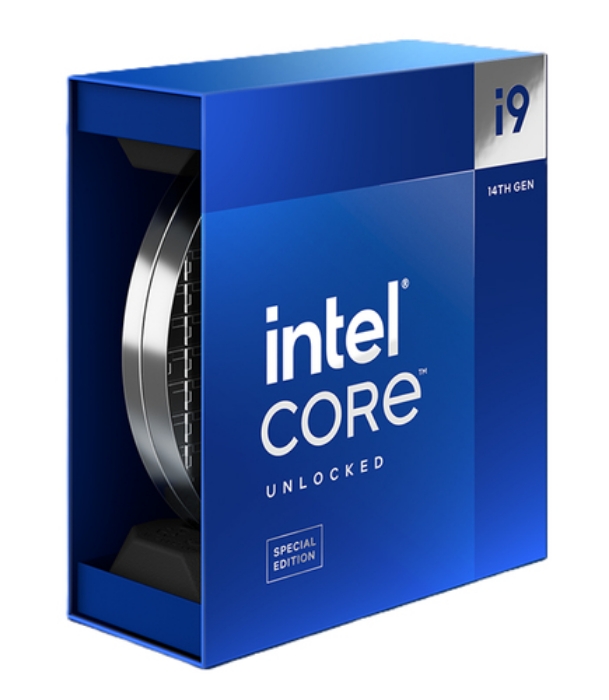

Boxed Intel Core i9 processor 14900KS (36M Cache, up to 6.20 GHz) FC-LGA16A



Viktiga egenskaper

Intel Core i9-14900KS. Processor family: Intel® Core™ i9, Processor socket: LGA 1700, Package type: Box. Memory channels: Dual-channel, Maximum internal memory supported by processor: 192 GB, Memory types supported by processor: DDR4-SDRAM, DDR5-SDRAM. On-board graphics card model: Intel UHD Graphics 770, On-board graphics card outputs supported: Embedded DisplayPort (eDP) 1.4b, DisplayPort 1.4a, HDMI 2.1, On-board graphics card base frequency: 300 MHz. Market segment: Desktop, Use conditions: PC/Client/Tablet, PCI Express slots version: 4.0, 5.0. Intel® Turbo Boost Max Technology 3.0 frequency: 5.9 GHz, Intel® Thermal Velocity Boost Frequency: 6.2 GHz



Teknisk specifikation

Processor manufacturer	Intel
Processor family	Intel® Core™ i9
Processor generation	Intel® Core™ i9 (14th gen)
Processor model	i9-14900KS
Processor cores	24
Processor socket	LGA 1700
Cooler included	No
Processor threads	32
Processor operating modes	64-bit
Performance cores	8
Efficient cores	16
Processor boost frequency	6.2 GHz
Performance-core boost frequency	5.7 GHz
Performance-core base frequency	3.2 GHz
Efficient-core boost frequency	4.5 GHz
Efficient-core base frequency	2.4 GHz
Processor cache	36 MB
Processor cache type	Smart Cache
Maximum turbo power	253 W
Processor base power	150 W
Stepping	B0
Maximum number of DMI lanes	8
Memory bandwidth supported by processor (max)	89.6 GB/s
Processor codename	Raptor Lake
Processor ARK ID	237504

Maximum internal memory supported by processor	192 GB
Memory types supported by processor	DDR4-SDRAM,DDR5-SDRAM
Memory channels	Dual-channel
Non-ECC	Yes
ECC	Yes
Memory bandwidth (max)	89.6 GB/s

Discrete graphics card	No
On-board graphics card	Yes
On-board graphics card model	Intel UHD Graphics 770
On-board graphics card outputs supported	Embedded DisplayPort (eDP) 1.4b,DisplayPort 1.4a,HDMI 2.1
On-board graphics card dynamic frequency (max)	1650 MHz
On-board graphics card base frequency	300 MHz
Number of displays supported (on-board graphics)	4
On-board graphics card DirectX version	12.0
On-board graphics card OpenGL version	4.5
On-board graphics card maximum resolution (HDMI)	4096 x 2160 pixels
On-board graphics card maximum resolution (eDP - Integrated Flat Panel)	5120 x 3200 pixels
On-board graphics card maximum resolution (DisplayPort)	7680 x 4320 pixels
On-board graphics card refresh rate at maximum resolution (HDMI)	60 Hz
On-board graphics card refresh rate at maximum resolution (DisplayPort)	60 Hz
On-board graphics card refresh rate at maximum resolution (eDP - Integrated Flat Panel)	120 Hz
On-board graphics card ID	0xA780
Discrete graphics card model	Not available
Number of execution units	32
Multi-Format Codec Engines	2

Execute Disable Bit	Yes
Thermal Monitoring Technologies	Yes
Idle States	Yes
Market segment	Desktop
Use conditions	PC/Client/Tablet
Maximum number of PCI Express lanes	20
PCI Express slots version	4.0,5.0
PCI Express configurations	1x16+1x4,2x8+1x4
Supported instruction sets	AVX 2.0,SSE4.1,SSE4.2
Embedded options available	No
Direct Media Interface (DMI) Revision	4.0
CPU configuration (max)	1
Scalability	1S
Export Control Classification Number (ECCN)	5A992C
Commodity Classification Automated Tracking System (CCATS)	740.17B1

Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® Speed Shift Technology	Yes
Enhanced Intel SpeedStep Technology	Yes
Intel® Clear Video HD Technology (Intel® CVT HD)	Yes
Intel® Quick Sync Video Technology	Yes
Intel Trusted Execution Technology	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Turbo Boost Technology	2.0
Intel® Thermal Velocity Boost	Yes
Intel® Adaptive Boost Technology	Yes
Intel® Turbo Boost Max Technology 3.0 frequency	5.9 GHz
Intel® Gaussian & Neural Accelerator (Intel® GNA) 3.0	Yes
Intel® Thermal Velocity Boost Frequency	6.2 GHz
Intel® Control-flow Enforcement Technology (CET)	Yes
Intel® Thread Director	Yes
Intel® Standard Manageability (ISM)	Yes
Mode-based Execute Control (MBE)	Yes
Intel® One-Click Recovery	Yes
Intel® Remote Platform Erase (RPE)	Yes
Intel® Virtualization Technology with Redirect Protection (VT-rp)	Yes
Intel Turbo Boost Max Technology 3.0	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel® Active Management Technology (Intel® AMT)	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel® OS Guard	Yes
Intel® Deep Learning Boost (Intel® DL Boost) on CPU	Yes
Intel® Volume Management Device (VMD)	Yes
Intel® Secure Key	Yes
Intel® Boot Guard	Yes
Intel 64	Yes
Intel vPro® Essentials Platform Eligibility	Yes
Intel® Threat Detection Technology (TDT)	Yes
Intel® Total Memory Encryption - Multi Key	Yes
Intel vPro® Enterprise Platform Eligibility	Yes
Intel® Hardware Shield Eligibility	Yes

Tjunction	100 °C

Package type	Box

OpenCL version	3.0
Launch date	Q1'24
Status	Launched

Harmonized System (HS) code	8542310001

Processor package size	45 x 37.5 mm

Maximum internal memory	192 GB
L2 cache	32768 KB
Graphics output	eDP 1.4b, DP 1.4a, HDMI 2.1
