Produktbeskrivning

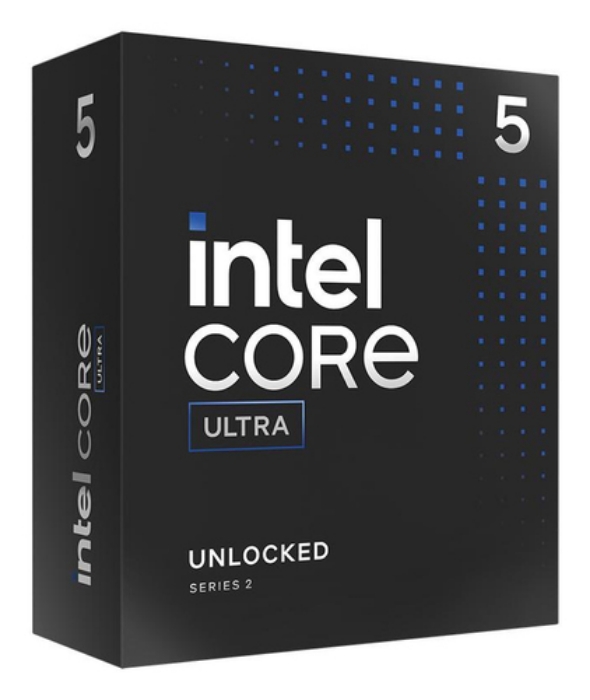

Boxed Intel Core Ultra 5 processor 245K (24M Cache, up to 5.20 GHz) FCLGA18W



Viktiga egenskaper

Intel Core Ultra 5 245K. Processor family: Intel Core Ultra 5, Processor socket: LGA 1851 (Socket V1), Package type: Box. Neural processor unit (NPU): Intel AI Boost, AI software frameworks supported by NPU: DirectML, OpenVINO, Windows ML, ONNX RT, WebNN, Total processor performance up to: 30 TOPs. Memory channels: Dual-channel, Maximum internal memory supported by processor: 192 GB, Memory types supported by processor: DDR5-SDRAM. On-board graphics card model: Intel® Graphics, On-board graphics card outputs supported: DisplayPort 2.1, Embedded DisplayPort (eDP) 1.4b, HDMI 2.1, On-board graphics card base frequency: 300 MHz. Market segment: Desktop, Use conditions: Workstation, PC/Client/Tablet, PCI Express slots version: 4.0, 5.0



Teknisk specifikation

Processor manufacturer	Intel
Processor family	Intel Core Ultra 5
Processor generation	Intel Core Ultra (Series 2)
Processor model	245K
Processor cores	14
Processor socket	LGA 1851 (Socket V1)
Cooler included	No
Processor operating modes	64-bit
Performance cores	6
Efficient cores	8
Processor boost frequency	5.2 GHz
Performance-core boost frequency	5.2 GHz
Performance-core base frequency	4.2 GHz
Efficient-core boost frequency	4.6 GHz
Efficient-core base frequency	3.6 GHz
Processor cache	24 MB
Processor cache type	Smart Cache
Maximum turbo power	159 W
Processor base power	125 W
AI software frameworks supported by CPU	DirectML,OpenVINO,Windows ML,ONNX RT,WebNN
Stepping	B0
Maximum number of DMI lanes	8
Processor codename	Arrow Lake
Processor ARK ID	241067

Neural processor unit (NPU)	Intel AI Boost
Sparsity support	Yes
Windows Studio effects support	Yes
AI software frameworks supported by NPU	DirectML,OpenVINO,Windows ML,ONNX RT,WebNN
Total processor performance up to	30 TOPs
NPU performance up to	13 TOPs
GPU performance up to	8 TOPs

Maximum internal memory supported by processor	192 GB
Memory types supported by processor	DDR5-SDRAM
Memory clock speeds supported by processor	6400 MHz
Memory channels	Dual-channel
ECC	Yes

Discrete graphics card	No
On-board graphics card	Yes
On-board graphics card model	Intel® Graphics
On-board graphics card outputs supported	DisplayPort 2.1,Embedded DisplayPort (eDP) 1.4b,HDMI 2.1
On-board graphics card dynamic frequency (max)	1900 MHz
On-board graphics card base frequency	300 MHz
Number of displays supported (on-board graphics)	4
On-board graphics card DirectX version	12.0
On-board graphics card OpenGL version	4.5
On-board graphics card refresh rate at maximum resolution (DisplayPort)	60 Hz
On-board graphics card refresh rate at maximum resolution (eDP - Integrated Flat Panel)	60 Hz
On-board graphics card refresh rate at maximum resolution (HDMI)	60 Hz
On-board graphics card ID	0x7D67
Discrete graphics card model	Not available
Xe-cores	4

Idle States	Yes
Execute Disable Bit	Yes
Thermal Monitoring Technologies	Yes
Market segment	Desktop
Use conditions	Workstation,PC/Client/Tablet
Maximum number of PCI Express lanes	24
PCI Express slots version	4.0,5.0
Supported instruction sets	AVX 2.0,SSE4.1,SSE4.2
Thermal solution specification	PCG 2020A
Embedded options available	No
Direct Media Interface (DMI) Revision	4.0
Scalability	1S
Export Control Classification Number (ECCN)	5A992C
Commodity Classification Automated Tracking System (CCATS)	740.17B1

Intel Trusted Execution Technology	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Enhanced Intel SpeedStep Technology	Yes
Intel® Speed Shift Technology	Yes
Intel® Quick Sync Video Technology	Yes
Intel® Turbo Boost Technology	2.0
Intel® Thunderbolt 4	Yes
Intel® Control-flow Enforcement Technology (CET)	Yes
Intel® Thread Director	Yes
Intel® Remote Platform Erase (RPE)	Yes
Intel® Active Management Technology (Intel® AMT)	Yes
Intel® Deep Learning Boost (Intel® DL Boost) on GPU	Yes
Intel® Virtualization Technology with Redirect Protection (VT-rp)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® Stable IT Platform Program (SIPP)	Yes
Intel 64	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel® Deep Learning Boost (Intel® DL Boost) on CPU	Yes
Intel® One-Click Recovery	Yes
Intel® Volume Management Device (VMD)	Yes
Mode-based Execute Control (MBE)	Yes
Intel® OS Guard	Yes
Intel® Standard Manageability (ISM)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel® Secure Key	Yes
Intel® Boot Guard	Yes
Intel® Total Memory Encryption - Multi Key	Yes
Intel® Threat Detection Technology (TDT)	Yes
Intel vPro® Enterprise Platform Eligibility	Yes
Intel® Hardware Shield Eligibility	Yes

Maximum operating temperature	105 °C

OpenCL version	3.0
Memory speed (max)	6400 MHz
Status	Launched
Launch date	Q4'24

Package type	Box

Harmonized System (HS) code	8542310050

Maximum internal memory	192 GB
L2 cache	26624 KB
Graphics output	DP2.1 UHBR20, HDM2.1 FRL 12GHz, eDP1.4b
