Produktbeskrivning

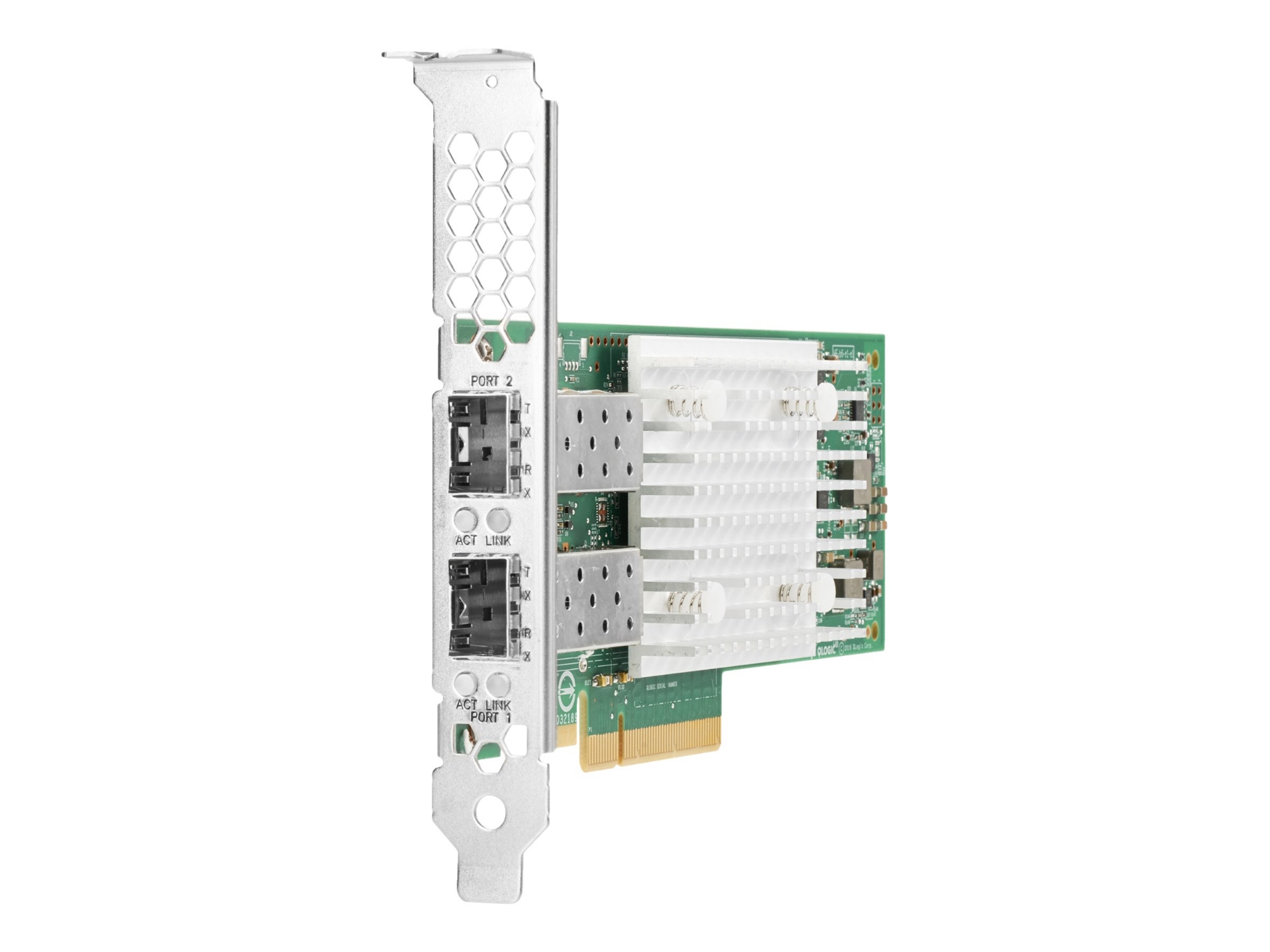

Is your data center constantly challenged to deliver increased security and reliability in a cost-effective and scalable solution for your network bandwidth? The HPE Gen10 Plus Ethernet Adapters are 1Gb, 10Gb, 10/25Gb and 100Gb and 200 Gb Ethernet solutions that are scalable and compatible with HPE Gen10 Plus servers for hybrid cloud services, mobile data and streaming video applications. Your server is the foundation of your data center, but it doesn't work alone. When one link in your component chain slows down, so does the rest of your operation. Keep your network and data flowing with a seamless ecosystem of HPE servers, networking adapters, transceivers, cables, and switches.
Egenskaper
● HPE Gen10 Plus Ethernet Adapters are engineered for an assortment of bandwidths and latency sensitive applications
● Reduces CPU utilization with support for a variety of I/O offloads including RDMA and Tunneling
● HPE Gen10 Plus Ethernet Adapters authenticate updates for NICs that signed firmware is correct and trusted to reduce rogue firmware installation
● Protect applications, data, and server infrastructure by authenticating digitally-signed firmware via a root of trust architecture
Teknisk specifikation
Allmänt
| Typ av enhet | Nätverksadapter |
|---|
| Formfaktor | Instickskort |
|---|
| Gränssnittstyp (buss) | PCI Express 4.0 x8 |
|---|
| Version av PCI-specifikation | PCIe 4.0 |
|---|
Nätverk
| Portar | 25 Gigabit SFP28 x 2 |
|---|
| Anslutningsteknik | Kabelansluten |
|---|
| Datalänkprotokoll | 10 Gigabit Ethernet, 25 Gigabit Ethernet |
|---|
| Dataöverföringshastighet | 25 Gbps |
|---|
| Nätverks/transportprotokoll | TCP/IP, iSCSI, iWARP |
|---|
| Funktioner | Wake on LAN (WOL), stöd för IPv6, IPv4-support, PXE-support, Receive Side Scaling (RSS), UEFI-support, Single Root I/O Virtualization (SR-IOV), Data Direct I/O Technology (DDIO), iSCSI-start, Virtual Extensible LAN (VXLAN), Network Virtualization using Generic Routing Encapsulation (NVGRE), RDMA over Converged Ethernet (RoCE) v2, iWARP-support, säker omstart, Network Partitioning (NPAR), Data Plane Development Kit (DPDK), granskningsloggar, tunnelavlastning, GENEVE-support, VMQueue, RoT för hårdvara, sanering |
|---|
Expansion/Anslutning
| Gränssnitt | 2 x 10Gb Ethernet/25Gb Ethernet - SFP28 |
|---|
Strömtillförsel
| Energiförbrukning vid drift | 8.9 Watt |
|---|
Kompatibilitetsinformation
| Designat för | HPE Edgeline e920d
HPE ProLiant DL110 Gen10 Plus Front Cabled Telco, DL20 Gen10 Plus, DL20 Gen10 Plus Base, DL20 Gen10 Plus Entry, DL20 Gen10 Plus High Performance, DL20 Gen10 Plus Performance, DL325 Gen10 Plus V2, DL325 Gen10 Plus V2 Base, DL325 Gen10 Plus V2 for Weka Base Tracking, DL325 Gen10 Plus V2 Performance, DL345 Gen10 Plus, DL345 Gen10 Plus Base, DL345 Gen10 Plus Entry, DL360 Gen10 Plus, DL360 Gen10 Plus All-NVMe Server for Software Defined Storage, DL360 Gen10 Plus for Weka Base Tracking, DL360 Gen10 Plus Network Choice, DL365 Gen10 Plus, DL380 Gen10 Plus, DL380 Gen10 Plus Network Choice, DL385 Gen10 Plus (v2), DL385 Gen10 Plus Entry (v2), ML30 Gen10 Plus, ML30 Gen10 Plus Entry, ML30 Gen10 Plus Performance, XL220n Gen10 Plus |
|---|
