Produktbeskrivning

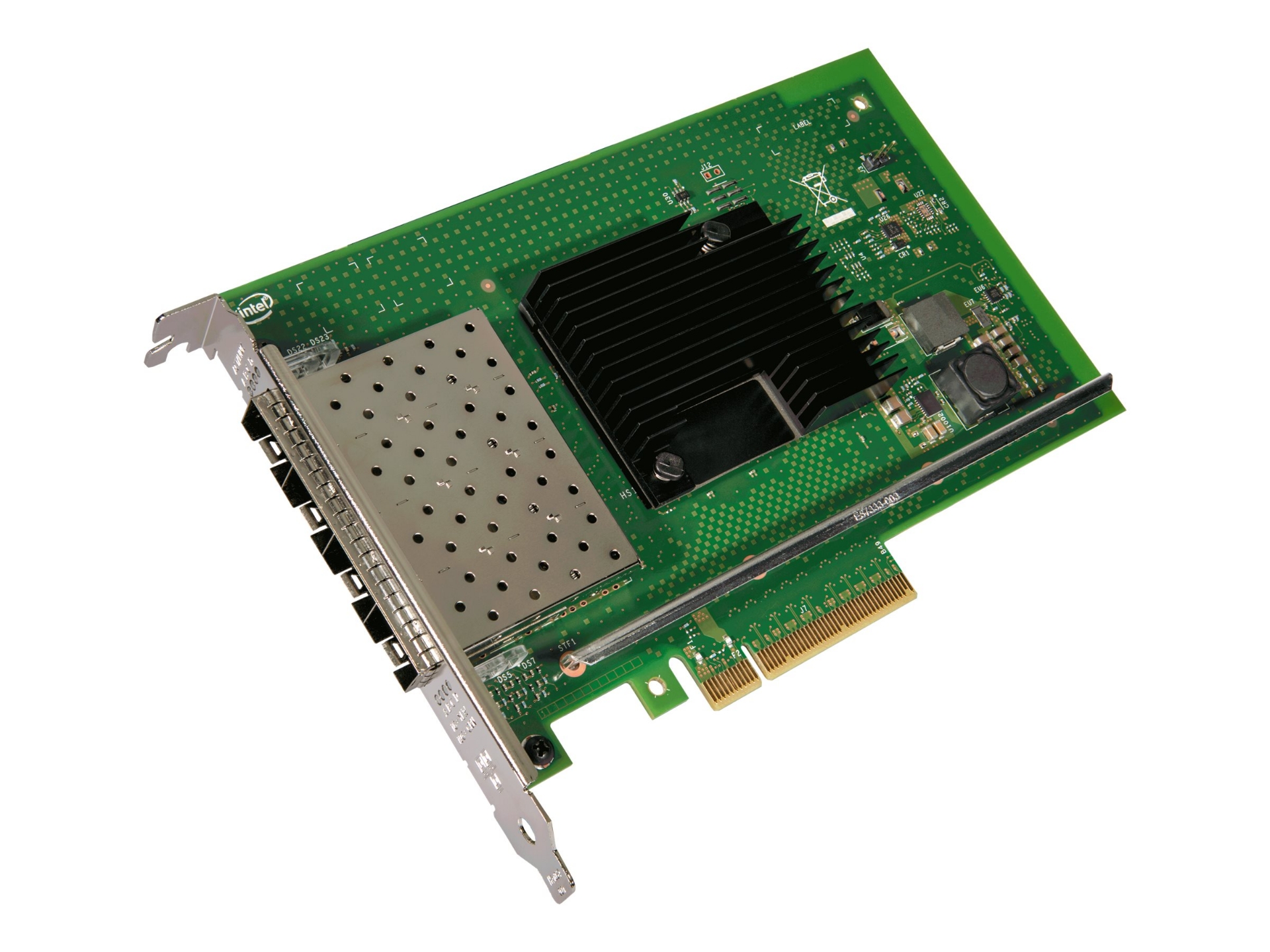

The X710-DA4 adapter delivers four ports of wire-speed 10GbE and is backwards compatible to 1GbE. Intel Ethernet 700 Series Network Adapters are the foundation for server connectivity, providing broad interoperability, critical performance optimizations, and increased agility for Telecommunications, Cloud, and Enterprise IT network solutions.



Egenskaper

One adapter, one price
With the Intel's adapters, iSCSI and FCoE support are included in the price of an adapter. There is no need to purchase multiple adapters or additional licensing for an X710 adapter. It's simple and easy. Everything you need to unify your networking is included in a single SKU.

Network virtualization
Network virtualization is the next big trend in creating an agile data center. The family of X710 adapters are ready to help you take that next step.

Energy Efficient Ethernet (EEE)
Reduces power consumption during periods of low data activity. Energy is used to maintain the physical layer transmitters in a "ready state" to transmit data on the wire. During periods of low data traffic, EEE sends a low-power-idle signal to put the transmitters into a "low power state" saving power and cost. When data needs to be sent, EEE sends a normal idle signal to wake up the transmit system before data is due to be sent so there is no degradation of performance.



Teknisk specifikation

Typ av enhet	Nätverksadapter
Formfaktor	Instickskort
Gränssnittstyp (buss)	PCI Express 3.0 x8

Portar	10 Gigabit SFP+ x 4
Anslutningsteknik	Kabelansluten
Datalänkprotokoll	Gigabit Ethernet, 10 Gigabit Ethernet
Dataöverföringshastighet	10 Gbps
Nätverks/transportprotokoll	TCP/IP, UDP/IP, iSCSI, SMB, NFS
Protokoll för administration på distans	SNMP, RMON
Statusindikatorer	Portöverföringshastighet, länk/akvititet
Funktioner	Flödeskontroll, VLAN-stöd, paketfiltrering, stöd för IPv6, TCP/IP-avlastning, Quality of Service (QoS), Virtual Machine Device Queues (VMDq), IPv4-support, teamingssupport, PXE-support, Large Send Offload (LSO), Giant Send Offload (GSO), Receive Side Scaling (RSS), Single Root I/O Virtualization (SR-IOV), Data Center Bridging (DCB), adaptiv lastbalansering (ALB), Energy Efficient Ethernet, TCP Segmentation Offload (TSO), checksumme-offloadsupport, UDP/IP-offloading, Watch Dog Timer (WDT), iSCSI-start
Standarder som följs	IEEE 802.3, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ad (LACP), IEEE 802.1as, IEEE 802.1Qbg

Gränssnitt	4 x 1Gb Ethernet/10Gb Ethernet - SFP+

Standarder som följs	FCC Klass B-certifierade, UL, VCCI, C-Tick, BSMI, RoHS, KCC, Directive 2011/65/EU, MSA SFF-8431

Operativsystem erfordras	Red Hat Linux 7.0, Microsoft Windows Server 2008 x64 Edition, Microsoft Windows Server 2008 R2 x64 Edition, Linux Kernel 2.6.32, FreeBSD 9, VMware ESXi 5.1, Microsoft Windows Server 2012 x64 Edition, Microsoft Windows Server 2012 R2 x64 Edition, SuSE Linux Enterprise Server 11 SP3, Red Hat Enterprise Linux 6.5, VMware ESXi 5.5, FreeBSD 10, SuSE Linux Enterprise Server 12

Djup	16.7 cm
Höjd	11.1 cm

Service och support	Begränsad garanti - livstid

Min temperatur vid drift	0 °C
Max temperatur vid drift	55 °C
