Produktbeskrivning

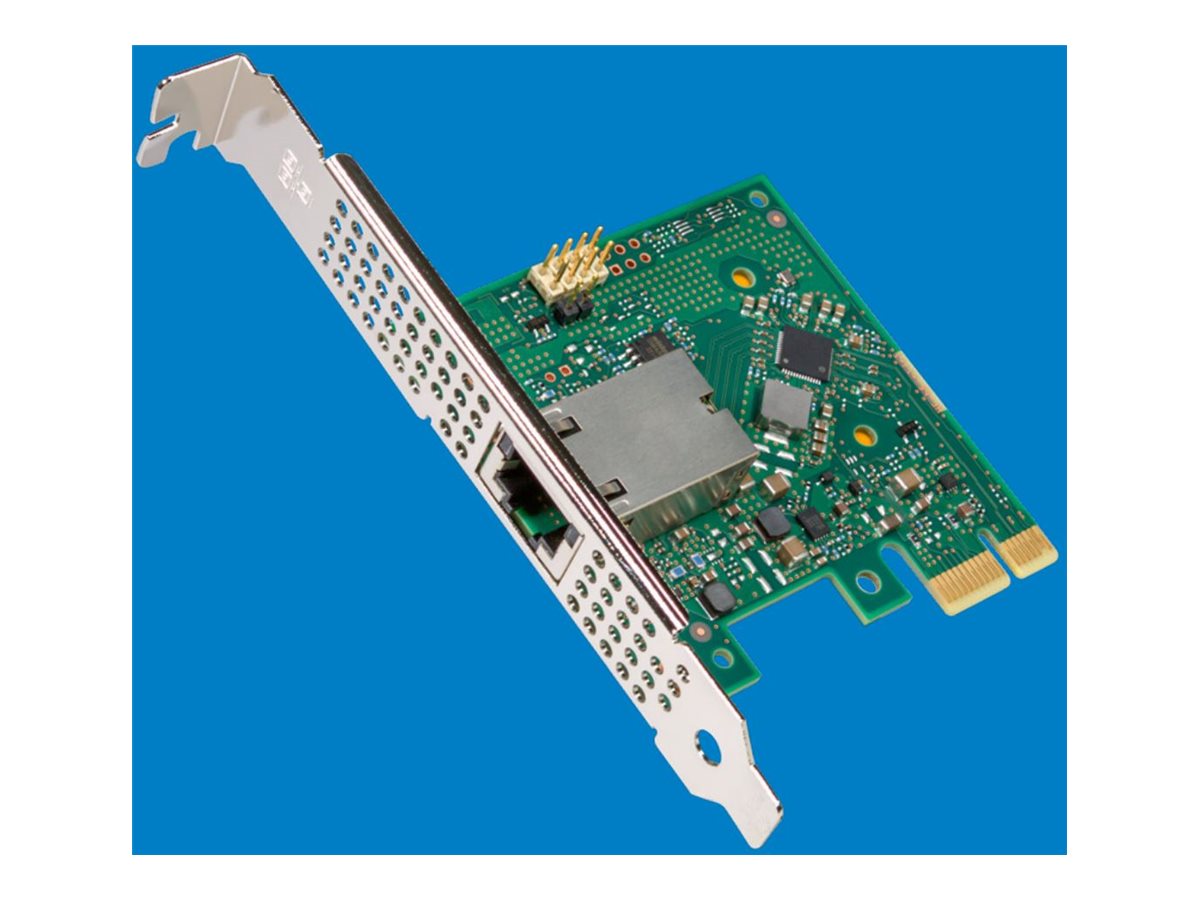

The Intel Ethernet Network Adapter I226-T1 is ideally suited for personal computers and workstations used for enterprise, gaming, and home networks. These systems require more bandwidth than ever before. This ultra-compact, easy-to-integrate PCIe 3.1 x1 adapter, is a cost-effective networking solution for speeds up to 2.5GbE. The I226-T1 is also designed with a ventilated bracket, for increased efficiency and reduced power consumption. Packed with performance optimization capabilities, the I226-T1 includes advanced interrupt-handling features to reduce CPU overhead. Combining interrupt-handling features with intelligent filtering, ordering, and directing packets to specific queues and cores, enables load-balancing network traffic flows to improve throughput in multi-core platforms. Based on the Intel Ethernet Controller I226-LM, this versatile networking solution supports 2.5 Gbps, 1 Gbps, 100 Mbps and 10 Mbps network speeds without the need to overhaul existing cabling infrastructure. Simplifying technology transitions with auto-negotiation between port speeds provides maximum flexibility.



Teknisk specifikation

Typ av enhet	Nätverksadapter
Formfaktor	Instickskort - låg profil
Gränssnittstyp (buss)	PCI Express 3.1 x1
Version av PCI-specifikation	PCIe 3.1

Portar	2.5GBase-T x 1
Anslutningsteknik	Kabelansluten
Typ av kablage	Ethernet 10Base-T, Ethernet 100Base-TX, Ethernet 1000Base-T, Ethernet 2.5GBase-T
Datalänkprotokoll	Ethernet, Fast Ethernet, Gigabit Ethernet, 2.5 Gigabit Ethernet
Dataöverföringshastighet	2.5 Gbps
Kapacitet	Tx-köer: Rx-köer:
Nätverks/transportprotokoll	TCP/IP, UDP/IP, SCTP, IPv4, IPv6
Statusindikatorer	Länk/akvititet
Funktioner	Flödeskontroll, auto-negotiation, belastningsutjämning, Receive Side Scaling (RSS), TCP Segmentation Offload (TSO), PXE 2.1-support, stöd för ACPI 2.0, stöd för APM, Active State Power Management (ASPM) support, låg strömförbrukning, 9,5 KB jumboram
Standarder som följs	IEEE 802.3, IEEE 802.3z, IEEE 802.3x

Processor	1 x Intel I226

Gränssnitt	1 x 2.5Gb Ethernet - RJ-45

Inkluderade tillbehör	Hållare för låg version, hållare med full höjd
Standarder som följs	FCC Klass B-certifierade, UL, VCCI, C-Tick, BSMI, EMC, RoHS, KCC, EMI, Directive 2011/65/EU, EN 62368-1:2014, UL 62368-1, Directive 2015/863/EU, CAN/CSA-C22.2 No. 62368-1-14
Förpackningstyp	Detaljhandel

Energiförbrukning vid drift	1.4 Watt

Djup	65.3 mm
Höjd	68.7 mm

Service och support	Begränsad garanti - livstid

Min temperatur vid drift	0 °C
Max temperatur vid drift	55 °C
