Produktbeskrivning

iWARP/RDMA
iWARP delivers converged, low-latency fabric services to data centers through Remote Direct Memory Access (RDMA) over Ethernet. The key iWARP components that deliver low-latency are Kernel Bypass, Direct Data Placement, and Transport Acceleration.

Intel® Data Direct I/O Technology
Intel® Data Direct I/O Technology is a platform technology that improves I/O data processing efficiency for data delivery and data consumption from I/O devices. With Intel DDIO, Intel® Server Adapters and controllers talk directly to the processor cache without a detour via system memory, reducing latency, increasing system I/O bandwidth, and reducing power consumption.

PCI-SIG* SR-IOV Capable
Single-Root I/O Virtualization (SR-IOV) involves natively (directly) sharing a single I/O resource between multiple virtual machines. SR-IOV provides a mechanism by which a Single Root Function (for example a single Ethernet Port) can appear to be multiple separate physical devices.

Flexible Port Partitioning
Flexible Port Partitioning (FPP) technology utilizes industry standard PCI SIG SR-IOV to efficiently divide your physical Ethernet device into multiple virtual devices, providing Quality of Service by ensuring each process is assigned to a Virtual Function and is provided a fair share of the bandwidth.

Virtual Machine Device Queues (VMDq)
Virtual Machine Device Queues (VMDq) is a technology designed to offload some of the switching done in the VMM (Virtual Machine Monitor) to networking hardware specifically designed for this function. VMDq drastically reduces overhead associated with I/O switching in the VMM which greatly improves throughput and overall system performance



Viktiga egenskaper

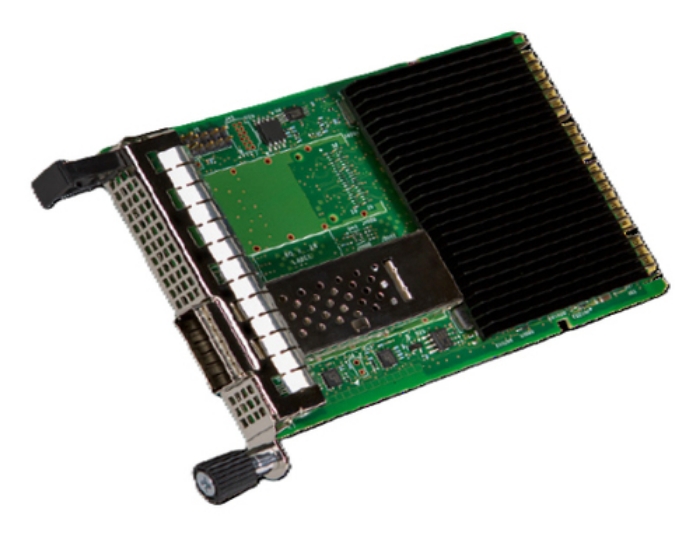

Intel E810CQDA1OCPV3. Internal. Connectivity technology: Wired, Host interface: PCI Express, Interface: Fiber. Maximum data transfer rate: 100000 Mbit/s. Product colour: Black, Green, Grey



Teknisk specifikation

Connectivity technology	Wired
Host interface	PCI Express
Interface	Fiber
Fiber optic connector	QSFP28
Fiber ports quantity	1
PCI version	4.0

Maximum data transfer rate	100000 Mbit/s
Networking standards	IEEE 1588
Ethernet LAN	Yes
Ethernet interface type	100 Gigabit Ethernet
Ethernet LAN data rates	1000,10000,25000,50000,100000 Mbit/s
LAN controller	Intel E810

Internal	Yes
Component for	Server
Product colour	Black,Green,Grey
LED indicators	Activity,Speed

Operating temperature (T-T)	0 - 65 °C
Storage temperature (T-T)	-40 - 70 °C

Width	115 mm
Depth	76 mm

Harmonized System (HS) code	85176990

Cable type	QSFP28 port - DAC, Optics, AOC's
Intel Virtualization Technology for Connectivity (VT-c)	Yes
Intel Virtual Machine Device Queues (VMDq)	Yes
iWARP/RDMA	Yes
Intel Data Direct I/O Technology	Yes
Intel Flexible Port Partitioning	Yes
PCI-SIG* SR-IOV Capable	Yes
On-chip QoS and Traffic Management	Yes
Intelligent Offloads	Yes
Speed & slot width	16.0 GT/s, x16 Lane
Commodity Classification Automated Tracking System (CCATS)	NA
Export Control Classification Number (ECCN)	5A991
Processor family	800 Network Adapters (up to 100GbE)-800 Network Adapters (up to 100GbE)
Bracket height	OCP 3.0
Network interface card type	Server
Storage Over Ethernet	iSCSI, NFS
Status	Launched
Launch date	Q1'21
Product series	800 Series Network Adapters (up to 100GbE)
