Produktbeskrivning

iWARP/RDMA
iWARP delivers converged, low-latency fabric services to data centers through Remote Direct Memory Access (RDMA) over Ethernet. The key iWARP components that deliver low-latency are Kernel Bypass, Direct Data Placement, and Transport Acceleration.

Intel® Data Direct I/O Technology
Intel® Data Direct I/O Technology is a platform technology that improves I/O data processing efficiency for data delivery and data consumption from I/O devices. With Intel DDIO, Intel® Server Adapters and controllers talk directly to the processor cache without a detour via system memory, reducing latency, increasing system I/O bandwidth, and reducing power consumption.

PCI-SIG* SR-IOV Capable
Single-Root I/O Virtualization (SR-IOV) involves natively (directly) sharing a single I/O resource between multiple virtual machines. SR-IOV provides a mechanism by which a Single Root Function (for example a single Ethernet Port) can appear to be multiple separate physical devices.

Intel® Ethernet Power Management
Intel® Ethernet Power Management Technology provides solutions to common power management approaches by reducing idle power, reducing capacity and power as a function of demand, operating at maximum energy efficiency whenever possible, and enabling functionality only when needed.

Flexible Port Partitioning
Flexible Port Partitioning (FPP) technology utilizes industry standard PCI SIG SR-IOV to efficiently divide your physical Ethernet device into multiple virtual devices, providing Quality of Service by ensuring each process is assigned to a Virtual Function and is provided a fair share of the bandwidth.

Virtual Machine Device Queues (VMDq)
Virtual Machine Device Queues (VMDq) is a technology designed to offload some of the switching done in the VMM (Virtual Machine Monitor) to networking hardware specifically designed for this function. VMDq drastically reduces overhead associated with I/O switching in the VMM which greatly improves throughput and overall system performance



Viktiga egenskaper

Intel I210T1. Internal. Connectivity technology: Wired, Host interface: PCI Express, Interface: Ethernet



Teknisk specifikation

Connectivity technology	Wired
Host interface	PCI Express
Interface	Ethernet
Ethernet LAN (RJ-45) ports	1
PCI version	2.1

Networking standards	IEEE 802.3,IEEE 802.3ab,IEEE 802.3u
Ethernet LAN	Yes
Ethernet interface type	Gigabit Ethernet,Fast Ethernet,100 Gigabit Ethernet
Ethernet LAN data rates	1000,10,100,100000 Mbit/s
Cabling technology	10/100/1000BaseT(X)
Maximum operating distance	100 m
LAN controller	Intel I210

Internal	Yes
Compatible products	Intel Workstation System P4304CR2LFKN, P4304CR2LFJN, P4304CR2LFGN, P4304CR2LFJNL Intel Server System P4224IP4LHKC, P4216IP4LHJC, P4208IP4LHGC, P4308IP4LHKC, P4308IP4LHJC, P4308IP4LHGC , P4308IP4LHJCL

Width	65 mm
Depth	20 mm
Height	55 mm

Harmonized System (HS) code	85176990

Cable type	RJ45 Category 5, up to 100 m
Market segment	Server
Conflict-Free	Yes
Intel Flexible Port Partitioning	No
Low halogen options available	No
Intel Virtual Machine Device Queues (VMDq)	No
Embedded options available	No
On-chip QoS and Traffic Management	No
Intelligent Offloads	Yes
Intel Ethernet Power Management	Yes
iWARP/RDMA	No
Fiber Channel over Ethernet	No
PCI-SIG* SR-IOV Capable	No
Intel Data Direct I/O Technology	No
Bracket height	Low-Profile (LP) / Full-Height (FH)
Thermal Design Power (TDP)	1 W
Cabling type	RJ45 Category 5, up to 100 m
Speed & slot width	2.5 GT/s, x1 Lane
Ethernet adapter ARK ID	68668
Thermal power	1 W
Interface type	PCIe v2.1 (2.5 GT/s)
Export Control Classification Number (ECCN)	5A991
Product type	Network Interface Card
Controller type	Intel I210
Commodity Classification Automated Tracking System (CCATS)	NA
Number of QPI links	Single
Processor family	Gigabit Ethernet Adapters (up to 2.5GbE)-Gigabit Ethernet Adapters (up to 2.5GbE)
Last change	63903513
Network interface card type	Server
Born on date	Q1'13
Status	Launched
Launch date	Q1'13

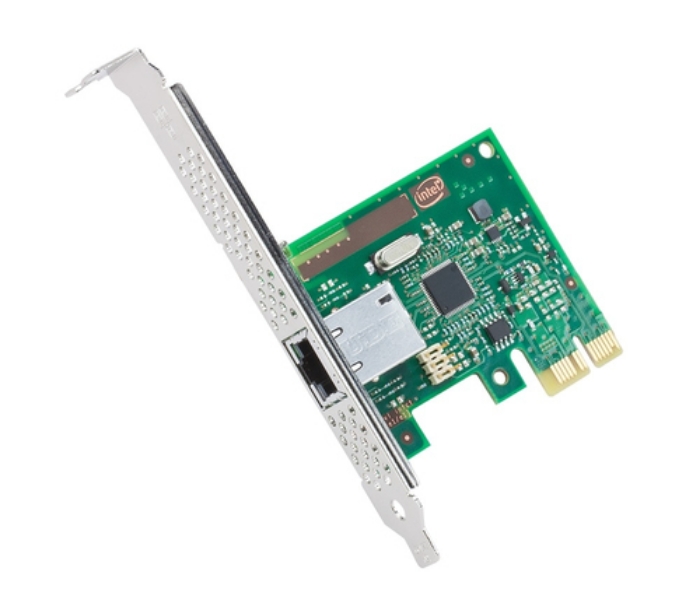

Product name	Intel Ethernet Server Adapter I210-T1
Network interface card cable medium	Copper
Product brief URL	https://cdrdv2.intel.com/v1/dl/getContent/724375
Product family	Intel Gigabit server adapter
Product series	Intel I210
