Produktbeskrivning

iWARP/RDMA
iWARP delivers converged, low-latency fabric services to data centers through Remote Direct Memory Access (RDMA) over Ethernet. The key iWARP components that deliver low-latency are Kernel Bypass, Direct Data Placement, and Transport Acceleration.

Intel® Data Direct I/O Technology
Intel® Data Direct I/O Technology is a platform technology that improves I/O data processing efficiency for data delivery and data consumption from I/O devices. With Intel DDIO, Intel® Server Adapters and controllers talk directly to the processor cache without a detour via system memory, reducing latency, increasing system I/O bandwidth, and reducing power consumption.

PCI-SIG* SR-IOV Capable
Single-Root I/O Virtualization (SR-IOV) involves natively (directly) sharing a single I/O resource between multiple virtual machines. SR-IOV provides a mechanism by which a Single Root Function (for example a single Ethernet Port) can appear to be multiple separate physical devices.

Flexible Port Partitioning
Flexible Port Partitioning (FPP) technology utilizes industry standard PCI SIG SR-IOV to efficiently divide your physical Ethernet device into multiple virtual devices, providing Quality of Service by ensuring each process is assigned to a Virtual Function and is provided a fair share of the bandwidth.

Virtual Machine Device Queues (VMDq)
Virtual Machine Device Queues (VMDq) is a technology designed to offload some of the switching done in the VMM (Virtual Machine Monitor) to networking hardware specifically designed for this function. VMDq drastically reduces overhead associated with I/O switching in the VMM which greatly improves throughput and overall system performance



Viktiga egenskaper

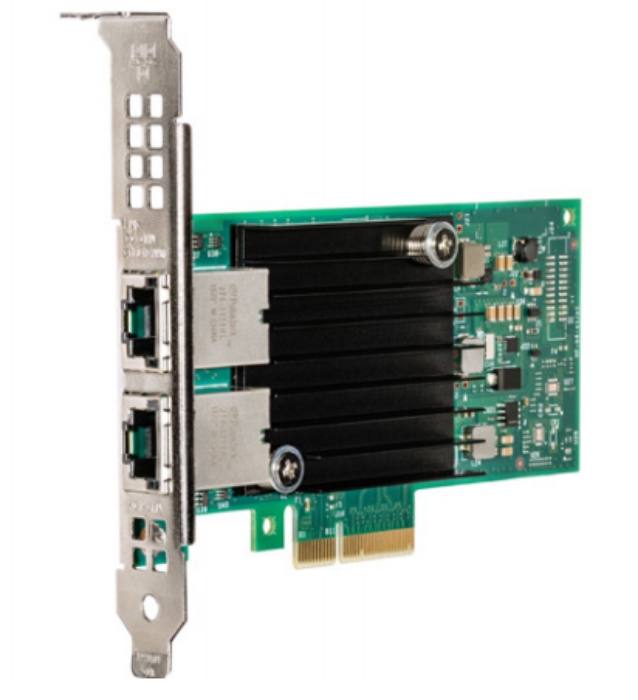

Intel X550T2. Internal. Connectivity technology: Wired, Host interface: PCI Express, Interface: Ethernet. Maximum data transfer rate: 10000 Mbit/s. Product colour: Green, Silver



Teknisk specifikation

Connectivity technology	Wired
Host interface	PCI Express
Interface	Ethernet
Ethernet LAN (RJ-45) ports	2
PCI version	3.0
PCI Card form factor	Half-height (low-profile)

Maximum data transfer rate	10000 Mbit/s
Networking standards	IEEE 802.1Q,IEEE 802.1as,IEEE 802.1p,IEEE 802.3,IEEE 802.3ad
Ethernet LAN	Yes
Ethernet interface type	5 Gigabit Ethernet,10 Gigabit Ethernet,Fast Ethernet,Gigabit Ethernet
Ethernet LAN data rates	100,1000,2500,5000,10000 Mbit/s
Cabling technology	10GBase-T
iSCSI support	Yes
VLAN tagging	Yes
Maximum operating distance	100 m
LAN controller	Intel® X550

Internal	Yes
Product colour	Green,Silver

Compatible operating systems	https://www.intel.com/content/www/us/en/support/articles/000025890/network-and-i-o/ethernet-products.html
Windows operating systems supported	Windows 7 Enterprise,Windows 7 Enterprise x64,Windows 7 Home Basic,Windows 7 Home Basic x64,Windows 7 Home Premium,Windows 7 Home Premium x64,Windows 7 Professional,Windows 7 Professional x64,Windows 7 Starter,Windows 7 Starter x64,Windows 7 Ultimate,Wind
Linux operating systems supported	Red Hat Enterprise Linux WS 5.0,Red Hat Enterprise Linux WS 6.0,SUSE Linux Enterprise Desktop 10,SUSE Linux Enterprise Desktop 11
Server operating systems supported	Windows Server 2003,Windows Server 2008 R2,Windows Server 2008 R2 x64,Windows Server 2008 x64,Windows Server 2012 R2,Windows Server 2012 R2 x64

Operating temperature (T-T)	0 - 55 °C
Storage temperature (T-T)	-40 - 70 °C
Storage relative humidity (H-H)	0 - 90 %

Harmonized System (HS) code	85176990

Data transfer rate	8 GT/s
Cable type	RJ45 Category 6 up to 55m; Category 6A up to 100m
Market segment	Server
PCI-SIG* SR-IOV Capable	Yes
Fiber Channel over Ethernet	Yes
Low halogen options available	No
Conflict-Free	Yes
On-chip QoS and Traffic Management	Yes
Intelligent Offloads	Yes
iWARP/RDMA	No
Intel Virtualization Technology for Connectivity (VT-c)	Yes
Intel Data Direct I/O Technology	Yes
Intel Virtual Machine Device Queues (VMDq)	Yes
Intel Flexible Port Partitioning	Yes
Processor family	500 Network Adapters (up to 10GbE)-500 Network Adapters (up to 10GbE)
Cabling type	RJ45 Category 6 up to 55m; Category 6A up to 100m
Export Control Classification Number (ECCN)	5A992C
Interface type	PCIe v3.0 (8.0 GT/s)
Controller type	Intel® Ethernet Controller X550
Product type	Network Interface Card
Bracket height	Low-Profile (LP) / Full-Height (FH)
Speed & slot width	8.0 GT/s, x4 Lane
Ethernet adapter ARK ID	88209
Number of VLANs	4096
Desktop Management Interface (DMI) version	2.0
Commodity Classification Automated Tracking System (CCATS)	G135872
Product brief URL	http://www.intel.com/content/www/us/en/ethernet-products/converged-network-adapters/ethernet-x550-brief.html
Network interface card cable medium	Copper
Status	Launched
Network interface card type	Server
Launch date	Q1'16
Storage Over Ethernet	iSCSI, FCoE, NFS
Last change	64826838
Product family	Intel 10 Gigabit server adapter
Product series	500 Series Network Adapters (up to 10GbE)
