Produktbeskrivning

iWARP/RDMA
iWARP delivers converged, low-latency fabric services to data centers through Remote Direct Memory Access (RDMA) over Ethernet. The key iWARP components that deliver low-latency are Kernel Bypass, Direct Data Placement, and Transport Acceleration.

PCI-SIG* SR-IOV Capable
Single-Root I/O Virtualization (SR-IOV) involves natively (directly) sharing a single I/O resource between multiple virtual machines. SR-IOV provides a mechanism by which a Single Root Function (for example a single Ethernet Port) can appear to be multiple separate physical devices.

Intel® Ethernet Power Management
Intel® Ethernet Power Management Technology provides solutions to common power management approaches by reducing idle power, reducing capacity and power as a function of demand, operating at maximum energy efficiency whenever possible, and enabling functionality only when needed.

Flexible Port Partitioning
Flexible Port Partitioning (FPP) technology utilizes industry standard PCI SIG SR-IOV to efficiently divide your physical Ethernet device into multiple virtual devices, providing Quality of Service by ensuring each process is assigned to a Virtual Function and is provided a fair share of the bandwidth.

Virtual Machine Device Queues (VMDq)
Virtual Machine Device Queues (VMDq) is a technology designed to offload some of the switching done in the VMM (Virtual Machine Monitor) to networking hardware specifically designed for this function. VMDq drastically reduces overhead associated with I/O switching in the VMM which greatly improves throughput and overall system performance



Viktiga egenskaper

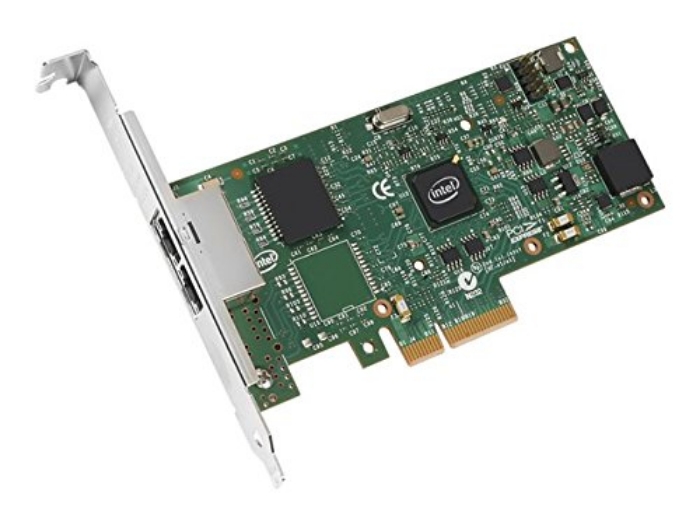

Intel I350T2V2. Internal. Connectivity technology: Wired, Host interface: PCI Express, Interface: Ethernet. Maximum data transfer rate: 1000 Mbit/s



Teknisk specifikation

Connectivity technology	Wired
Host interface	PCI Express
Interface	Ethernet
Ethernet LAN (RJ-45) ports	2
PCI version	2.1
PCI Card form factor	Full-height (low-profile)

Maximum data transfer rate	1000 Mbit/s
Networking standards	IEEE 802.1as,IEEE 802.1Q,IEEE 802.3,IEEE 802.3ab,IEEE 802.3az,IEEE 802.3u,IEEE 802.3x,IEEE 802.3z
Ethernet LAN	Yes
Ethernet interface type	Gigabit Ethernet
Ethernet LAN data rates	1000 Mbit/s
Cabling technology	10/100/1000BaseT(X)
Full duplex	Yes
iSCSI support	Yes
Supported network protocols	TCP, UDP, IP
Maximum operating distance	100 m
LAN controller	Intel® I350

Internal	Yes
Component for	Server
Chipset	Intel® I350

Power consumption (typical)	5 W

Compatible operating systems	https://www.intel.com/content/www/us/en/support/articles/000025890/network-and-i-o/ethernet-products.html

Operating temperature (T-T)	0 - 55 °C
Storage temperature (T-T)	-40 - 70 °C
Storage relative humidity (H-H)	35 - 90 %

Width	68.9 mm
Depth	135.4 mm
Height	120 mm

Manual	Yes

Harmonized System (HS) code	8517620090

Cable type	Cat 5 up to 100m
Market segment	Server
Intel Virtual Machine Device Queues (VMDq)	Yes
Intel Ethernet Power Management	Yes
Intelligent Offloads	Yes
Low halogen options available	No
On-chip QoS and Traffic Management	Yes
Processor family	Gigabit Ethernet Adapters (up to 2.5GbE)-Gigabit Ethernet Adapters (up to 2.5GbE)
Intel Flexible Port Partitioning	Yes
iWARP/RDMA	No
Thermal Design Power (TDP)	4.4 W
Product type	Network Interface Card
Cabling type	Cat 5 up to 100m
Intel Virtualization Technology for Connectivity (VT-c)	Yes
Controller type	Intel® I350
Commodity Classification Automated Tracking System (CCATS)	NA
Bracket height	Low-Profile (LP) / Full-Height (FH)
Embedded options available	No
Ethernet adapter ARK ID	84804
Speed & slot width	5.0 GT/s, x4 Lane
PCI-SIG* SR-IOV Capable	Yes
Storage-over-ethernet	Yes
Interface type	PCIe v2.1 (5.0 GT/s)
Export Control Classification Number (ECCN)	5A991.B.4.A
Network interface card type	Server
Last change	63903513
Status	Launched
Product brief URL	http://www.intel.com/content/www/us/en/ethernet-controllers/ethernet-i350-server-adapter-brief.html?wapkw=i350
Launch date	Q3'14
Network interface card cable medium	Copper
Storage Over Ethernet	iSCSI, NFS
Product family	Intel Gigabit server adapter
Product series	Intel® I350
Product codename	Powerville
