Produktbeskrivning

iWARP/RDMA
iWARP delivers converged, low-latency fabric services to data centers through Remote Direct Memory Access (RDMA) over Ethernet. The key iWARP components that deliver low-latency are Kernel Bypass, Direct Data Placement, and Transport Acceleration.

Intel® Data Direct I/O Technology
Intel® Data Direct I/O Technology is a platform technology that improves I/O data processing efficiency for data delivery and data consumption from I/O devices. With Intel DDIO, Intel® Server Adapters and controllers talk directly to the processor cache without a detour via system memory, reducing latency, increasing system I/O bandwidth, and reducing power consumption.

PCI-SIG* SR-IOV Capable
Single-Root I/O Virtualization (SR-IOV) involves natively (directly) sharing a single I/O resource between multiple virtual machines. SR-IOV provides a mechanism by which a Single Root Function (for example a single Ethernet Port) can appear to be multiple separate physical devices.

Flexible Port Partitioning
Flexible Port Partitioning (FPP) technology utilizes industry standard PCI SIG SR-IOV to efficiently divide your physical Ethernet device into multiple virtual devices, providing Quality of Service by ensuring each process is assigned to a Virtual Function and is provided a fair share of the bandwidth.

Virtual Machine Device Queues (VMDq)
Virtual Machine Device Queues (VMDq) is a technology designed to offload some of the switching done in the VMM (Virtual Machine Monitor) to networking hardware specifically designed for this function. VMDq drastically reduces overhead associated with I/O switching in the VMM which greatly improves throughput and overall system performance



Viktiga egenskaper

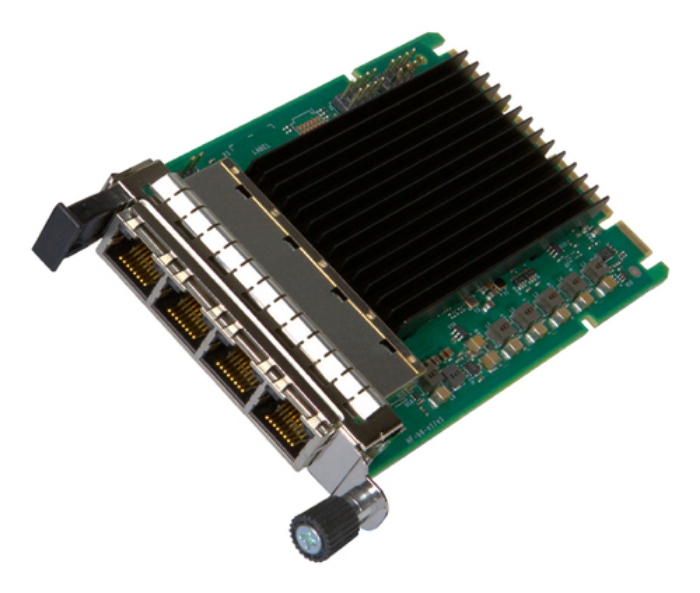

Intel E610-IT4 OCP 3.0. Internal. Connectivity technology: Wired, Host interface: PCI Express, Interface: Ethernet. Maximum data transfer rate: 2500 Mbit/s. Product colour: Black, Green, Silver



Teknisk specifikation

Connectivity technology	Wired
Host interface	PCI Express
Interface	Ethernet
Ethernet LAN (RJ-45) ports	4
PCI version	4.0

Maximum data transfer rate	2500 Mbit/s
Ethernet LAN	Yes
Ethernet interface type	2.5 Gigabit Ethernet,Fast Ethernet,Gigabit Ethernet
Ethernet LAN data rates	100,1000,2500 Mbit/s
Cabling technology	2.5GBase-T
LAN controller	Intel E610-IAT2

Internal	Yes
Component for	Server
Product colour	Black,Green,Silver
LED indicators	Activity,Link

Power consumption (typical)	7.2 W

Operating temperature (T-T)	0 - 65 °C
Storage temperature (T-T)	-40 - 70 °C

Compliance certificates	BSMI,CE,Federal Communications Commission (FCC),KCC,RCM,RoHS,VCCI

Harmonized System (HS) code	8517620090

Market segment	Server
Intel Data Direct I/O Technology	Yes
Intel Virtual Machine Device Queues (VMDq)	Yes
PCI-SIG* SR-IOV Capable	Yes
On-chip QoS and Traffic Management	Yes
Intelligent Offloads	Yes
Intel Virtualization Technology for Connectivity (VT-c)	Yes
iWARP/RDMA	No
Intel Flexible Port Partitioning	Yes
Commodity Classification Automated Tracking System (CCATS)	G157815L2
Bracket height	OCP 3.0
Ethernet adapter ARK ID	230171
Cabling type	RJ45 Category 6, Category 6A, Category 5e up to 100m
Export Control Classification Number (ECCN)	5A992.C
Launch date	Q2'25
Status	Launched
Network interface card cable medium	Copper
Storage Over Ethernet	iSCSI, NFS
