Produktbeskrivning

Intel® Trusted Execution Technology
Intel® Trusted Execution Technology for safer computing is a versatile set of hardware extensions to Intel® processors and chipsets that enhance the digital office platform with security capabilities such as measured launch and protected execution. It enables an environment where applications can run within their own space, protected from all other software on the system.

iWARP/RDMA
iWARP delivers converged, low-latency fabric services to data centers through Remote Direct Memory Access (RDMA) over Ethernet. The key iWARP components that deliver low-latency are Kernel Bypass, Direct Data Placement, and Transport Acceleration.

Intel® Data Direct I/O Technology
Intel® Data Direct I/O Technology is a platform technology that improves I/O data processing efficiency for data delivery and data consumption from I/O devices. With Intel DDIO, Intel® Server Adapters and controllers talk directly to the processor cache without a detour via system memory, reducing latency, increasing system I/O bandwidth, and reducing power consumption.

PCI-SIG* SR-IOV Capable
Single-Root I/O Virtualization (SR-IOV) involves natively (directly) sharing a single I/O resource between multiple virtual machines. SR-IOV provides a mechanism by which a Single Root Function (for example a single Ethernet Port) can appear to be multiple separate physical devices.

Flexible Port Partitioning
Flexible Port Partitioning (FPP) technology utilizes industry standard PCI SIG SR-IOV to efficiently divide your physical Ethernet device into multiple virtual devices, providing Quality of Service by ensuring each process is assigned to a Virtual Function and is provided a fair share of the bandwidth.

Virtual Machine Device Queues (VMDq)
Virtual Machine Device Queues (VMDq) is a technology designed to offload some of the switching done in the VMM (Virtual Machine Monitor) to networking hardware specifically designed for this function. VMDq drastically reduces overhead associated with I/O switching in the VMM which greatly improves throughput and overall system performance



Viktiga egenskaper

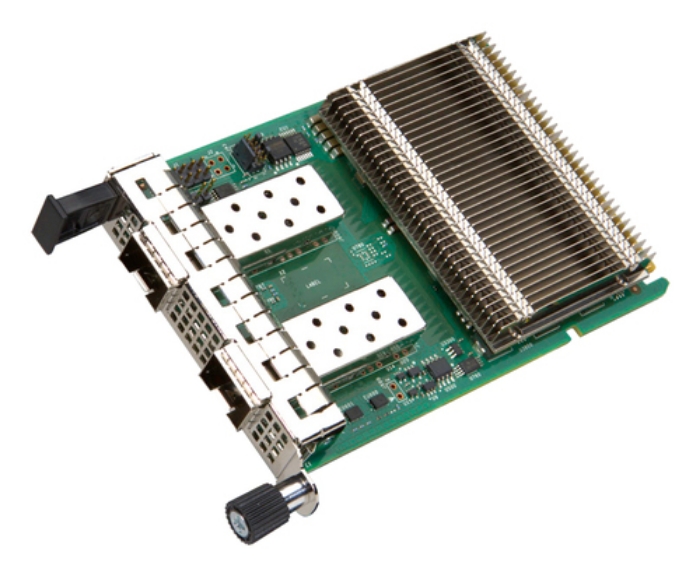

Intel E830-XXVDA2 (OCP3.0). Internal. Connectivity technology: Wired, Host interface: PCI Express, Interface: Fiber. Maximum data transfer rate: 25000 Mbit/s. Product colour: Green, Silver



Teknisk specifikation

Connectivity technology	Wired
Host interface	PCI Express
Interface	Fiber
Fiber ports quantity	2
Fiber optic connector	SFP28
PCI version	4.0

Maximum data transfer rate	25000 Mbit/s
Networking standards	IEEE 1588,IEEE 1588v2
Ethernet LAN	Yes
Ethernet interface type	Gigabit Ethernet,10 Gigabit Ethernet,25 Gigabit Ethernet
Ethernet LAN data rates	1000,10000,25000 Mbit/s
iSCSI support	Yes

Internal	Yes
Component for	Server
Product colour	Green,Silver
LED indicators	Activity,Speed

Compatible operating systems	https://www.intel.com/content/www/us/en/support/articles/000025890/ethernet-products.html

Operating temperature (T-T)	0 - 65 °C
Storage temperature (T-T)	-40 - 70 °C

Compliance certificates	BSMI,CE,Federal Communications Commission (FCC),ICES,KCC,RCM,RoHS,UKCA,VCCI

Harmonized System (HS) code	8517620090

Market segment	Server
Cabling type	SFP28 ports - DAC, Optics, and AOC's
PCI-SIG* SR-IOV Capable	Yes
Intel Trusted Execution Technology	No
Intel Data Direct I/O Technology	Yes
Intel Flexible Port Partitioning	Yes
Export Control Classification Number (ECCN)	5A992.C
Embedded options available	No
Intelligent Offloads	Yes
Commodity Classification Automated Tracking System (CCATS)	G157815L2
iWARP/RDMA	Yes
On-chip QoS and Traffic Management	Yes
Speed & slot width	16.0 GT/s, x8 Lane
Intel Virtualization Technology for Connectivity (VT-c)	Yes
Ethernet adapter ARK ID	239779
Bracket height	OCP 3.0
Intel Virtual Machine Device Queues (VMDq)	Yes
Product brief URL	https://cdrdv2.intel.com/v1/dl/getContent/824708
Storage Over Ethernet	iSCSI, NFS
Network interface card cable medium	Copper, Fiber
Status	Launched
Launch date	Q1'25
