Produktbeskrivning

iWARP/RDMA
iWARP delivers converged, low-latency fabric services to data centers through Remote Direct Memory Access (RDMA) over Ethernet. The key iWARP components that deliver low-latency are Kernel Bypass, Direct Data Placement, and Transport Acceleration.

Intel® Data Direct I/O Technology
Intel® Data Direct I/O Technology is a platform technology that improves I/O data processing efficiency for data delivery and data consumption from I/O devices. With Intel DDIO, Intel® Server Adapters and controllers talk directly to the processor cache without a detour via system memory, reducing latency, increasing system I/O bandwidth, and reducing power consumption.

PCI-SIG* SR-IOV Capable
Single-Root I/O Virtualization (SR-IOV) involves natively (directly) sharing a single I/O resource between multiple virtual machines. SR-IOV provides a mechanism by which a Single Root Function (for example a single Ethernet Port) can appear to be multiple separate physical devices.

Intel® Ethernet Power Management
Intel® Ethernet Power Management Technology provides solutions to common power management approaches by reducing idle power, reducing capacity and power as a function of demand, operating at maximum energy efficiency whenever possible, and enabling functionality only when needed.

Flexible Port Partitioning
Flexible Port Partitioning (FPP) technology utilizes industry standard PCI SIG SR-IOV to efficiently divide your physical Ethernet device into multiple virtual devices, providing Quality of Service by ensuring each process is assigned to a Virtual Function and is provided a fair share of the bandwidth.

Virtual Machine Device Queues (VMDq)
Virtual Machine Device Queues (VMDq) is a technology designed to offload some of the switching done in the VMM (Virtual Machine Monitor) to networking hardware specifically designed for this function. VMDq drastically reduces overhead associated with I/O switching in the VMM which greatly improves throughput and overall system performance



Viktiga egenskaper

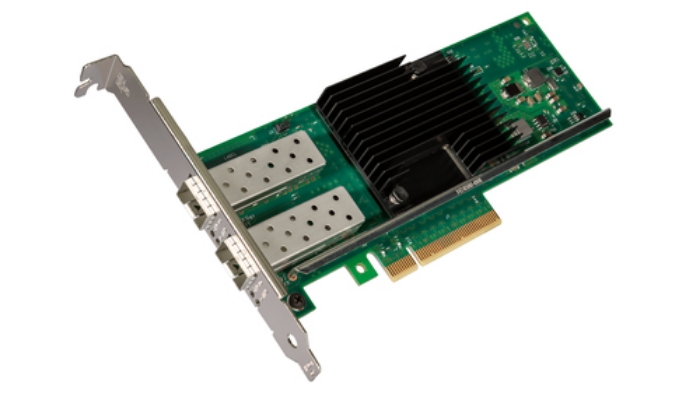

Intel X710DA2. Internal. Connectivity technology: Wired, Host interface: PCI Express, Interface: Fiber. Maximum data transfer rate: 10000 Mbit/s. Product colour: Black, Green



Teknisk specifikation

Connectivity technology	Wired
Host interface	PCI Express
Interface	Fiber
Ethernet LAN (RJ-45) ports	2
Fiber ports quantity	2
Fiber optic connector	SFP+
PCI version	3.0
PCI Card form factor	Full-height (low-profile)

Maximum data transfer rate	10000 Mbit/s
Networking standards	IEEE 802.1as,IEEE 802.1p,IEEE 802.1Q,IEEE 802.3,IEEE 802.3ad
Ethernet LAN	Yes
Ethernet interface type	Gigabit Ethernet,10 Gigabit Ethernet
Ethernet LAN data rates	1000,10000 Mbit/s
Fiber ethernet cabling technology	10GBASE-LR,10GBASE-SR
iSCSI support	Yes
VLAN tagging	Yes
Supported network protocols	TCP, UDP, IP
Maximum operating distance	10 m
LAN controller	Intel® X710

Internal	Yes
Product colour	Black,Green
Chipset	X710-AM2
LED indicators	Yes
Certification	FCC B, UL, CE, VCCI, BSMI, CTICK, KCC

Power consumption (typical)	4.5 W

Compatible operating systems	https://www.intel.com/content/www/us/en/support/articles/000025890/network-and-i-o/ethernet-products.html
Linux operating systems supported	RedHat EL Linux 6.0
Other operating systems supported	FreeBSD
Server operating systems supported	Windows Server 2008 R2,Windows Server 2012,Windows Server 2012 R2

Operating temperature (T-T)	0 - 55 °C
Storage temperature (T-T)	-40 - 70 °C
Storage relative humidity (H-H)	35 - 90 %

Width	68.58 mm
Depth	167.08 mm

Harmonized System (HS) code	85176990

Cable type	SFP+ Direct Attached Twinaxial Cabling up to 10m
Market segment	Server
Flow control support	Yes
PCI-SIG* SR-IOV Capable	Yes
Intel Trusted Execution Technology	No
Intelligent Offloads	Yes
Embedded options available	No
Intel Data Direct I/O Technology	Yes
iWARP/RDMA	No
Intel Ethernet Power Management	Yes
Intel Virtualization Technology for Connectivity (VT-c)	Yes
Intel Flexible Port Partitioning	Yes
Intel Virtual Machine Device Queues (VMDq)	Yes
On-chip QoS and Traffic Management	Yes
Controller type	Intel® Ethernet Controller X710
Processor family	700 Network Adapters (up to 40GbE)-700 Network Adapters (up to 40GbE)
Number of VLANs	4096
Export Control Classification Number (ECCN)	5A991
Interface type	PCIe v3.0 (8.0 GT/s)
Speed & slot width	8.0 GT/s, x8 Lane
Management protocols	PXE, SNMP, RMON
Commodity Classification Automated Tracking System (CCATS)	NA
Product type	Network Interface Card
Bracket height	Low-Profile (LP) / Full-Height (FH)
Cabling type	SFP+ Direct Attached Twinaxial Cabling up to 10m
Intel® Virtualization Technology (Intel® VT)	VT-c
Target market	Artificial Intelligence, High Performance Computing
Network interface card cable medium	Copper
Last change	64826824
Product brief URL	https://cdrdv2.intel.com/v1/dl/getContent/641693
Status	Launched
Launch date	Q4'14
Storage Over Ethernet	iSCSI, NFS
Product family	Intel 10 Gigabit server adapter
Product series	700 Series Network Adapters (up to 40GbE)
Product codename	Fortville
