Produktbeskrivning

iWARP/RDMA
iWARP delivers converged, low-latency fabric services to data centers through Remote Direct Memory Access (RDMA) over Ethernet. The key iWARP components that deliver low-latency are Kernel Bypass, Direct Data Placement, and Transport Acceleration.

Intel® Data Direct I/O Technology
Intel® Data Direct I/O Technology is a platform technology that improves I/O data processing efficiency for data delivery and data consumption from I/O devices. With Intel DDIO, Intel® Server Adapters and controllers talk directly to the processor cache without a detour via system memory, reducing latency, increasing system I/O bandwidth, and reducing power consumption.

PCI-SIG* SR-IOV Capable
Single-Root I/O Virtualization (SR-IOV) involves natively (directly) sharing a single I/O resource between multiple virtual machines. SR-IOV provides a mechanism by which a Single Root Function (for example a single Ethernet Port) can appear to be multiple separate physical devices.

Intel® Ethernet Power Management
Intel® Ethernet Power Management Technology provides solutions to common power management approaches by reducing idle power, reducing capacity and power as a function of demand, operating at maximum energy efficiency whenever possible, and enabling functionality only when needed.

Flexible Port Partitioning
Flexible Port Partitioning (FPP) technology utilizes industry standard PCI SIG SR-IOV to efficiently divide your physical Ethernet device into multiple virtual devices, providing Quality of Service by ensuring each process is assigned to a Virtual Function and is provided a fair share of the bandwidth.

Virtual Machine Device Queues (VMDq)
Virtual Machine Device Queues (VMDq) is a technology designed to offload some of the switching done in the VMM (Virtual Machine Monitor) to networking hardware specifically designed for this function. VMDq drastically reduces overhead associated with I/O switching in the VMM which greatly improves throughput and overall system performance



Viktiga egenskaper

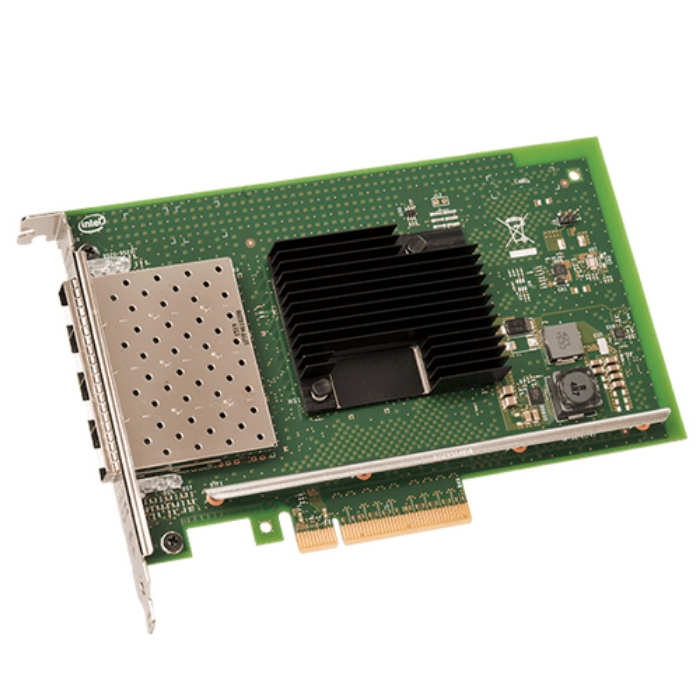

Intel X710DA4FHBLK. Internal. Connectivity technology: Wired, Host interface: PCI Express, Interface: Fiber. Maximum data transfer rate: 10000 Mbit/s. Product colour: Black, Green, Stainless steel



Teknisk specifikation

Connectivity technology	Wired
Host interface	PCI Express
Interface	Fiber
Ethernet LAN (RJ-45) ports	4
Fiber ports quantity	4
Fiber optic connector	SFP+
PCI version	3.0

Maximum data transfer rate	10000 Mbit/s
Ethernet interface type	Gigabit Ethernet,10 Gigabit Ethernet
Ethernet LAN data rates	1000,10000 Mbit/s
Fiber ethernet cabling technology	10GBASE-LR,10GBASE-SR
Quality of Service (QoS) support	Yes
iSCSI support	Yes
Maximum operating distance	10 m
LAN controller	Intel® XL710-BM1

Internal	Yes
Product colour	Black,Green,Stainless steel
LED indicators	Yes
Certification	FCC A, UL, CE, VCCI, BSMI, CTICK, KCC

Compatible operating systems	https://www.intel.com/content/www/us/en/support/articles/000025890/network-and-i-o/ethernet-products.html

Operating temperature (T-T)	0 - 55 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	0 - 90 %

Width	167 mm
Depth	111 mm

Harmonized System (HS) code	85176990

Data transfer rate	8 GT/s
Cable type	SFP+ Direct Attached Twin Axial Cabling up to 10m
Market segment	Server
Intel Virtualization Technology for Connectivity (VT-c)	Yes
Storage-over-ethernet	Yes
Intel Data Direct I/O Technology	Yes
Intel Ethernet Power Management	Yes
Conflict-Free	Yes
PCI-SIG* SR-IOV Capable	Yes
Intelligent Offloads	Yes
Fiber Channel over Ethernet	No
On-chip QoS and Traffic Management	Yes
Low halogen options available	No
Intel Virtual Machine Device Queues (VMDq)	Yes
Intel Flexible Port Partitioning	Yes
iWARP/RDMA	No
Embedded options available	No
Controller type	Intel® Ethernet Controller X710
Processor family	700 Network Adapters (up to 40GbE)-700 Network Adapters (up to 40GbE)
Export Control Classification Number (ECCN)	5A991
Ethernet adapter ARK ID	83965
Bracket height	Full-Height (FH)
Commodity Classification Automated Tracking System (CCATS)	NA
Cabling type	SFP+ Direct Attached Twin Axial Cabling up to 10m
Interface type	PCIe v3.0 (8.0 GT/s)
Speed & slot width	8.0 GT/s, x8 Lane
Quantity per pack	1 pc(s)
Product type	Network Interface Card
Target market	Artificial Intelligence, High Performance Computing
Network interface card cable medium	Copper
Launch date	Q4'14
Product brief URL	https://cdrdv2.intel.com/v1/dl/getContent/641693
Status	Launched
Last change	64826826
Network interface card type	Server
Storage Over Ethernet	iSCSI NFS
Product family	Intel 10 Gigabit server adapter
Product series	700 Series Network Adapters (up to 40GbE)
Product codename	Fortville
