Produktbeskrivning

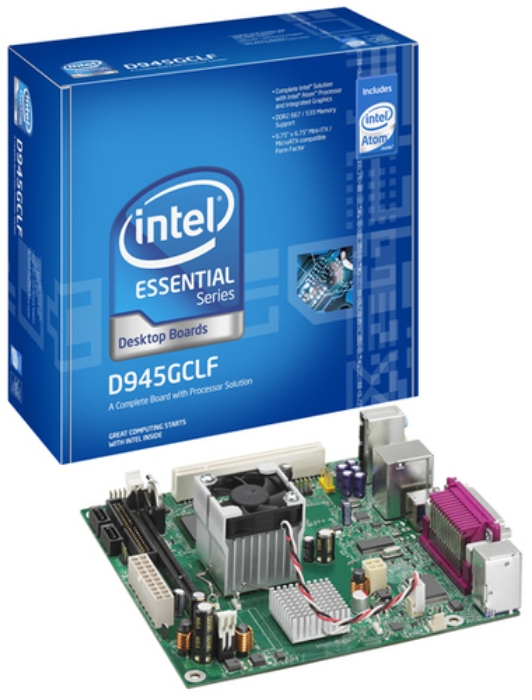

The Intel® Desktop Board D945GCLF is designed to support Internet-centric computing delivering incredible capabilities for the new flexible Mini-ITX form factor.
Featuring the integrated 45nm Intel® Atom™ processor and the Intel® 945GC Express Chipset, this board is an energy-efficient solution for home users as well as for unique vertical market needs. Designed with Intel's leading edge 45nm Hi-k metal gate processor, this board delivers incredible opportunities to communicate, listen, watch, play, and learn via Internet connectivity.
Viktiga egenskaper
Intel BOXD945GCLF. Processor manufacturer: Intel, Processor socket: Socket 945, Processor system buses supported: 533 MHz. Supported memory types: DDR2-SDRAM, Maximum internal memory: 2 GB, Memory channels: Single-channel. Networking features: 10/100 Mbits/sec. Motherboard form factor: mini ITX, Motherboard chipset family: Intel, Motherboard chipset: Intel® 82945GC. Graphics controller: Intel Graphics Media Accelerator 950, Maximum internal memory: 2048 MB, Export Control Classification Number (ECCN): 5A992
Teknisk specifikation
Processor
| Processor manufacturer | Intel |
|---|
| Processor socket | Socket 945 |
|---|
| Processor system buses supported | 533 MHz |
|---|
| Maximum internal memory supported by processor | 2 GB |
|---|
| ECC supported by processor | No |
|---|
| Product family | Desktop board |
|---|
| Product series | Legacy Intel desktop board |
|---|
| Product codename | Little Falls |
|---|
Memory
| Supported memory types | DDR2-SDRAM |
|---|
| Number of memory slots | 1 |
|---|
| Memory channels | Single-channel |
|---|
| Memory voltage | 1.8 V |
|---|
| Maximum internal memory | 2 GB |
|---|
Graphics
| On-board graphics card | Yes |
|---|
Internal I/O
| USB 2.0 connectors | 2 |
|---|
| Number of SATA connectors | 2 |
|---|
| Total number of SATA connectors | 2 |
|---|
| Number of Parallel ATA connectors | 1 |
|---|
Rear panel I/O ports
| USB 2.0 ports quantity | 4 |
|---|
| Ethernet LAN (RJ-45) ports | 1 |
|---|
| eSATA ports quantity | 0 |
|---|
| PS/2 ports quantity | 2 |
|---|
| Firewire (IEEE 1394) ports | 0 |
|---|
| VGA (D-Sub) ports quantity | 1 |
|---|
| HDMI ports quantity | 0 |
|---|
| DVI-D ports quantity | 0 |
|---|
| Microphone in | Yes |
|---|
| Parallel ports quantity | 1 |
|---|
| Serial ports quantity | 1 |
|---|
| Modem (RJ-11) ports | 0 |
|---|
Network
| Networking features | 10/100 Mbits/sec |
|---|
Features
| Motherboard form factor | mini ITX |
|---|
| Motherboard chipset family | Intel |
|---|
| Motherboard chipset | Intel® 82945GC |
|---|
| Audio chip | Realtek ALC662 |
|---|
| Power source type | ATX |
|---|
| Market segment | Desktop |
|---|
| Motherboard chipset ID | 34505 |
|---|
Expansion slots
| PCI Express x1 (Gen 2.x) slots | 0 |
|---|
| PCI Express x4 (Gen 2.x) slots | 0 |
|---|
| PCI Express x8 (Gen 2.x) slots | 0 |
|---|
| PCI Express x16 (Gen 2.x) slots | 0 |
|---|
Processor special features
| Intel® Active Management Technology (Intel® AMT) | No |
|---|
| Intel® Matrix Storage Technology (Intel® MST) | No |
|---|
| Intel Client Initiated Remote Access (CIRA) technology | No |
|---|
| Intel® High Definition Audio (Intel® HD Audio) | No |
|---|
| Intel® Anti-Theft Technology (Intel® AT) | No |
|---|
| Intel® Remote Wake Technology (Intel® RWT) | No |
|---|
| Intel Remote PC Assist Technology (RPAT) | No |
|---|
| Intel Virtualization Technology for Directed I/O (VT-d) | No |
|---|
| Intel Quiet System Technology (QST) | No |
|---|
| Intel Trusted Execution Technology | No |
|---|
| Intel Dual Display Capable Technology | No |
|---|
| Trusted Platform Module (TPM) | No |
|---|
Operational conditions
| Storage temperature (T-T) | -40 - 70 °C |
|---|
| Operating temperature (T-T) | 0 - 55 °C |
|---|
Logistics data
| Harmonized System (HS) code | 84733020 |
|---|
Other features
| Intel® vPro™ Platform Eligibility | No |
|---|
| Maximum internal memory | 2048 MB |
|---|
| Number of DIMM slots | 1 |
|---|
| CPU configuration (max) | 1 |
|---|
| Discrete graphics card model | N/A |
|---|
| Graphics controller | Intel Graphics Media Accelerator 950 |
|---|
| Commodity Classification Automated Tracking System (CCATS) | NA |
|---|
| Export Control Classification Number (ECCN) | 5A992 |
|---|
| Motherboard ARK ID | 42490 |
|---|
| Graphics output | VGA |
|---|
Technical details
| Form factor | Mini-ITX |
|---|
| Product type | Desktop board |
|---|
| Maximum memory | 2 GB |
|---|
| Supported RAID configuration | N/A |
|---|
| Status | Discontinued |
|---|
| Launch date | Q2'08 |
|---|
| Last change | 63903513 |
|---|
| PCI Support | 1 |
|---|
