Produktbeskrivning

Enhanced Power Loss Data Protection

Enhanced Power Loss Data Protection prepares the SSD for unexpected system power loss by minimizing data in transition in temporary buffers, and uses on-board power-loss protection capacitance to provide enough energy for the SSD firmware to move data from the transfer buffer and other temporary buffers to the NAND, thus protecting system and user data.

Hardware Encryption

Hardware encryption is data encryption done at the drive level. This is used to ensure that the data stored on the drive is secured from unwanted intrusion.

High Endurance Technology (HET)

High Endurance Technology (HET) in SSD's combines Intel® NAND Flash Memory silicon enhancements and SSD system management techniques to help extend the endurance of the SSD. Endurance is defined as the amount of data that can be written to an SSD during its lifetime.

Temperature Monitoring and Logging

Temperature Monitoring and Logging uses an internal temperature sensor to monitor and log airflow and device internal temperature. The logged results can be accessed using the SMART command.

End-to-End Data Protection

End-to-End Data Protection ensures integrity of stored data from the computer to the SSD and back.



Viktiga egenskaper

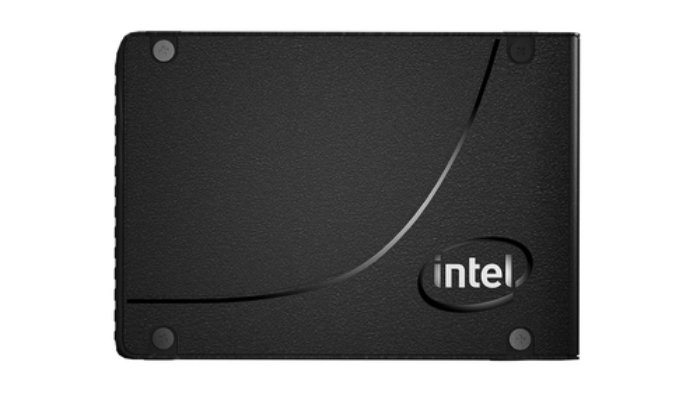

Intel Optane SSDPE21K750GA10. SSD capacity: 750 GB, SSD form factor: 2.5", Read speed: 2500 MB/s, Write speed: 2200 MB/s, Component for: Server/workstation



Teknisk specifikation

SSD capacity	750 GB
SSD form factor	2.5"
Interface	U.2
NVMe	Yes
Memory type	3D XPoint
Component for	Server/workstation
Hardware encryption	Yes
Security algorithms	256-bit AES
Read speed	2500 MB/s
Write speed	2200 MB/s
Random read (100% span)	550000 IOPS
Random write (100% span)	550000 IOPS
Read latency	10 µs
Write latency	10 µs
End-to-End Data Protection	Yes
Enhanced Power Loss Data Protection technology	Yes
SSD temperature monitoring	Yes
Uncorrectable Bit Error Rate (UBER)	< 1 per 10^17 bits read
Mean time between failures (MTBF)	2000000 h
Market segment	Server
SSD ARK ID	97154
Temperature monitoring and logging	Yes

Power consumption (read)	18 W
Power consumption (write)	18 W
Power consumption (idle)	6 W

Intel® Rapid Start Technology	No
Intel High Endurance Technology (HET)	Yes
Intel® Remote Secure Erase	No
Intel® Smart Response Technology	No
Intel Smart Response Technology version	0.00

Operating temperature (T-T)	0 - 70 °C
Minimum operating temperature	0 °C
Maximum operating temperature	70 °C
Operating vibration	2.17 G
Non-operating vibration	3.13 G
Operating shock	1000 G
Non-operating shock	1000 G
Operating / non-operating shock	1000 G/0.5 msec

Drive capacity	750 GB
Sequential writing speed	2200 MB/s
Remote Secure Erase (RSE) technology version	0.00
Intel Rapid Start Technology version	0.00
Last change	63903513
Status	Launched
Product brief URL	https://www.intel.com/content/www/us/en/solid-state-drives/optane-ssd-dc-p4800x-brief.html
SSD hardware encryption	AES 256 bit
SSD endurance rating	41.0 PBW (30DWPD), 82.0 PBW (60DWPD)
SSD power consumption (active)	18 W
SSD power consumption (idle)	6 W
Sequential reading	2500 MB/s
Launch date	Q4'17
SSD shock	1000 G/0.5 msec
Product family	Data center SSD
Product series	Intel® Optane™ SSD DC P4800X Series
Product codename	Cold Stream

Harmonized System (HS) code	84717070
